Qt8-15 Automatic Cement Sand Concrete Hollow Brick/Block Making Machine

Qingdao HF Machinery Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydroforming
  • Rated Pressure：21MPa
  • Cycle Time：15-25s

Base Info

  • Model NO.：QT8-15 Hollow Brick Machine
  • Power：55.5kw
  • Pallet Size：950X900mm
  • Vibration Force：100kn
  • Color：Blue or Customized
  • Name：Qt8-15 Automatic Concrete Paver Block Machinery
  • Transport Package：Container
  • Specification：9350x1860x3000mm
  • Trademark：HF
  • Origin：Shandong, China
  • HS Code：8474802000
  • Production Capacity：15000PCS,Day

Description

Basic Info.

Model NO. QT8-15 Hollow Brick Machine Power 55.5kw Pallet Size 950X900mm Vibration Force 100kn Color Blue or Customized Name Qt8-15 Automatic Concrete Paver Block Machinery Transport Package Container Specification 9350x1860x3000mm Trademark HF Origin Shandong, China HS Code 8474802000 Production Capacity 15000PCS/Day

Product Description

QT8-15 Fully Automatic Hydraulic Hollow and Paver Brick Block Making Machine  Siemens brand PLC control system / Siemens Motor / Omron Switch / International Standard Steel / Manganese steel mold
Qt8-15 Automatic Cement Sand Concrete Hollow Brick/Block Making Machine
 Product Introduction Technicals
ModelQT8-15
Rated pressure21Mpa
Dimension9350*1860*3000mm
Forming Cycle15-20s
Vibration formPlatform vibration
Weight9700kg
Power55.5kw
Vibration force100KN
Working area2000 sq.m
Pallet size950x900mm

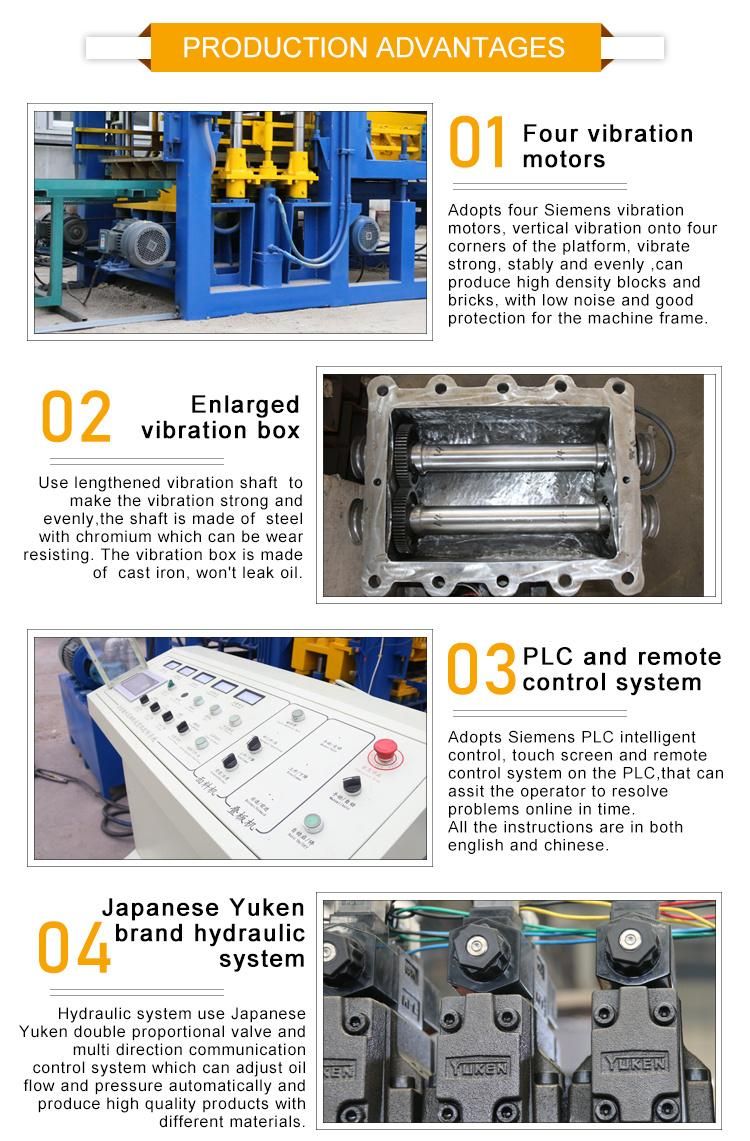

Machine Advantages                                                                                                  Qt8-15 Automatic Cement Sand Concrete Hollow Brick/Block Making Machine
Qt8-15 Automatic Cement Sand Concrete Hollow Brick/Block Making Machine

Block samples

Qt8-15 Automatic Cement Sand Concrete Hollow Brick/Block Making Machine

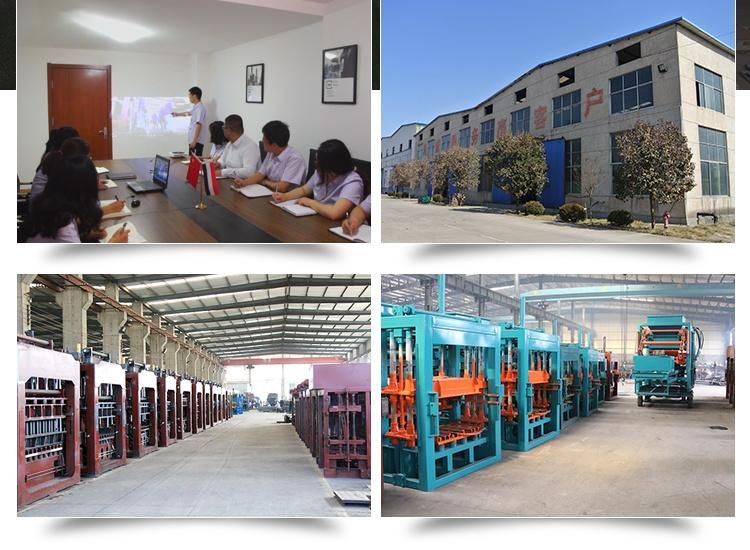

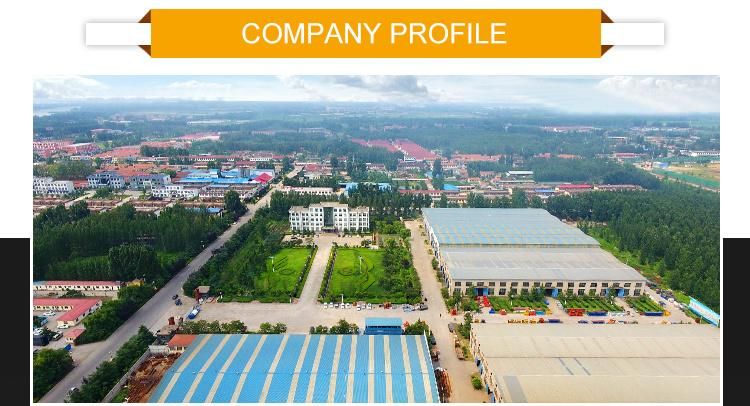

Our company
Qt8-15 Automatic Cement Sand Concrete Hollow Brick/Block Making Machine
Qt8-15 Automatic Cement Sand Concrete Hollow Brick/Block Making Machine
QINGDAO HF INDUSTRY CO.,LTD is the professional manufacturer and exporter for block machine technology.Our factory has three manufacturing bases that cover an area of 500 acresand a plant construction area of 100,000 square meters. We are always developing advanced products to international standards to meet consumer demands.
We had exported to more than 116 countries from the Philippines, Russia, Egypt, South Africa, Ghana,Oman, India, Armenia, Israel, Chile etc. and have an exceptional high reputation from our customers. We cooperate with SIEMENS for Motors and PLC intelligent control system, Schneider electrical equipment and YUKEN for the hydraulic operations to insure our machines have the highest quality standrads with a stable working status.We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the machine and perfrom the proper training abroad.
We warmly welcome clients from all over the world to visit our factory ,
