Fly Ash Cement Hollow Concrete Solid Brick Machine Price

Linyi ShengMing Machinery Co., Ltd.
  • After-sales Service：Supply Instruction, Installation Video
  • Warranty：2 Years
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Semiautomatic
  • Type：Vibration Molding

Base Info

  • Model NO.：QTJ4-35
  • Model：Qtj4-35
  • Shaping：Vibration
  • Capacity：1500-2000PCS,Day
  • Power：9.3kw
  • Pressure：16MPa
  • Pallet Size：850X450mm
  • Weight：1100kgs
  • Dimension：1550X1650X1800mm
  • Pallet Quantity：500-600pieces
  • Water Consumption：2-4t,Day
  • Workshop Area：40m2
  • Power Voltage：3800V,220V,AC
  • Labor Quantity：2-4 People
  • Forming Period：35-40s
  • Mixer：Jq350
  • Transport Package：Naked in Container or LCL
  • Specification：1550× 1650× 1800mm
  • Trademark：shengming
  • Origin：Linyi
  • HS Code：8474802000
  • Production Capacity：1500-2000pieces,Day

Description

Total rated power15.9KWWorkshop area40M2Daily capacity1500-2500 piecesPower voltage380V/220V/ACPallet quantity500-600 piecesLabor quanity2-4 peopleWater consumption2-4T/dayForming period35-40S
Fly Ash Cement Hollow Concrete Solid Brick Machine Price

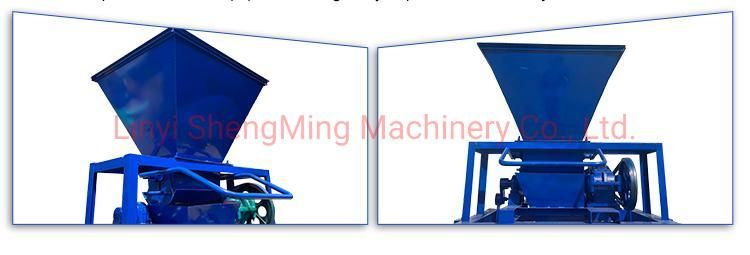

1. The storage hopper is designed to replace manual feeding and greatly reduce the working intensity.

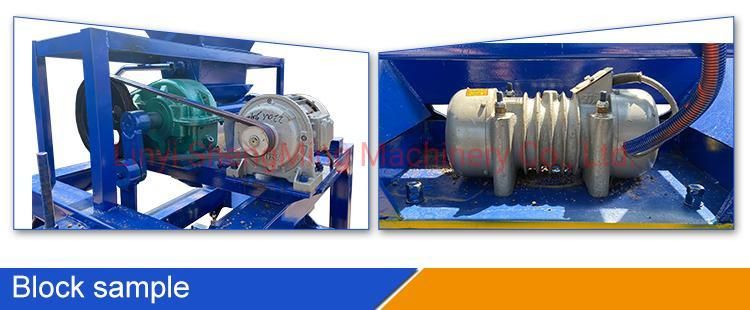

Fly Ash Cement Hollow Concrete Solid Brick Machine Price2. The motor pushes and pulls the mold, which is convenient and convenient.
Fly Ash Cement Hollow Concrete Solid Brick Machine PriceFly Ash Cement Hollow Concrete Solid Brick Machine PriceProduction Capacity
 Size(LxWxH)mmPiece/moldPiece/HourPiece/8 hours400x200x200mm42001600400x150x200mm52502000400x100x200mm73002400200x100x60mm147005600225x112.5x60126004800

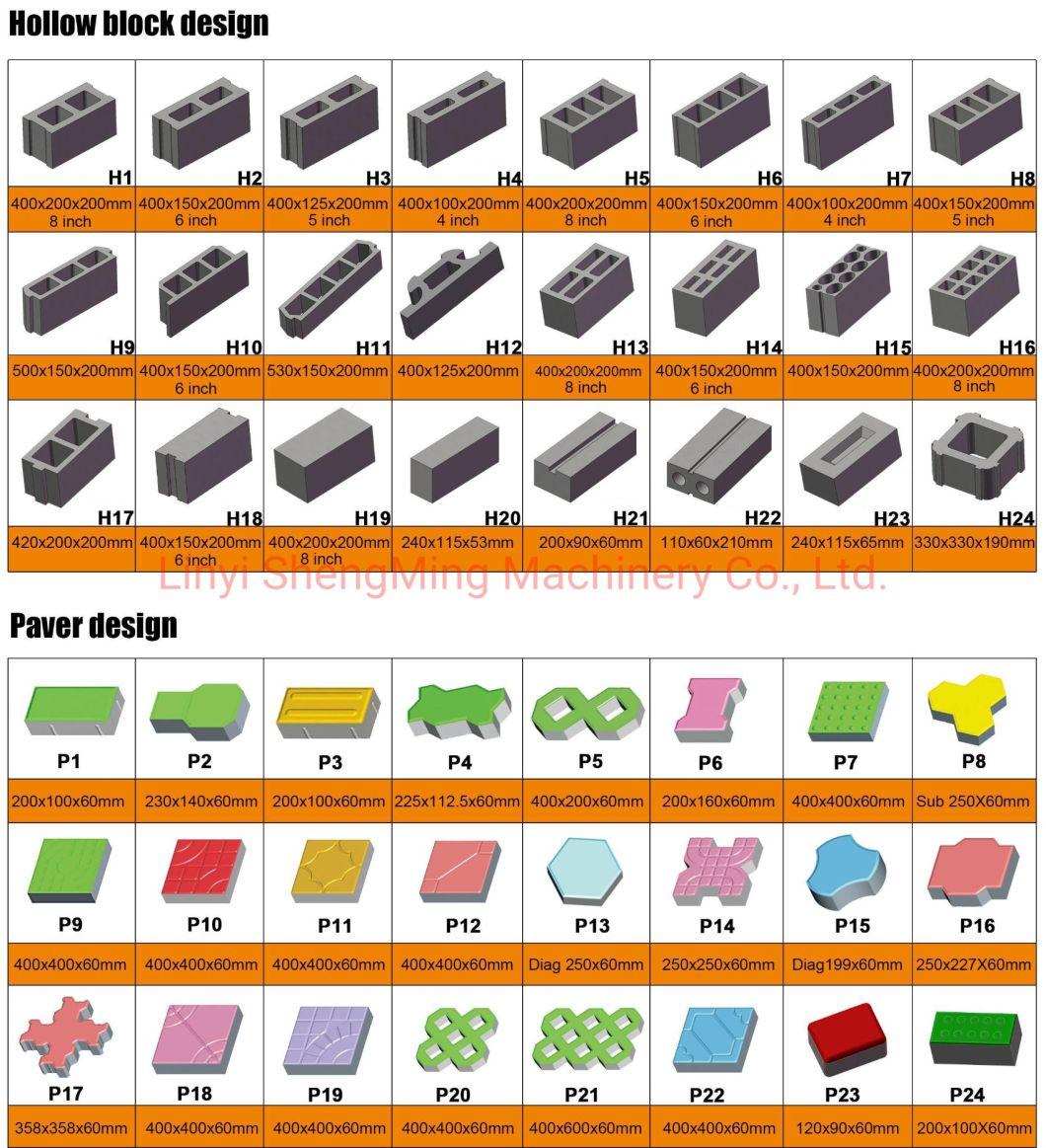

Finshed Block Showing

Fly Ash Cement Hollow Concrete Solid Brick Machine Price

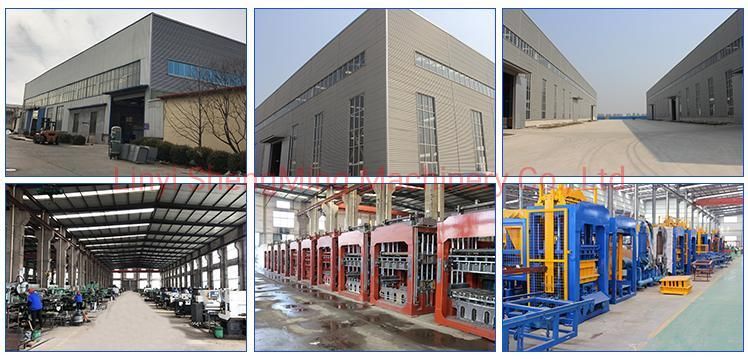

Established in the year 1990,we are a prominent organization engaged in manufacturing and supplying
Block machine,batching plant and concrete pole machine, extensively used in field of infrastructure and
real estate development.
Fly Ash Cement Hollow Concrete Solid Brick Machine PriceFly Ash Cement Hollow Concrete Solid Brick Machine PriceFly Ash Cement Hollow Concrete Solid Brick Machine PriceFly Ash Cement Hollow Concrete Solid Brick Machine Price

FAQ:
Q: What is the material for this machine ?
A: You can use lateriate or other clay material or concrete material, plus a little cement

Q: How many kinds of block can be made by this machine ?
A: By changing mold, this machine can make all type design brick ,block or even paver.

Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally

Q: Will you provide spare parts for this machine ?
A: We will provide you one year free spare parts.can support machine working for many years

Q:Will you provide installation support?
A: We will provide installation video and manual book.online video avaiable also.

Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.
