Roof Panel Standing Seam Making Machine Self Lock Seam Lock Metal Roofing Machine

General Industry Tech Hebei Developing Co., Ltd.
  • After-sales Service：Video Techenical Support
  • Warranty：2 Year
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：ztrfm
  • Usage：Roof, Wall
  • Transmission Method：Chains
  • Name：Metal Roof Panel Forming Machinery
  • Shaft Material：45# Steel
  • Diameter of Shaft：80mm
  • Roller Material：45#, 40cr
  • Structure：Middle Steel Plate
  • Basic Frame：400h Steel
  • Raw Material：Gi,Gl,PPGI,PPGL
  • Thickness of Raw Material：0.3-0.8mm
  • Cutting Type：Hydraulic Cutting
  • Blade Material：Gcr12 Queched, HRC 58-62
  • Hydraulic Oil：46# Oil
  • Hydraulic Power：4kw
  • Main Motor Power：5.5kw
  • Voltage：380V,50Hz,3phase
  • Width：1200mm
  • Transport Package：Standard Packing
  • Specification：9500*1450*1500
  • Trademark：ZTRFM
  • Origin：Botou, Hebei, China
  • HS Code：8474801
  • Production Capacity：300 Sets,Year

Description

Main motor power5.5KWRoller material40CrRoller shaft material45# steelWork speed0-20 m/minDimesion7500*1650*1500mmStructureMiddle plate welded frame structureMain frame4000 H steel weldedDrive modeChains driveControl systemPLC control systemHydraulic station4kwCutting typeHydraulic cuttingCutter materialGCr12 chromed and quenched for good hardness and using
Working flow
Roof Panel Standing Seam Making Machine Self Lock Seam Lock Metal Roofing Machine

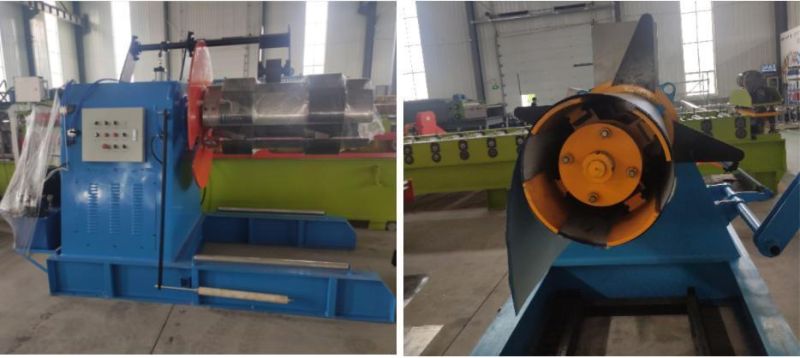

1.Hydraulic Decoiler work type: hydraulic usage: to support the coil and make the uncoiling capacity: 5 tonsinner diameter: 450-550mmcoil width: 1250mm
Roof Panel Standing Seam Making Machine Self Lock Seam Lock Metal Roofing Machine

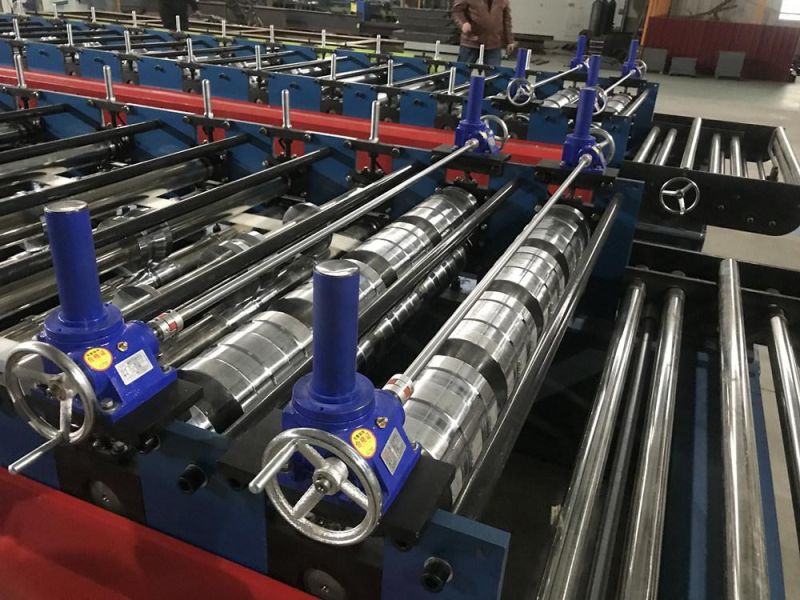

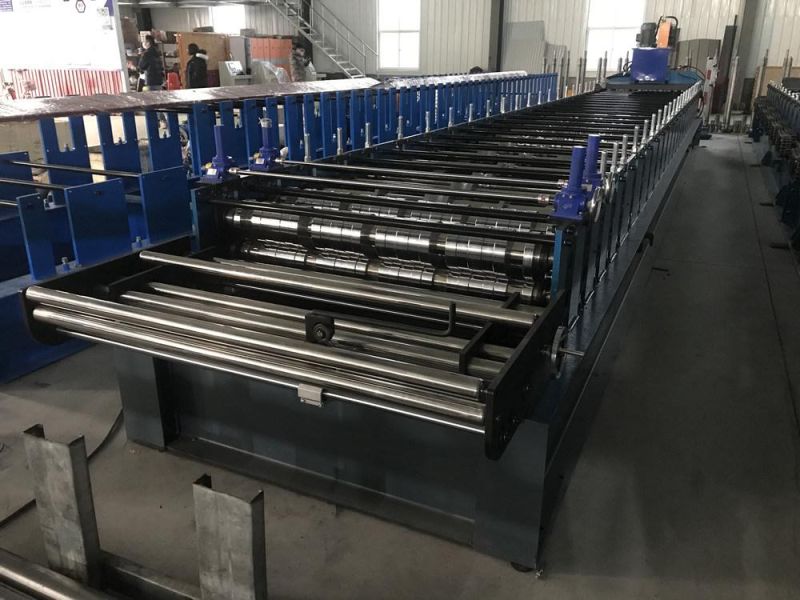

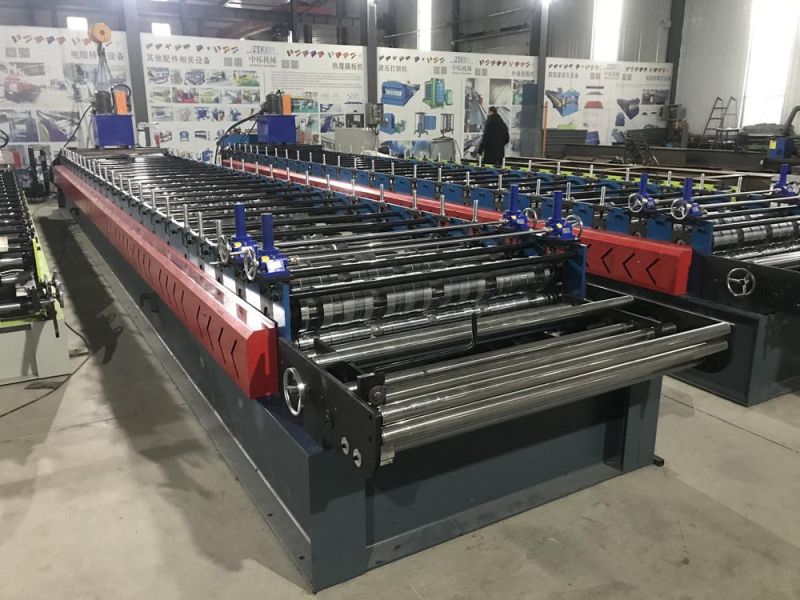

2.Main roll forming machineFeeding device: With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers. Machine frame: 350H steel welded Machine structure: middle plate Roller station: 15 stationsRoller material: 45# steel withquenched treatment and hard chroming Shaft diameter: 80mm,solid Shaft material: 45# steel with tempering treatment Motor power:5.5 kw Speed: 0-20m/min Transmission: By chains Voltage: 380V,50HZ,3PhaseRoof Panel Standing Seam Making Machine Self Lock Seam Lock Metal Roofing Machine
Roof Panel Standing Seam Making Machine Self Lock Seam Lock Metal Roofing Machine
Roof Panel Standing Seam Making Machine Self Lock Seam Lock Metal Roofing Machine

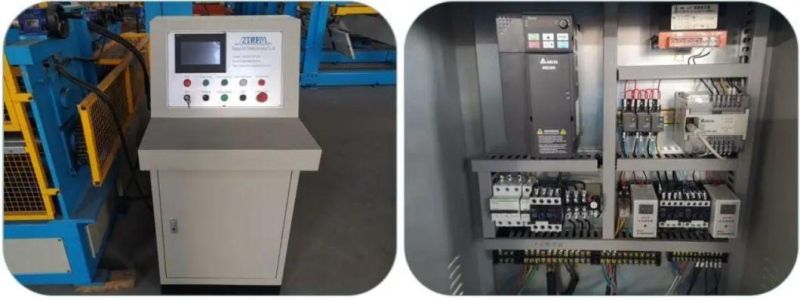

3.PLC control stationPLC brand: Delta from Taiwan Frequency converter brand: Delta from Taiwan Encode: Omron Function: Automatic control the length,quantity and batchRoof Panel Standing Seam Making Machine Self Lock Seam Lock Metal Roofing Machine
4.Hydraulic cutting systemBlade material: Cr12,with quenched treatment Motor power: 4 kw Cutting tolerance: +/-1 mm Cooling system: with cooling fan Cutting type: Hydraulic cutting Feature: Low noise and high performance
Roof Panel Standing Seam Making Machine Self Lock Seam Lock Metal Roofing Machine

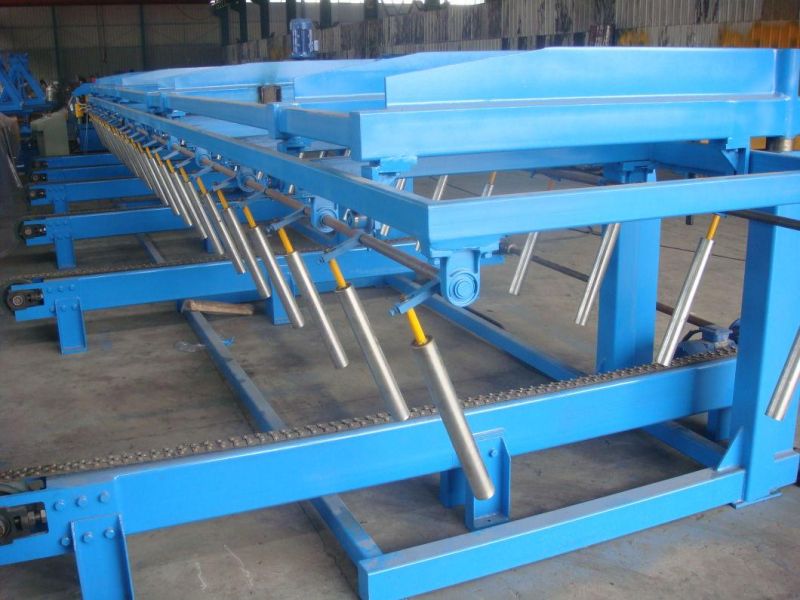

Automatic stackerLength: 3m,6m,9m,12mRoof Panel Standing Seam Making Machine Self Lock Seam Lock Metal Roofing Machine

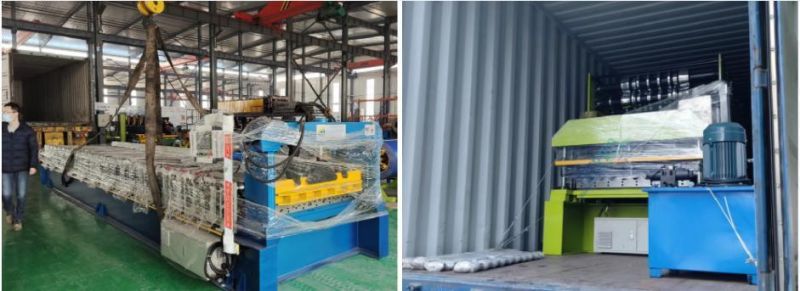

Feedback from customers
