• Model NO.：DX 830
• Color：Blue
• Machine Name：Profile Forming Machine
• Roller Material：High Grade 45# Steel
• Control System：PLC Computer
• Hydraulic Pump Station：3kw
• Electric Motor：3kw
• Voltage：380V, 3phase, 50Hz
• Middle Plate：14mm
• Main Frame：300h Steel
• Forming Steps：11
• Transport Package：Covered with Plastic Film
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：845522
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. DX 830 Color Blue Machine Name Profile Forming Machine Roller Material High Grade 45# Steel Control System PLC Computer Hydraulic Pump Station 3kw Electric Motor 3kw Voltage 380V, 3phase, 50Hz Middle Plate 14mm Main Frame 300h Steel Forming Steps 11 Transport Package Covered with Plastic Film Specification CE, SGS Trademark DIXIN Origin Botou, Hebei, China HS Code 845522 Production Capacity 30 Sets/Month

Product Description

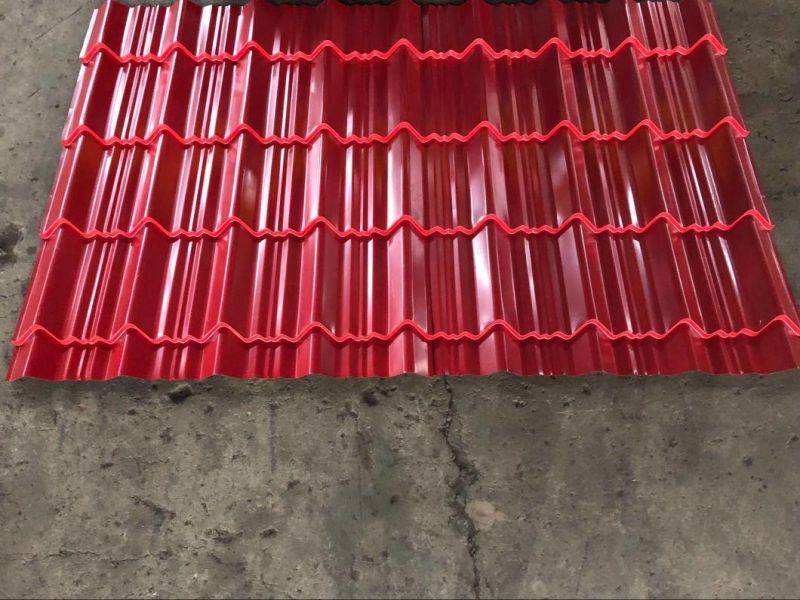

Dixin Steel Sheet Glazed Tile Profile Roll Forming MachineApplication:Color steel sheet which are produced by our roll forming machine are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. With advantages of long life time, stable performance and high efficiency, it is warmly welcomed by our customers.
Working flow :

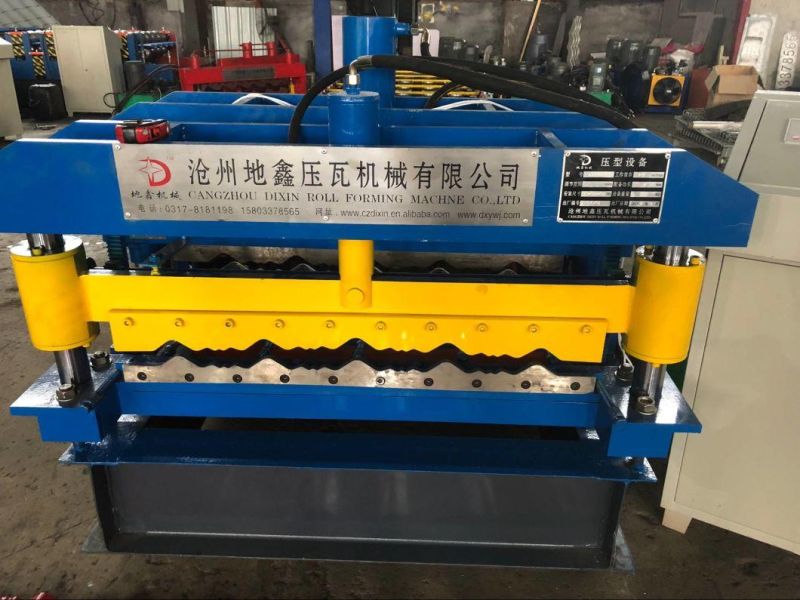

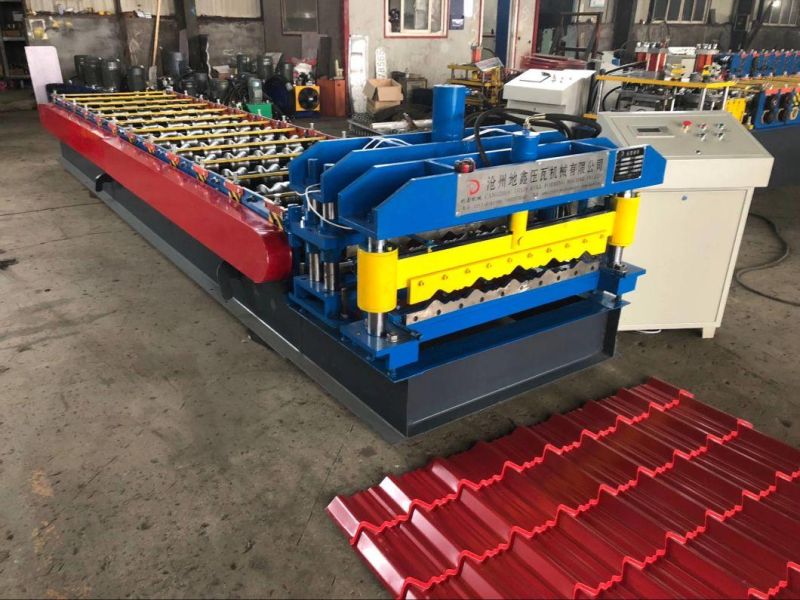

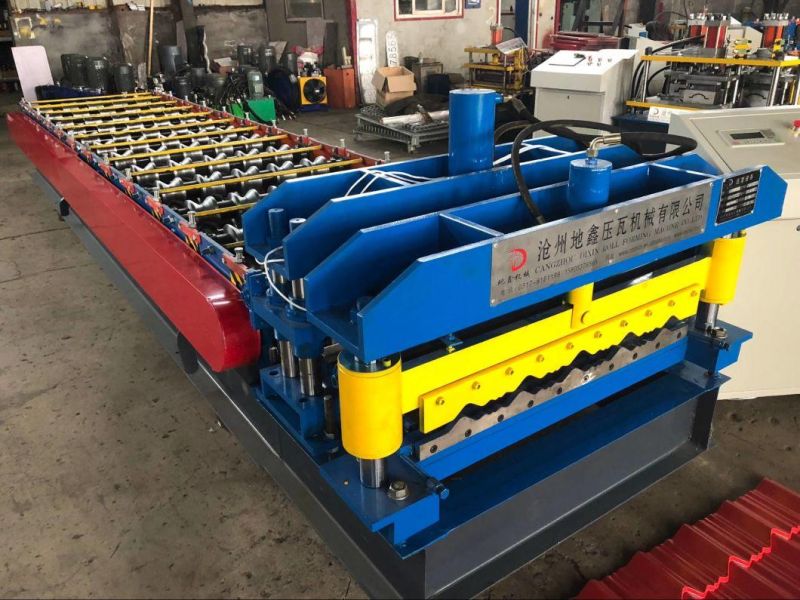

1.Some machine pictures for your reference.











2.Equipment detailed parameters:

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.3-0.8mm
3.Feeding width:	1000mm
4.Effective width	820mm
5.Main motor power	4kw
6.hydraulic pump power	4kw
7. Shaft diameter	75mm
8.Forming steps	13steps
9.Main frame	300H Steel frame
10. Side plate thickness	16mm

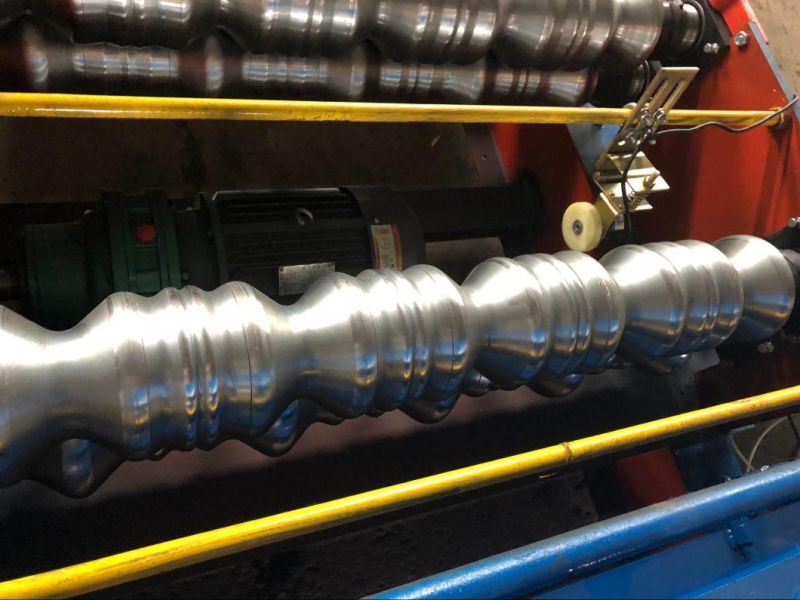

11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	PLC control system with touch screen
13.Cutting blade material	Cr12
14.Working speed	About 10-12m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 6800*1500*1400mm
17. Machine weight	About 2.5ton
18.Power supply	380v,3phase,50hz or accodring to customer request

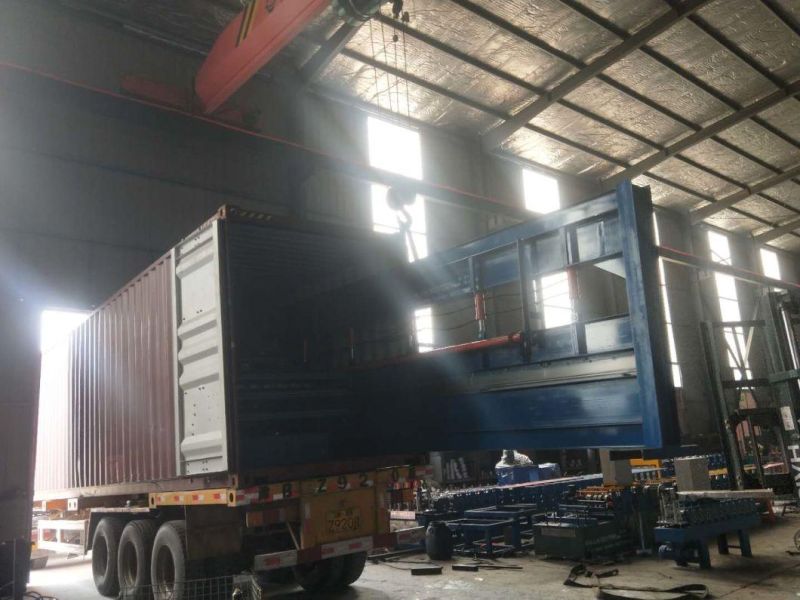

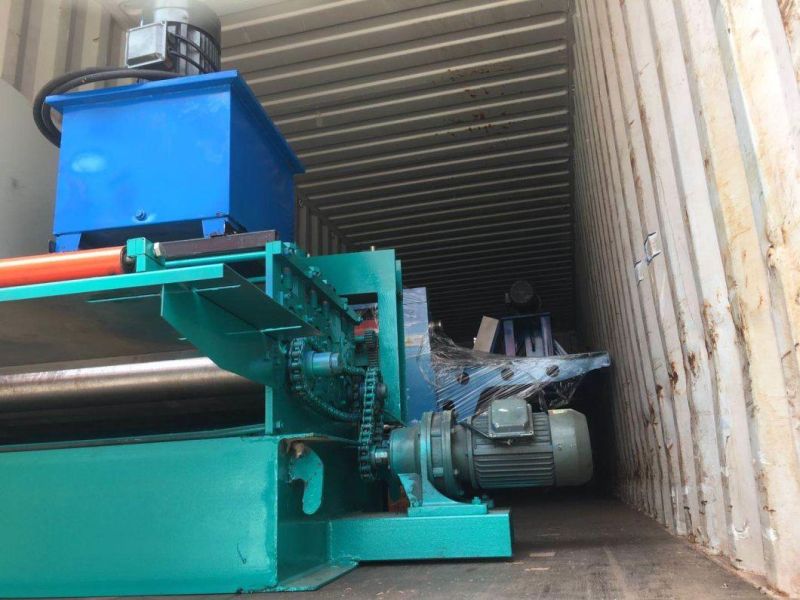

3.Packing and shipping details
* 20 feet or 40 feet GP container.
* Main machine naked and fastened with iron wire in the container.
* Rollers were painted with painted with oil and packed with plastic film.
* Control box will be packed with carton box.
* Main roll forming machine package by plastic film.
* Main machine spare parts package by paper box.
* We have professional technicians for loading. Guaranteed the goods load into container without any damage.
* Transportation :machine need one 40 feet container to hold
* Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

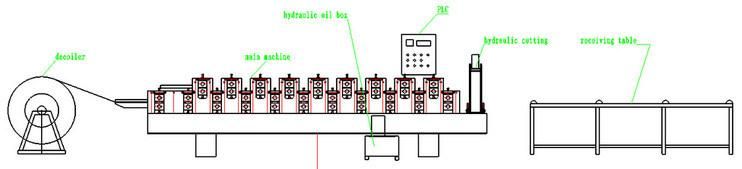

Roll forming machien components:Man-made decoiler---Color steel coil feeding & guiding device---Main forming machine---Computer Control system---Hydraulic pump station---Cutting head---Output table
   Our service:1. We provide 1 year warranty for our customers.2. Any parts damaged because of quality problem will be changed for free within the first year.3. Technical support is provided for free in the whole life of the machine.
FAQ:1. What's your payment terms?T/T, 30% T/T in advance and balance 70% after testing confirm well before shipping.2. The delivery time?We deliver the machine within 30 days after receiving the deposit.3. What services do you provide?We provide our customers with 1 year warranty and technical support in the whole life time of the machine.    DIXIN have a professional design team, can manufacture machine exactly according to customer's requirement.Recently, our roll forming machine have been exported to more than 40 countries and regions over the world.And maintained good cooperate relationship with customers. To ensure the production of top quality precision gears, our manufacturing techniques are upgrated constantly. If you need our roll forming machine, pls don't hesitate to contact me. We can design according to your requirements. Looking forward to cooperate with you sincerely!


If you want to get more information about our equipment ,
Please feel free contact Nancy
