PVC Window Door Four Corner Welding Machine with CNC Control

Shandong Truetec Machinery Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • Automatic Grade:Automatic
  • CNC or Not:CNC
  • Voltage:380V
  • Input Power:7kw

Base Info

  • Model NO.:CSHP4-CNC-3000A
  • Air Pressure:0.4~0.6MPa
  • Air Consumption:200L,Min
  • Welding Height:25~160mm
  • Welding Width(Max.):130mm
  • Welding Range:400*400~1800*3000(mm)
  • Weight:3000kg
  • Transport Package:1.Simple Stretch Film Packaging; 2.Professional E
  • Specification:5000*2000*2860mm
  • Trademark:Truepro
  • Origin:Jinan, Shandong
  • Production Capacity:10 Set,Sets Per Month

Description

Basic Info.

Model NO. CSHP4-CNC-3000A Air Pressure 0.4~0.6MPa Air Consumption 200L/Min Welding Height 25~160mm Welding Width(Max.) 130mm Welding Range 400*400~1800*3000(mm) Weight 3000kg Transport Package 1.Simple Stretch Film Packaging; 2.Professional E Specification 5000*2000*2860mm Trademark Truepro Origin Jinan, Shandong Production Capacity 10 Set/Sets Per Month

Product Description

PVC Window Door Four Corner Welding Machine with CNC ControlPVC Window Door Four Corner Welding Machine with CNC Control

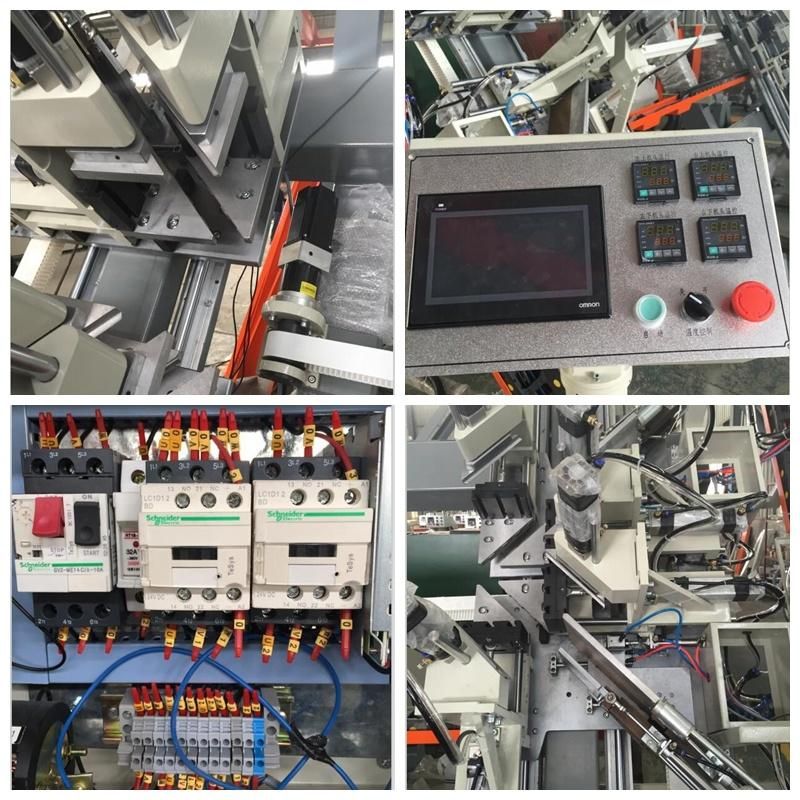

Detailed Information

Main Feature:

1.Use for corner punching combination of aluminum window&door,four corners connecting at one time is available.
2.Clamping device can auto move forward/backward,making the operation convenient.
3.The frame is specially jointed by steel with high quality and special process.
4.The CNC system imported from MTSUBISHI JANPAN,with high quality ensures the speed and accuracy.
5.The moment control function of the service system can auto-press the four corners ensuring the processing effect.
6.The corner-crimping blade can be adjusted according to the requirement of different profile.
7.One time corner crimping can control the seam and plane,make the quality foresight.
8.The control system and servo system make the connect no seam and improve the control accuracy.

Main Technical Parameter:

Brand nameTRUEPROModel Clm4-100*1800*3000
Voltage380V/220VRating power7.5kw
Rating oil pressure15MPaAir consumption pressure0.5-0.8MPa
Air consumption0.45L onceCapability of oil box60L
Corner crimping casing movement distance0-50mmMax frame dimension1800*3000mm
Min frame dimension480mm*480mmProfile width93mm
Tolerance of diagonal≤1mmTolerance of connection seam≤0.15mm
Overall dimension4700*2200*2500mmWeight2500kg

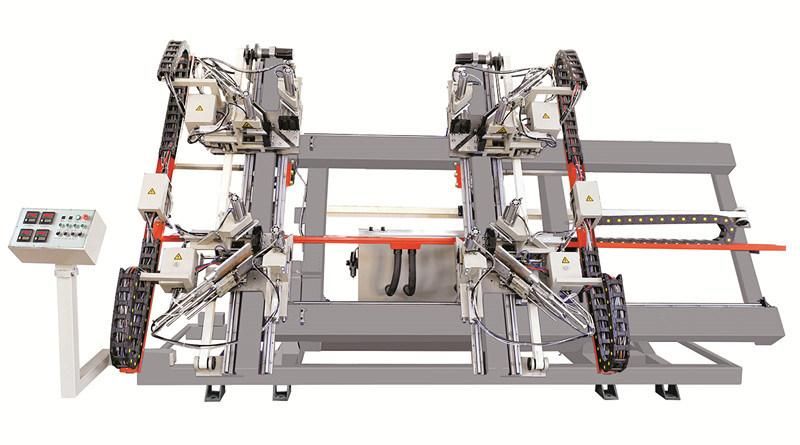

PVC Window Door Four Corner Welding Machine with CNC Control

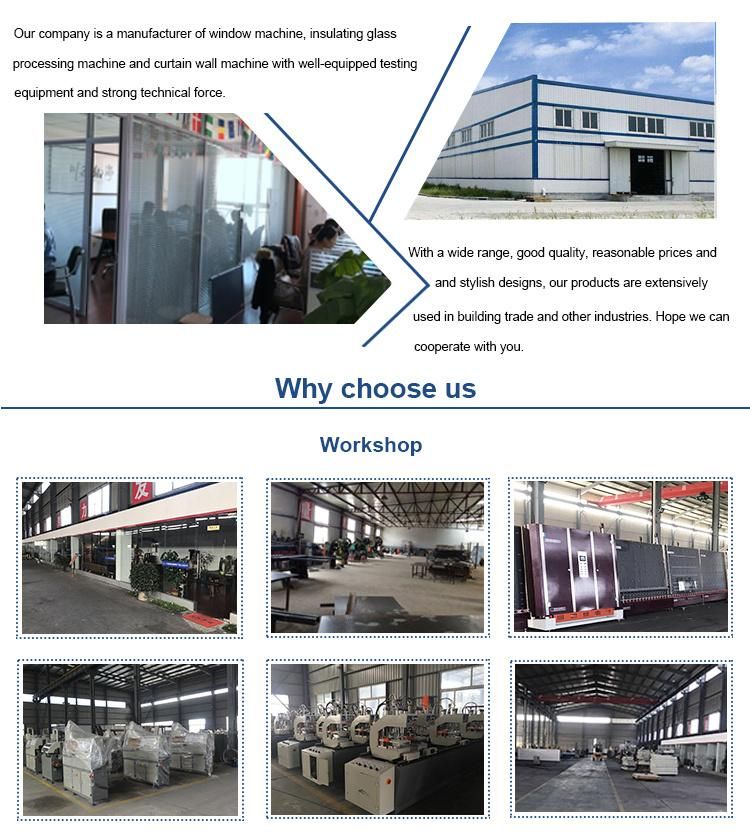

Company Information
PVC Window Door Four Corner Welding Machine with CNC Control
PVC Window Door Four Corner Welding Machine with CNC ControlPVC Window Door Four Corner Welding Machine with CNC Control

FAQ

1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.


2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines


3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment,
and operation training. All of our engineers have passport.

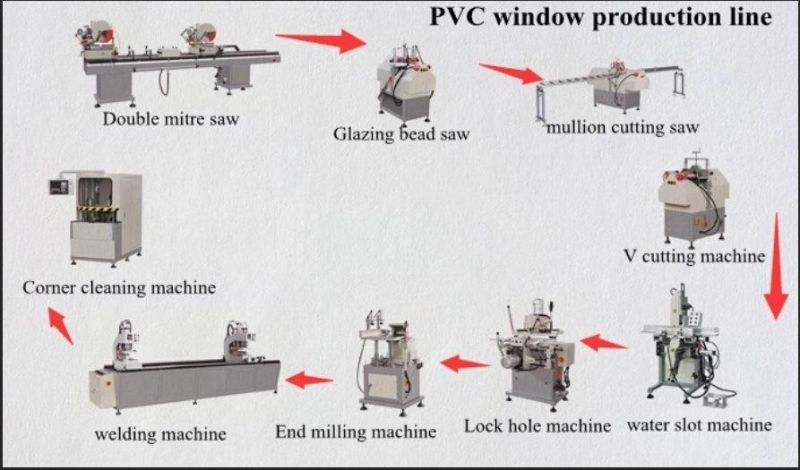

PVC window production line:
PVC Window Door Four Corner Welding Machine with CNC Control
