• Model NO.：800-2400
• Power(W)：55kw
• Voltage：380V
• Diameter Transformer：Automatic
• Control System：PLC Digital Control System
• Transport Package：Accoring to Customer′ Requirement
• Trademark：WEIZIMAN
• Origin：Danyang, China
• HS Code：8464909000
• Production Capacity：6-10,Hour

Equipment model
 XM800-2400XM1350-3000XM1350-4000
Production diameter
 φ800-φ2400φ1350-φ3000φ1350-φ4000
Production length
 2M, 2.5M, 3M
Production tube type
 bell & spigot, tongue & groove, steel bellmouth
Special shaped pipe can be produced
 box culvert, manhole, pipe with pedestal
Compatible Culvert
 φ1600x1600φ2200x2200φ2800x2800


Component & Function

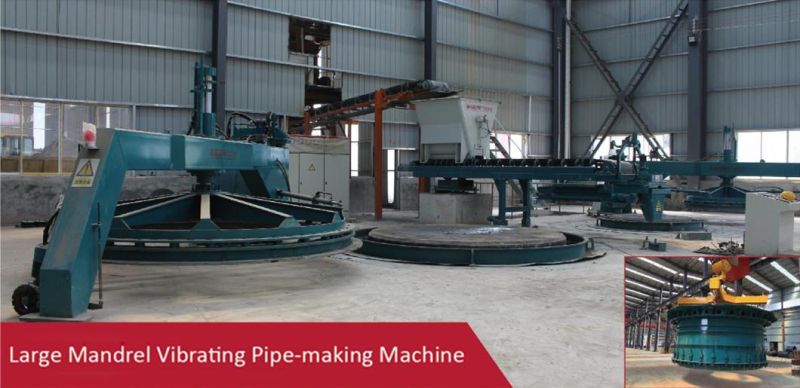

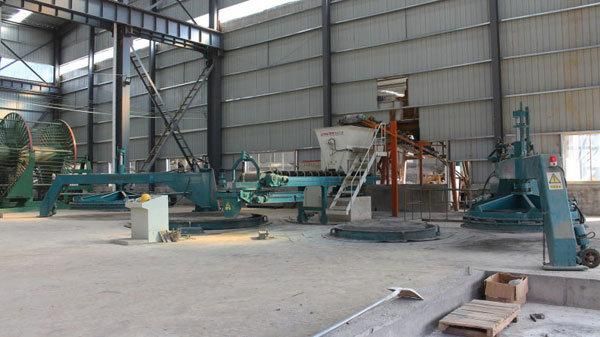

This equipment combined with main frame, pipe mould, core vibrator, chassis, automatic feeding system, hydraulic rotary presser system, electric control system etc.

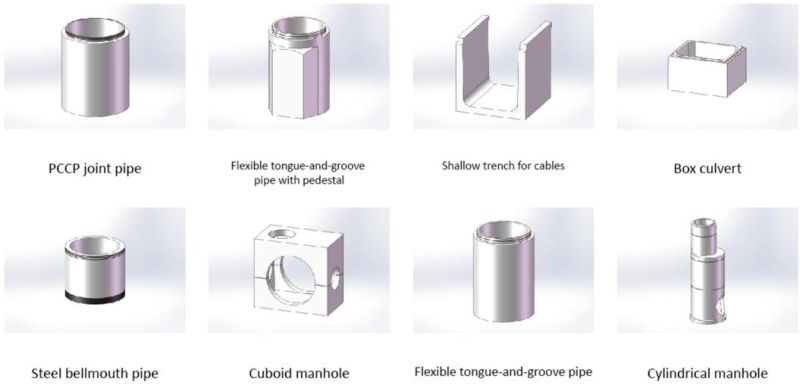

Core mould vibrating pipe making machine can produce PCCP joint pipe, Flexible tongue-glove pipe with/without pedestal, Steel bell-mouth pipe, Cuboid manhole, Box culverts, Shallow trench for cables, cylindrical manhole and a variety form of drainage pipe.



Advantage Technology

The vibrating pipe machine is a new technology with higher mechanization and automatization. vibrating technology of the cement pipe mould, the forming machine is placed in the ground, for the vertical production, the steel mould is a closed structure which is combined with the whole inner mold and the whole outer mold. The vibration energy used for compacting is derived from the whole central oscillator of the large excitation force, and the central vibrator is fastened on the inner core mould by the hydraulic device, which can realize the quick change of mould,completely solve the ring hollow structure problem of horizontal production is easy to fall, suitable for large diameter or the production of large caliber cement products.

The vibration frequency and vibration force of the vibrator can be adjusted according to the different product specifications. Each kind of specification only needs one set of mold, through the vibration roller compaction, after the product molding immediately demoulding, guarantees the quality while, the production efficiency also greatly enhances. With its special advantages and performance, and gradually become more and more popular in the pipe industry.


Product Features

1. Highly mechanized and automated production with high production efficiency and less labor occupation;
2. Output is not limited by the number of models;
3. One specification product is produced by one set of models with extremely high product accuracy;
4. The use of rigid concrete reduces the use of cementing materials and the cost;
5. Hard concrete, high-frequency vibration molding, concrete does not occur lamination and segregation, pipe concrete high strength, good uniformity;
6. After molding, immediately release the mold, and the number of models is small, which greatly reduces the input and use cost of the model;
7. Adopt natural or low temperature (30, 40ºC) steam curing method to save energy;

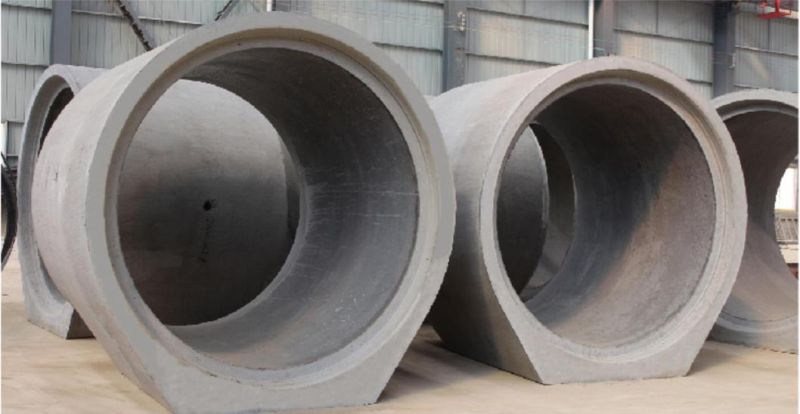

8. Can be formed with a base and non-circular reinforced concrete pipe;
9. Improved production environment, low labor intensity and civilized production;
10. Can produce inner wall Mosaic corrosion plastic film pipe, simple process;
11. Less process, broken process production line, less auxiliary hoisting equipment;
12. No production of wastewater mud, industrial waste residue is less.





Company Introduction

Our company is specialized in the whole set of equipment of the core mould vibration cement product, radial extraction equipment, Pipe gallery, assembly inspection wells, steel rolling machine and the research and development of all kinds equipment of automation for producing cement products and the manufacturing company.

There is an experienced team that takes care of every process for design, production and quality control and dedicated to providing the clients with excellent work. With business philosophy of "Quality First, Client Oriented", we are striving for building a reputable brand of Boonai by following the steps of the giants for the innovation of products and the improvement of process and pursuing the perfection on every detail.

A sophisticated sales net has been built for domestic market and shall be expanded beyond with our products accessing the market of North America, North Europe and Middle East etc.
