• Model NO.：ST01
• Voltage：No Need Electricity
• Application：Coating The Silicone Sealant on Ig
• Max Rate：6:1-14:1
• Base Bucket：200L
• Curative Agent Bucket：20L
• Max Buytl Squeezing Pressure：20MPa
• Air Supply Pressure：0.5-0.8MPa
• Weight：600kg
• Transport Package：by Non-Fumagation Plywoodcase
• Specification：Machine size: 1200x1100x2500mm
• Trademark：MAG
• Origin：Jinan
• HS Code：84752990
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. ST01 Voltage No Need Electricity Application Coating The Silicone Sealant on Ig Max Rate 6:1-14:1 Base Bucket 200L Curative Agent Bucket 20L Max Buytl Squeezing Pressure 20MPa Air Supply Pressure 0.5-0.8MPa Weight 600kg Transport Package by Non-Fumagation Plywoodcase Specification Machine size: 1200x1100x2500mm Trademark MAG Origin Jinan HS Code 84752990 Production Capacity 100 Sets/Year

Product Description

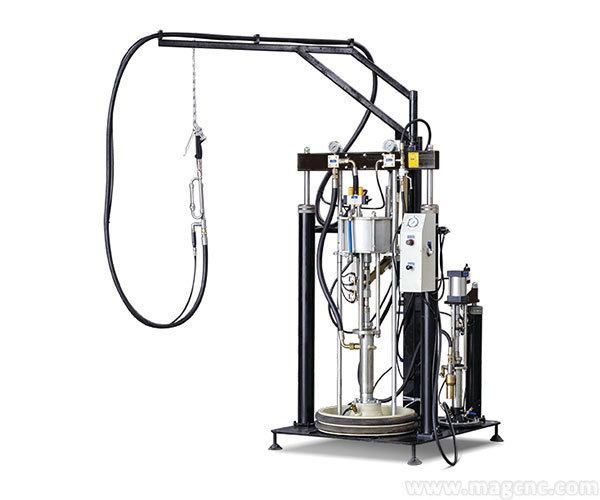

  Double Glazing Making Equipment Silicone Sealant Extruding Machine


Features:
1-This extruder is the special machine for spreading double-component sealant.
2-It is full pneumatic type and do not need electric supply, can be easy to move and operation in the building site.
3-Easy operation, easy maintenance, stable working, high efficiency, It can suit the request of insulating glass and glass curtain wall batch production.
4-The main parts is from world known brand, the key mechanism parts is high strength stainless steel after heat treatment process from refining, thus to assure the machine good quality.
5-Take stainless straight flow type mixer, with small resistance, big output quantity.
6-Main motor take double pneumatic controlling system, to make the machine low malfunction and more stable.
7-There is alarm system, when any of A, B is not available, it will alarm automatically to remind the
operator.
8-Rubber mixing system take hanging device, to decrease the labor intensity.
9-There are two seals for the B rubber, to decrease the leakage of B rubber pressure plate.
10-With 2 filters before high pressure system, to avoid the dust into high pressure system, to make sure for the machine stability.
11-Compared with the hydraulic type, this model is quick speed, low failure rate.

Technical parameters:

Brand	MAG
Model	ST01
Mixing Ratio	6:1--14 :1
Basic Component Bucket	55 Gallon(200L)
Hardener Bucket	5 Gallon(20L)
Max Air Consumption	1.0m3/min
Sealant Air Pressure Rate	50:1
Max Squeezing Pressure	29Mpa
Air Pressure	0.5--0.8Mpa
Outside Dimension	1100*950*1630mm
Weight	650kg

Machine photos


Factory photos
