• Model NO.：DX 1100-220-28
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Machinery
• Type：Steel Tile Forming Machine
• Power Source：Hydraulic Pressure
• Feature：High Efficiency
• Advantage：Use Widely
• Warranty：12 Months
• Forging Forming Method：Mold Forging
• Name：Dx Aluminium Step Tile Machine
• Rolled Material：0.3-0.8mm Thickness
• Shaft Material：High Grade No.45 Carbon Wrought Steel
• Cutting Blade：Cr12 Mould Steel with Quenched Treatment

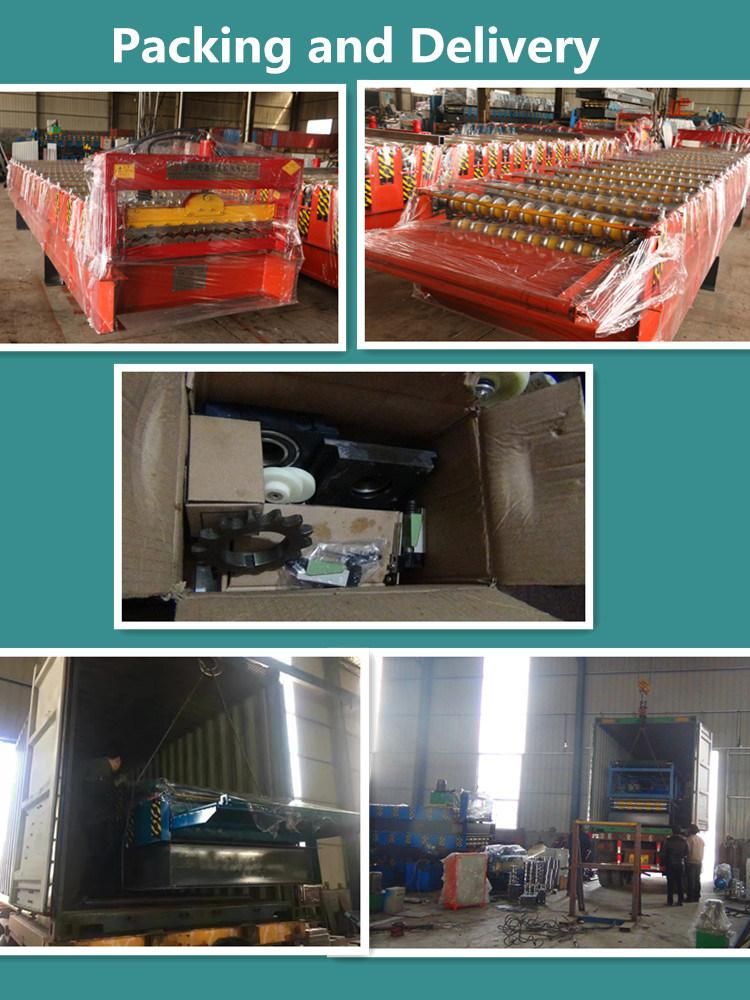

• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX 1100-220-28
• Trademark：DX
• Origin：Botou Hebei China
• HS Code：84552210
• Production Capacity：20 Set Per Month

Basic Info.

Model NO. DX 1100-220-28 Customized Customized Usage Roof, Wall Transmission Method Machinery Type Steel Tile Forming Machine Power Source Hydraulic Pressure Feature High Efficiency Advantage Use Widely Warranty 12 Months Forging Forming Method Mold Forging Name Dx Aluminium Step Tile Machine Rolled Material 0.3-0.8mm Thickness Shaft Material High Grade No.45 Carbon Wrought Steel Cutting Blade Cr12 Mould Steel with Quenched Treatment Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX 1100-220-28 Trademark DX Origin Botou Hebei China HS Code 84552210 Production Capacity 20 Set Per Month

Product Description

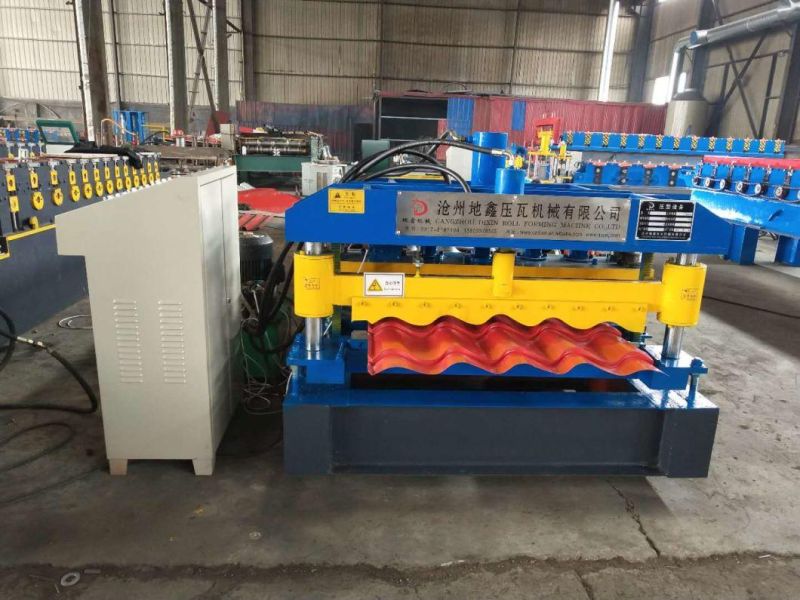

1100 Galvanized Steel Step Tile Roll Forming Machine

2.Technical parameters:
1. material spec: colored steel sheet, galvanized steel sheet, aluminium sheet
2. thickness of coil sheet: 0.3-0.8mm
3. roller material: high grade NO.45 forged steel, with hard chrome plating on the surface of roller with thickness 0.05mm
4. shaft material: high grade NO.45 carbon wrought steel
5. cutting blade: Cr12 mould steel with quenched treatment
6. diameter of shaft: 75mm
7. thickness of medium plate: 16mm
8. main frame: 300H/U steel
9. number of forming steps: 15rows
10. productivity: 8-12m/min
11. main motor power: 4kw
12. hydraulic station power: 4kw
13. hydraulic pressure: 10-12MPa
14. controlling system: PLC computer control
15. Voltage: 380V 3Phase 50Hz or at buyer's requirement

 3.Consist of machineUncoiler-Roll forming machine-PLC system-Hydraulic system-Mold pressing machine-Post cut

4.Company Introduce:

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

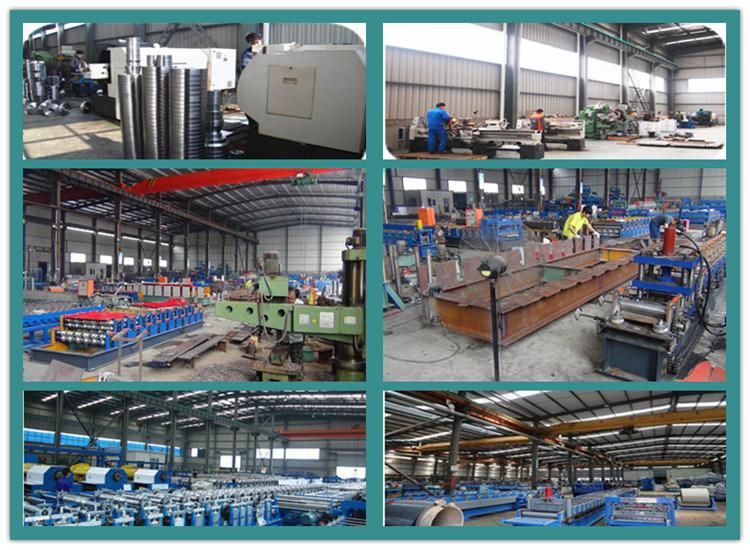

Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China.

Our Services

after-sale service

one year warrantly and lifelong technical suport will be kind and

effective provided.

on-site service We have professional foreign trade and design team. Now we moved to our new factory, expand scale, improved technology, all kinds of roll forming machine can customized, so just send your panel profile and real enquiry to me.

we can send our technicians to you to give you onsite training. The training period

would be for no more than one week with the customer paying for the visa, return

ticket, food, accommodations and a daily wage of USD 50.


We can also offer you the colored steel coil and galvanized coil,it is cheaper,you can shipping them together
We have professional foreign trade and design team. Now we moved to our new factory, expand scale, improved technology, all kinds of roll forming machine can customized, so just send your panel profile and real enquiry to me.

FAQ1. Q: Are you manufacture or trrading company?

    A: We are manufacture who was signed in 2008. And our boss has ten years' experience in machinery.
2. Q: When did u start producing roll forming machine?
A: Our company was signed in 2008, and our boss has ten years' experience of machinery.
3. Q: Why should I choose you?
 A: We have years' experience to design and provide lower price for customer.
4. Q: How many kinds of products do you produce?A: We have produced dozens shape of panels including trapizoid, glazed, roof ridge and door panel, and so on for customers during last years. We also provide EPS and rock wool panel line.
5. Q: Where is your factory located? How can I visit there?A: Our factory is located in Botou, Hebei province. We could pick you up from Cangzhou Station or Beijing airport when you come.

Tel:
008618231723279

1	NAME	DX1100 roofing tile roll forming made in china
2	APPLICATION	roll forming machine used for producing metal roof panel
3	MATERIAL SPEC	colored steel sheet, galvanized steel sheet, aluminium sheet
4	THICKNESS OF COIL	0.3-0.8 mm
5	ROLLER MATERIAL	high grade NO. 45 forged steel, with hard chrome plating on the surface of roller withthickness 0.05 mm
6	SHAFT MATERIAL	high grade NO. 45 carbon wrought steel
7	CUTTING BALDE	Cr 12 mould steel  with quenched treatment
8	DIAMETER OF SHAFT	70mm
9	THICKNESS OF MEDIUM PLATE	14mm
10	MAIN FRAME	300  H-steel
11	NUMBER OF FORMING STEPS	13 rows
12	PRODUCTIVITY	10-12 m/min
13	MAIN MOTOR POWER	3000w
14	HYDRAULIC STATION POWER	3000w
15	HYDRAULIC PRESSURE	10-12 MPa
16	CONTROLLING SYSTEM	PLC computer control
17	APPEARANCE SIZE	6200mm*1400mm*1500mm
18	TOATL WEIGHT	2600 kg
19	VOLTAGE	380V 3 Phase or up to you
20	COLOR	blue or green
21	PACKING	waterproof package
