2 Years Warranty CNC Vertical Four-Point Corner Crimping Machine
JINAN YUEFENG MACHINERY CO., LTD.- Condition:New
- Certification:ISO, CE
- Automatic Grade:Automatic
- CNC or Not:CNC
- Voltage:380V
- Model:Lm4-CNC-1800*3200A
Base Info
- Model NO.:LM4-CNC-1800*3200A
- Input Voltage:380V 50Hz
- Input Power:7.5kw
- Air Pressure:0.5~0.8MPa
- Air Consumption:0.45L,Min
- Oil Capacity:40L
- Profile Width:100mm
- Max. Dimension:1800*3200mm
- Min. Dimension:500*500mm
- Overall Dimension:4500*2000*2600mm
- Transport Package:Wooden Box
- Specification:4500*2000*2600mm
- Trademark:YueFeng
- Origin:China
- HS Code:8477800000
- Production Capacity:40 Window Per Day
Description
Basic Info.
Model NO. LM4-CNC-1800*3200A Input Voltage 380V 50Hz Input Power 7.5kw Air Pressure 0.5~0.8MPa Air Consumption 0.45L/Min Oil Capacity 40L Profile Width 100mm Max. Dimension 1800*3200mm Min. Dimension 500*500mm Overall Dimension 4500*2000*2600mm Transport Package Wooden Box Specification 4500*2000*2600mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per DayProduct Description

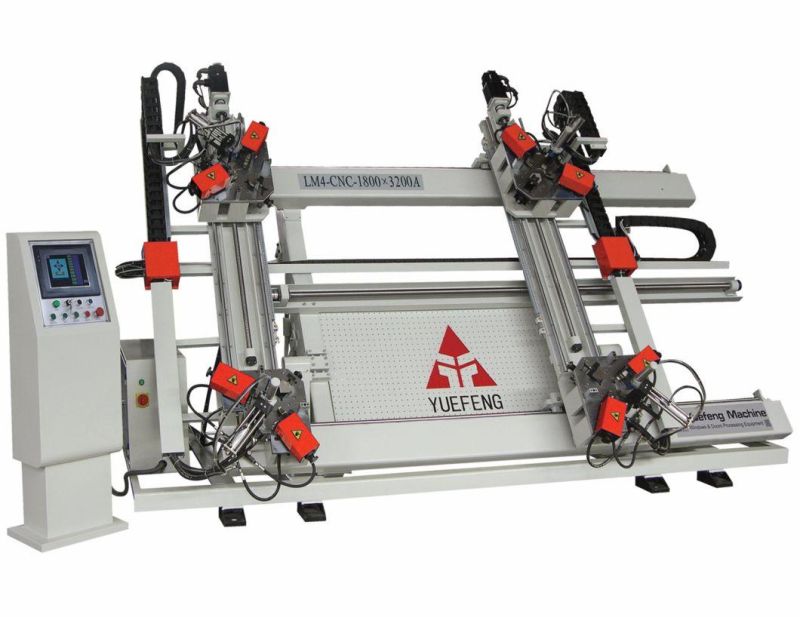

CNC Vertical Four-point Corner Crimping Machine

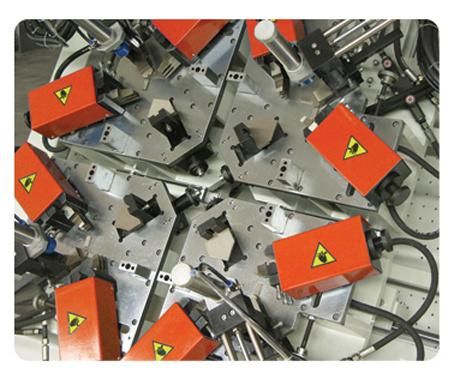

Used for corner punching and riveting combination, four corners connecting at one time punching is available.
Clamping device can move front and back automatically, easily operation.
Wide profile processing range due to convenient corner combining cylinder setting.
Helical pitch ball screw controls head feeding, results high accuracy.

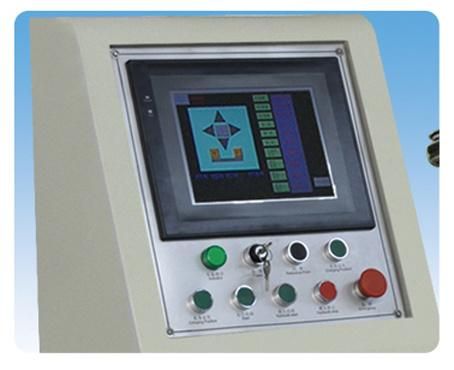

OMRON CNC system adopted , which include PLC, touched screen, servomotor, and
servodriver, photo electrical switch, and photo electrical cells etc. Complete OMERON unit results high accuracy.
Technical Parameter:
Model | LM4-CNC-1800×3200A |
Input voltage | 380V 50Hz |
Input power | 7.5Kw |
Hydraulic pressure | 15Mpa |
Air pressure | 0.5~0.8MPa |
Air consumption | 0.45 L/TIME |
Oil capacity | 40L |
Profile width | ≤100mm |
Max. dimension | 1800×3200mm |
Min. Dimension | 500×500mm |
Overall dimension | 4500×2000×2600mm |





1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.
2.After an order is placed, when to deliver?
♦ Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;
♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.
♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?
♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
