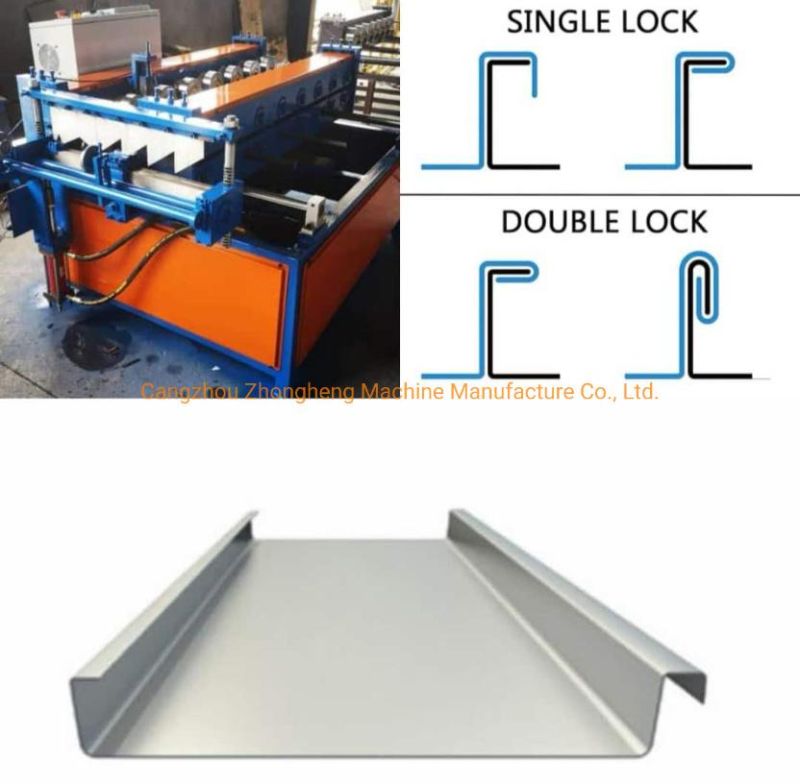

Portable Standing Seam Steel Metal Roof Roll Forming Machine
Cangzhou Zhongheng Machine Manufacture Co., Ltd.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
Base Info
- Model NO.：ZH400
- Warranty：2 Years
- Production Speed：10-15m,Min
- Rolling Thickness：0.3-0.6mm
- Roller Material：45# High Quality Steel
- Cutting Blade Material：Cr12
- Voltage：380V 50Hz 3phase
- Control System：PLC Control
- Shaft Diameter：70mm
- Shaft Material：45#Steel
- Structure：350 H Beam
- Wall Panel Thickness：16mm
- Transport Package：Naked with Plastic Film Cover
- Specification：3800mm*1.55mm*1.3mm
- Trademark：ZHONGHENG
- Origin：China
- HS Code：8455221000
- Production Capacity：50 Sets ,Months
Description
Size
(2000-2300)*1200*1200mm
Weight
800-1000KGS base on the design
Voltage
380V/50HZ/3PH or base on cutomer requirement
Motor Power
2.2KW
Hydraulic Power
2.2KW
Forming Steps
6-9steps base on the design
Forming Steel Thickness
0.5-1.0mm
Forming Aluminum Thickness
0.7-1.2mm
Height of Roofing
25mm and 38 mm or base on customer design
Effective Width of Roofing
230mm - 530mm
Material Width
310mm - 610mm
Tolerance
±2mm
Roller material
High grade 45# forged steel, Plated hard chrome and polished all the rollers
Material of principal axis
High grade 45# forged steel
