Building Material Making Machinery

Home > Product > Brick Making Machine

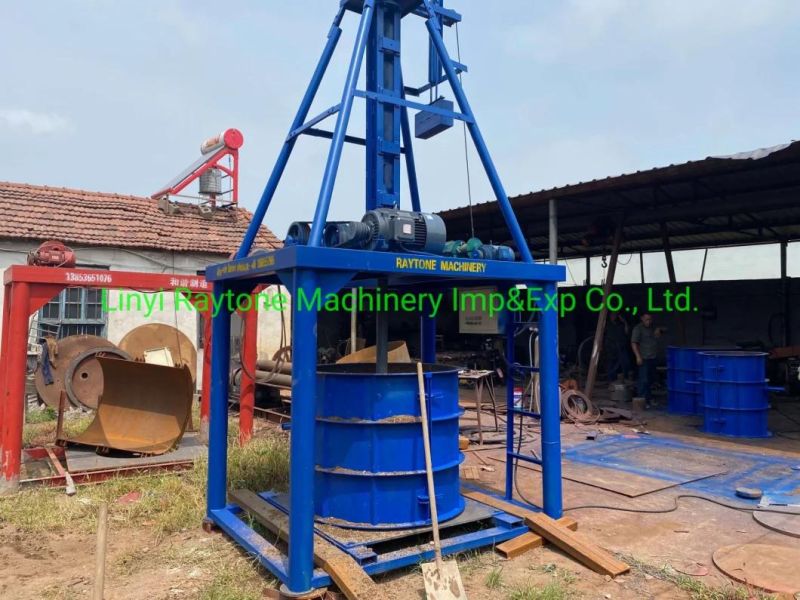

Qt-120 Manual Concrete Pipe Making Machine

Linyi Raytone Machinery Imp&Exp Co., Ltd.
  • Customized：Customized
  • Automatic Grade：Semiautomatic
  • Type：Vibration Molding
  • Machine Size：2200*2000*4150mm
  • Machine Weight：1500kg
  • Daily Capacity：100 Piece Per Day

Base Info

  • Model NO.：QT-120
  • Transport Package：Suitable for Shipping
  • Specification：QT-120
  • Trademark：Raytone Machinery
  • Origin：Linyi, Shandong
  • HS Code：84748090
  • Production Capacity：10 Set Per Month

Description

Pipe Mould Diameter (Inside mm)φ200φ300φ400φ500φ600φ700φ800φ1000Accordingly Wall Thickness30mm30mm40mm50mm60mm70mm80mm100mmmotor Power18kwSpeed of main shaft45r/minReducer Rate1:5.8(ZQ250)Molding Cycle5-10 min(depends on the dimension)Max Pressure:110TProductivity100 pieces /shiftWhole Weight1500kg(except mould)Whole Dimension2200*2000*4150mmMachine Weight:1.5 tonQt-120 Manual Concrete Pipe Making MachineQt-120 Manual Concrete Pipe Making Machine



(4) Manual Trolley

Function: used to carry the formed concrete pipe to the curing area.

3. QT-120 Concrete pipe making machine working video

4. Daily capacity of QT-120 concrete pipe making machine

Qt-120 Manual Concrete Pipe Making MachineQt-120 Manual Concrete Pipe Making Machine

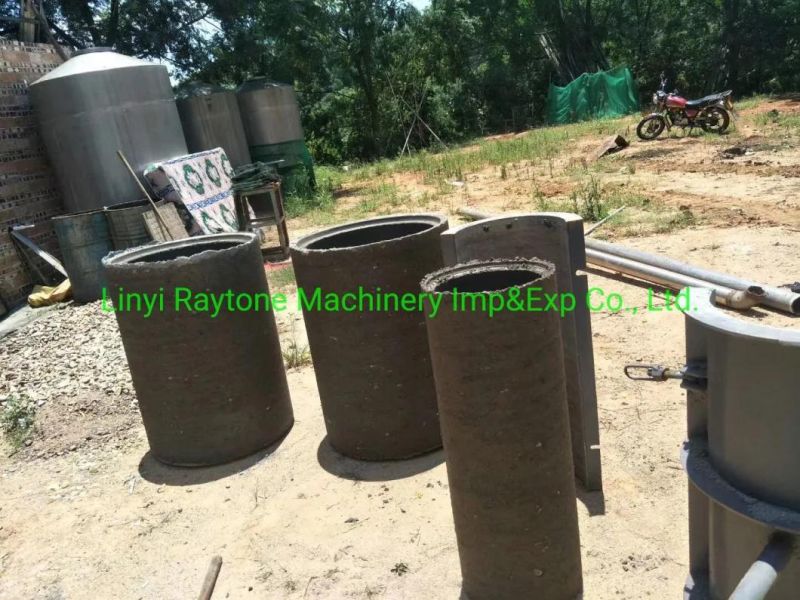

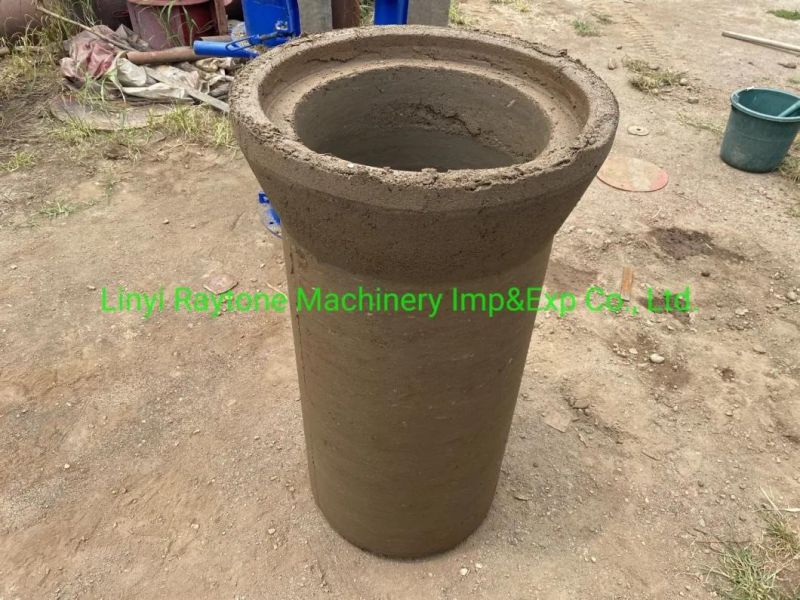

5. Pipes made from QT-120 Concrete pipe making machine

These pipes are widely used in the farm irrigation, sewage pipe, drain pipes;

6. QT-120 Concrete pipe making machine packing list

Qt-120 Manual Concrete Pipe Making MachineQt-120 Manual Concrete Pipe Making Machine

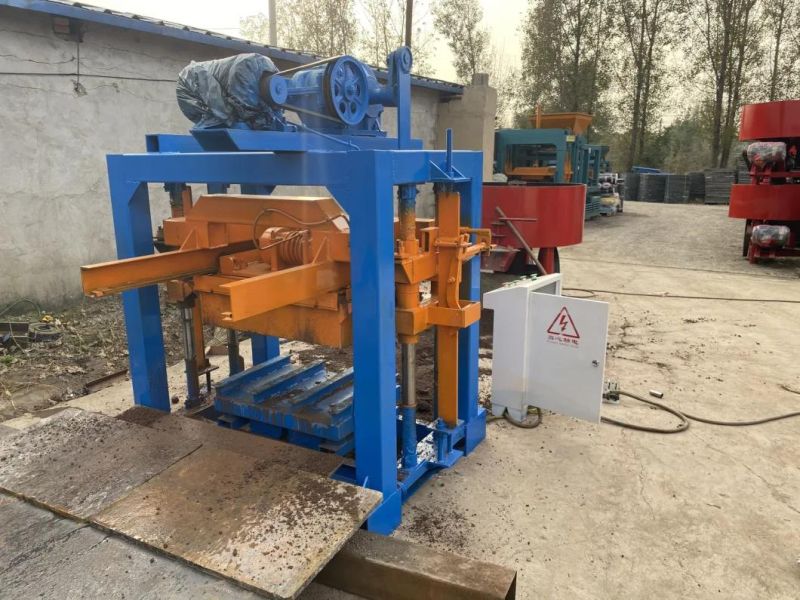

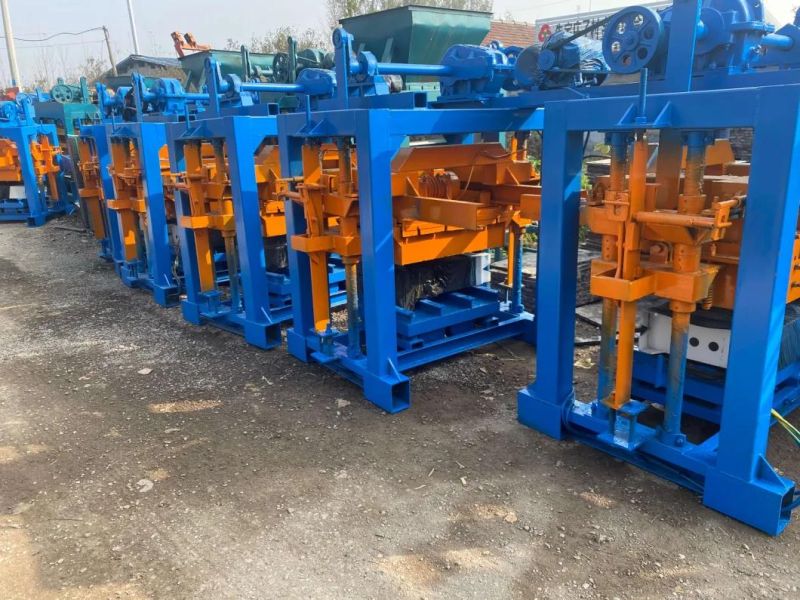

QT4-35 Manual Brick Making Machine

Qt-120 Manual Concrete Pipe Making MachineQt-120 Manual Concrete Pipe Making Machine





Please contact RAYTONE cement pipe making machine supplier for further business.
