Tr4 Tr 5 Double Layer Roll Forming Machine Double Deck Roll Forming Machine

Cangzhou Zhongheng Machine Manufacture Co., Ltd.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Electric

Base Info

  • Model NO.：Tr4
  • Warranty：2 Years
  • Production Speed：10-15m,Min
  • Rolling Thickness：0.3-0.6mm
  • Roller Material：45# High Quality Steel
  • Cutting Blade Material：Cr12
  • Voltage：380V 50Hz 3phase
  • Control System：PLC Control
  • Shaft Diameter：70mm
  • Shaft Material：45#Steel
  • Structure：350 H Beam
  • Wall Panel Thickness：16mm
  • Transport Package：Naked with Plastic Film Cover
  • Specification：7800mm*1.55mm*1.3mm
  • Trademark：ZHONGHENG
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：50 Sets ,Months

Description

Suitable materialPPGI,Aluzinc ,GIMaterial thickness0.3mm-0.6mmMaterial width 1200mmMain motor5.5kwCutter motor4kwForming Stations 16 staions / 16 stations

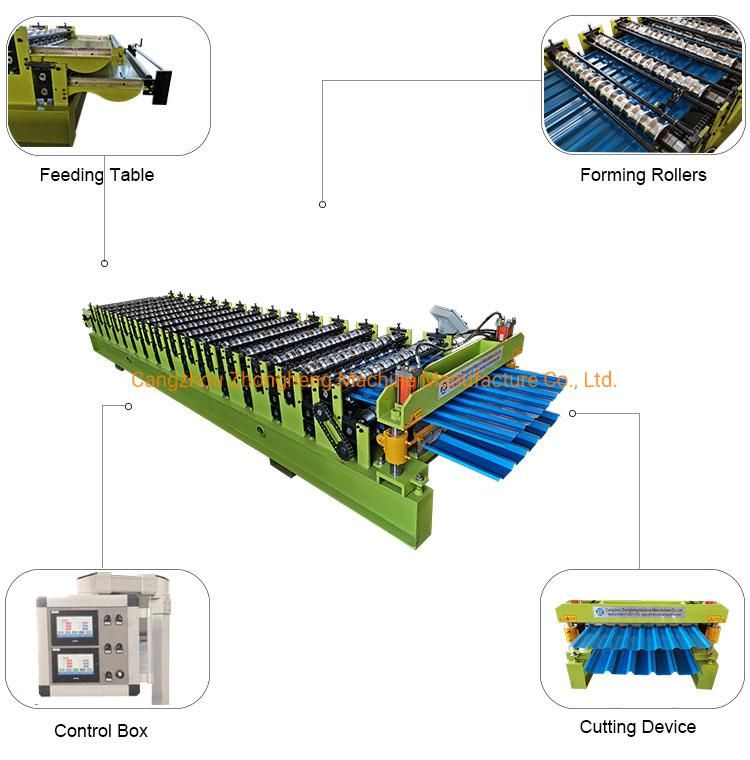

Detailed Image
Tr4 Tr 5 Double Layer Roll Forming Machine Double Deck Roll Forming Machine

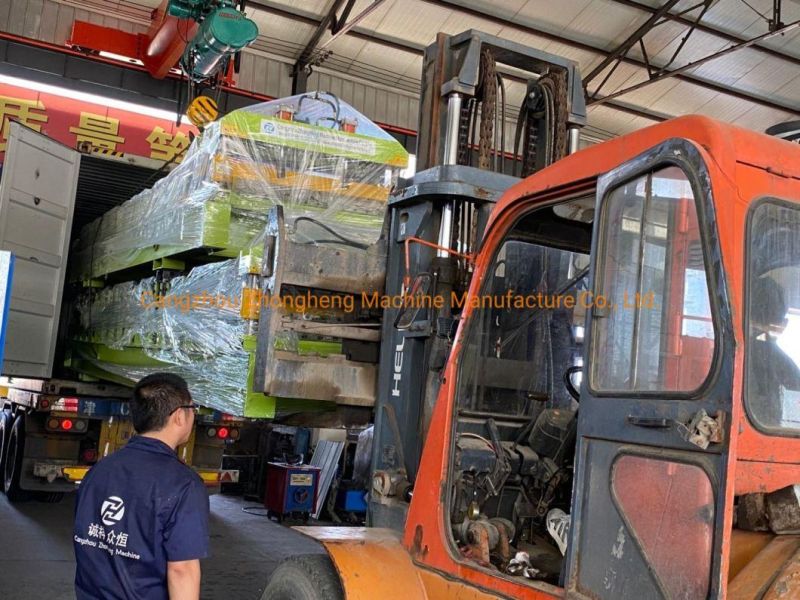

Packing and shipping
Tr4 Tr 5 Double Layer Roll Forming Machine Double Deck Roll Forming Machine


Company information
Tr4 Tr 5 Double Layer Roll Forming Machine Double Deck Roll Forming Machine
Tr4 Tr 5 Double Layer Roll Forming Machine Double Deck Roll Forming Machine
Tr4 Tr 5 Double Layer Roll Forming Machine Double Deck Roll Forming Machine
Tr4 Tr 5 Double Layer Roll Forming Machine Double Deck Roll Forming Machine
Tr4 Tr 5 Double Layer Roll Forming Machine Double Deck Roll Forming Machine
Tr4 Tr 5 Double Layer Roll Forming Machine Double Deck Roll Forming Machine
