2022 Automatic Metal Roof Forming Machine Standing Seam Making Machine Price

General Industry Tech Hebei Developing Co., Ltd.
  • After-sales Service：Video Techenical Support
  • Warranty：2 Year
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：ztrfm
  • Usage：Roof, Wall
  • Transmission Method：Chains
  • Name：Metal Roof Panel Forming Machinery
  • Shaft Material：45# Steel
  • Diameter of Shaft：80mm
  • Roller Material：45#, 40cr
  • Structure：Middle Steel Plate
  • Basic Frame：400h Steel
  • Raw Material：Gi,Gl,PPGI,PPGL
  • Thickness of Raw Material：0.3-0.8mm
  • Cutting Type：Hydraulic Cutting
  • Blade Material：Gcr12 Queched, HRC 58-62
  • Hydraulic Oil：46# Oil
  • Hydraulic Power：4kw
  • Main Motor Power：5.5kw
  • Voltage：380V,50Hz,3phase
  • Width：1200mm
  • Transport Package：Standard Packing
  • Specification：9500*1450*1500
  • Trademark：ZTRFM
  • Origin：Botou, Hebei, China
  • HS Code：8474801
  • Production Capacity：300 Sets,Year

Description

Main motor power5.5KWRoller material40CrRoller shaft material45# steelWork speed0-20 m/minDimesion7500*1650*1500mmStructureMiddle plate welded frame structureMain frame4000 H steel weldedDrive modeChains driveControl systemPLC control systemHydraulic station4kwCutting typeHydraulic cuttingCutter materialGCr12 chromed and quenched for good hardness and using

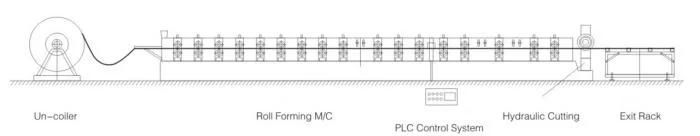

Working flow
2022 Automatic Metal Roof Forming Machine Standing Seam Making Machine Price

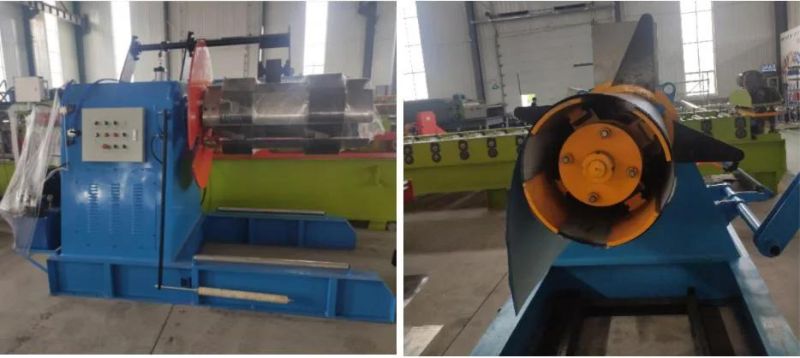

1.Hydraulic Decoiler work type: hydraulic usage: to support the coil and make the uncoiling capacity: 5 tonsinner diameter: 450-550mmcoil width: 1250mm
2022 Automatic Metal Roof Forming Machine Standing Seam Making Machine Price

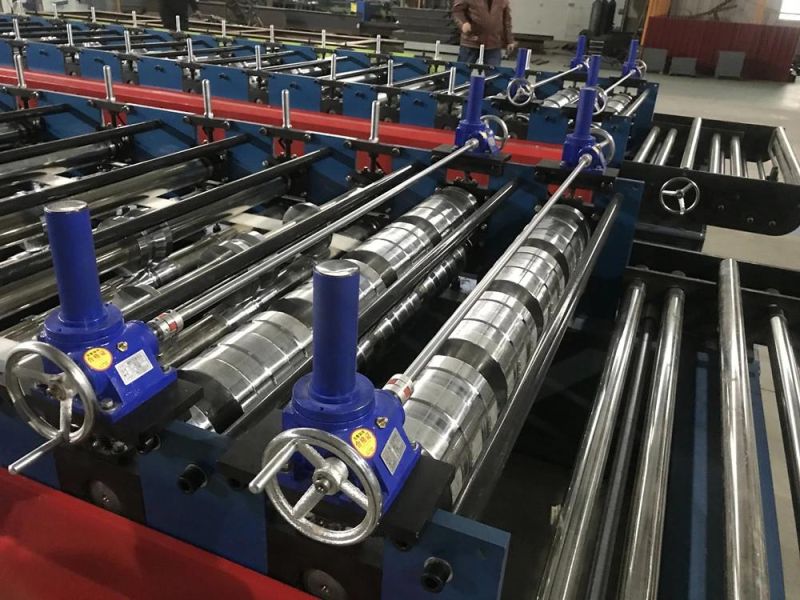

2.Main roll forming machineFeeding device: With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers. Machine frame: 350H steel welded Machine structure: middle plate Roller station: 15 stationsRoller material: 45# steel withquenched treatment and hard chroming Shaft diameter: 80mm,solid Shaft material: 45# steel with tempering treatment Motor power:5.5 kw Speed: 0-20m/min Transmission: By chains Voltage: 380V,50HZ,3Phase2022 Automatic Metal Roof Forming Machine Standing Seam Making Machine Price
2022 Automatic Metal Roof Forming Machine Standing Seam Making Machine Price
2022 Automatic Metal Roof Forming Machine Standing Seam Making Machine Price

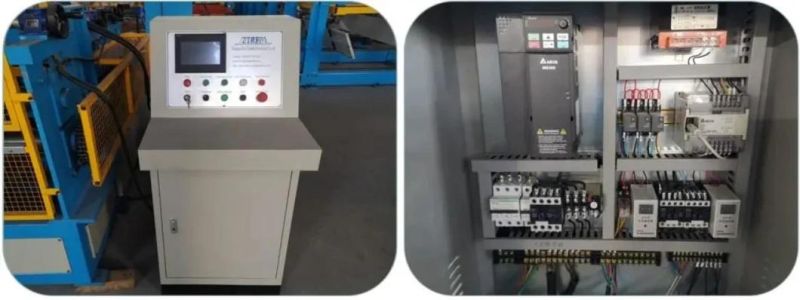

3.PLC control stationPLC brand: Delta from Taiwan Frequency converter brand: Delta from Taiwan Encode: Omron Function: Automatic control the length,quantity and batch2022 Automatic Metal Roof Forming Machine Standing Seam Making Machine Price

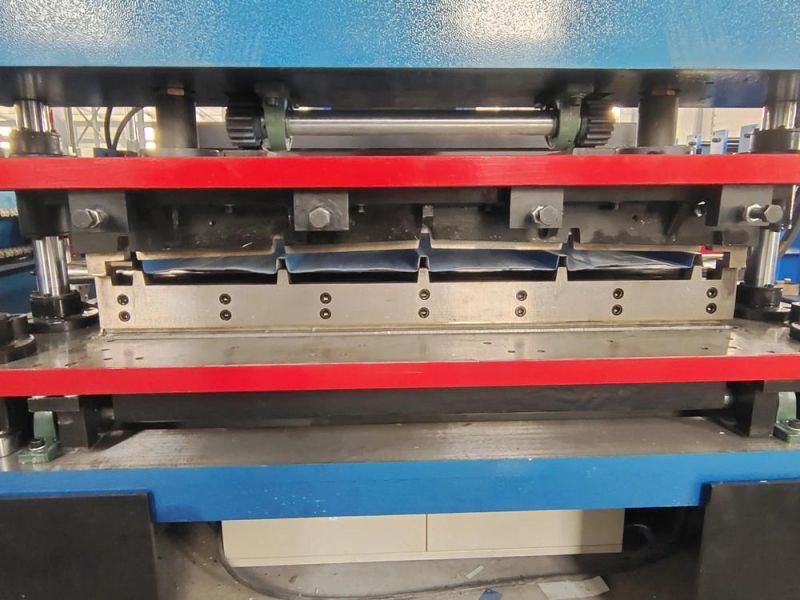

4.Hydraulic cutting systemBlade material: Cr12,with quenched treatment Motor power: 4 kw Cutting tolerance: +/-1 mm Cooling system: with cooling fan Cutting type: Hydraulic cutting Feature: Low noise and high performance
2022 Automatic Metal Roof Forming Machine Standing Seam Making Machine Price

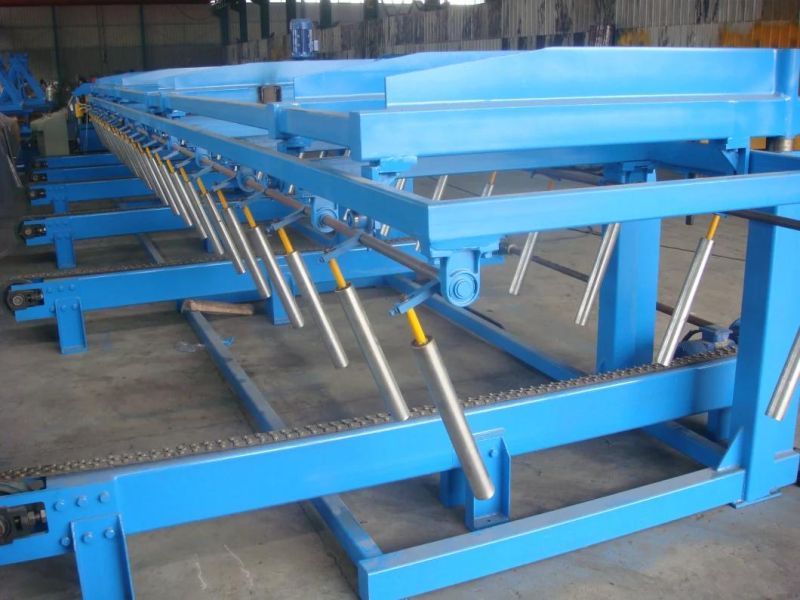

Automatic stackerLength: 3m,6m,9m,12m2022 Automatic Metal Roof Forming Machine Standing Seam Making Machine Price
Feedback from customers
2022 Automatic Metal Roof Forming Machine Standing Seam Making Machine Price

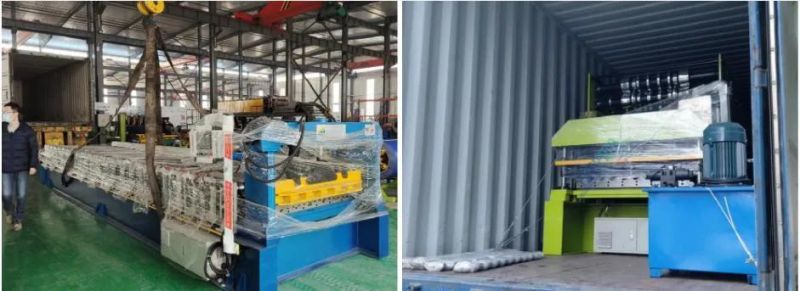

Packing
2022 Automatic Metal Roof Forming Machine Standing Seam Making Machine Price
2022 Automatic Metal Roof Forming Machine Standing Seam Making Machine Price
