Building Material Making Machinery

Home > Product > Brick Making Machine

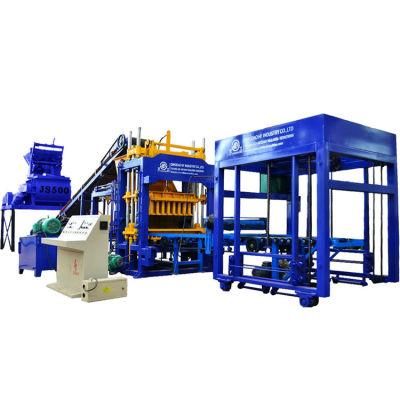

Qgm Block Making Machine (QT6-15)

Quangong Machinery Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Vibration Molding
  • Transport Package：Standard Seaworthy Packing
  • Specification：CE & ISO9001

Base Info

  • Model NO.：QT6-15
  • Trademark：QGM
  • Origin：China
  • HS Code：84748090
  • Production Capacity：8640-11000

Description

Main Technical SpecificationsProduction per Mould:6 pcs/mould (Standard Block: 400x200x200mm)30 pcs/mould (Solid Block: 240x115x53mm)15 pcs/mould (Interlock Paver: 225x112.5x60mm)21 pcs/mould (Holland Brick: 200x100x60-80mm)Cycle Time:15-20 secondsProduction per Day  (8 Working Hours):Hollow Block (400x200x200mm): 8640-11520 pcsSolid Block (240x115x53mm): 43200-57600 pcsInterlock Paver (225x112.5x60mm): 17280-21600 pcsHolland Brick (200x100x60-80mm): 2419230240 pcsVibrating Frequency:3300 rolls/minuteVibrating Force:60 KNMotors Power:30 KWMachine Dimensions:9680x2800x2800mmPallet Size:850x680mmGross Weight:about 7.5TRaw Materials:crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastesApplied Products:concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.Applied Fields:widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc
