• Model NO.：ZN900C
• Hot Product：Construction Machine
• Applied Field：Widely Used in Buildings, Garden, Squares etc..
• Transport Package：Standard
• Specification：Weight (with facemix): 12T
• Trademark：QGM
• Origin：China
• Production Capacity：Paver 200*100*60mm: 43, 200 PCS

Production per Shift (8 Working Hours):

Hollow Block (400x200x200mm): 14400-19200 pcs

Solid Block (240x115x53mm): 77760-103680 pcs

Interlock (225x112.5x60mm): 31104-38880 pcs

Holland Brick (200x100x60-80mm): 4032050400 pcs

Vibrating Frequency:

2940 rolls/minute or 50 HZ

Motors Power:

53 KW

Machine Dimensions:

7568x2060x2968mm (excluding electrical control box)

Pallet Size:

1250x850mm

Gross Weight:

about 15T

Raw Materials:

crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes

Applied Products:

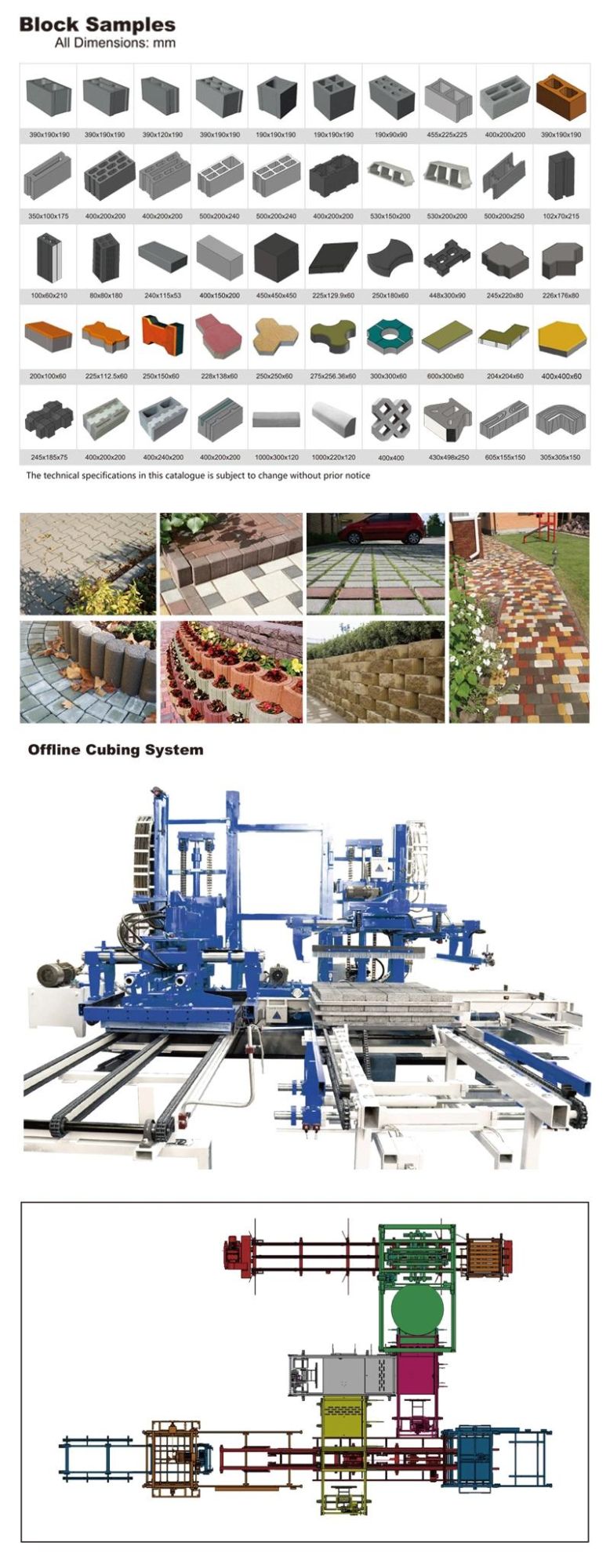

concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Applied Fields:

widely used in buildings, road pavings, squares, gardens, landscaping, city constructions

BIG FIVE ADVANTAGES OF QGM AUTOMATIC BRICK MAKING MACHINES

Our machines, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products

1. Use Germany Siemens PLC control system and Siemens Touch Screen, use Schneider and Omron relays and contactors

    A. Siemens PLC, with great adaptability, guarantees the stability and reliability of the machine.

    B. Visualization touch screen, with easy operation

    C. High-quality electrical components from Schneider and Omron;

2. Use Frequency Conversional Control Technology, which controls the block making:

    A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration.

increases the production rate by improving the vibrating efficiency.

    B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working.

    C. Power saving: 30%

3. Use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure

    A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;

    B. Guarantee production stability.

4. 360° Multi-Shaft Rotating and Compulsory Feeding.

    A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed

    B. This uniform feeding is applicable for different kinds of raw materials and moulds.

5. Use heat treatment on moulds and main parts of the machines:

    A. Heavy duty machine structure and wear resistant moulds;

    B. The hardness reaches up to HRC 52-58;

    C. Greatly improves the using lifetime of the machine by 50%.

Welcome To QGM ZENITH GROUP

 Established in 1953, ZENITH Maschinenfabrik GmbH (called ZENITH for short) is Germany-based concrete block machine manufacturer. Over the last 6 decades, ZENITH focus on the R&D of non-pallet block producing technology and today ZENITH has become the worldwide leader in non-pallet block machine manufacturing. Our product include: Mobile Multilayer Machines, Mobile Single Pallet Machines, Stationary Multilayer Machines and Stationary Fully Automatic Production Line.

 Due to the highest quality and first class performance, more than 7,000 ZENITH customers all around the world are continuous benefit from ZENITH's expertise and know-how day after day, for more than 60 years.

 In July of 2014, ZENITH Maschinenfabrik GmbH was acquired by Quan Gong Machinery (called QGM for short), and become the member of QGM Group. QGM Group is able to provide a wide range products to our users, from simple automatic production line to fully automatic production line, from middle class to high class.
