• Model NO.：LJZ2-CNS-500*4200
• Input Voltage：380V 50Hz
• Input Power：4.5kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Cutting Length：360~4200mm(360~5000mm)
• Cutting Height：10~300mm
• Cutting Width：10~130mm
• Cutting Angle：90° , 45° , 67.5°
• Saw Feeding Speed：0~3m,Min
• Saw Blade Standard：φ500×4.4×φ30×z120
• Overall Dimension：5500*1700*1600mm
• Transport Package：Wooden Box
• Specification：5500*1700*1600mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：40 Window Per Day

Basic Info.

Model NO. LJZ2-CNS-500*4200 Input Voltage 380V 50Hz Input Power 4.5kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Cutting Length 360~4200mm(360~5000mm) Cutting Height 10~300mm Cutting Width 10~130mm Cutting Angle 90° , 45° , 67.5° Saw Feeding Speed 0~3m/Min Saw Blade Standard φ500×4.4×φ30×z120 Overall Dimension 5500*1700*1600mm Transport Package Wooden Box Specification 5500*1700*1600mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

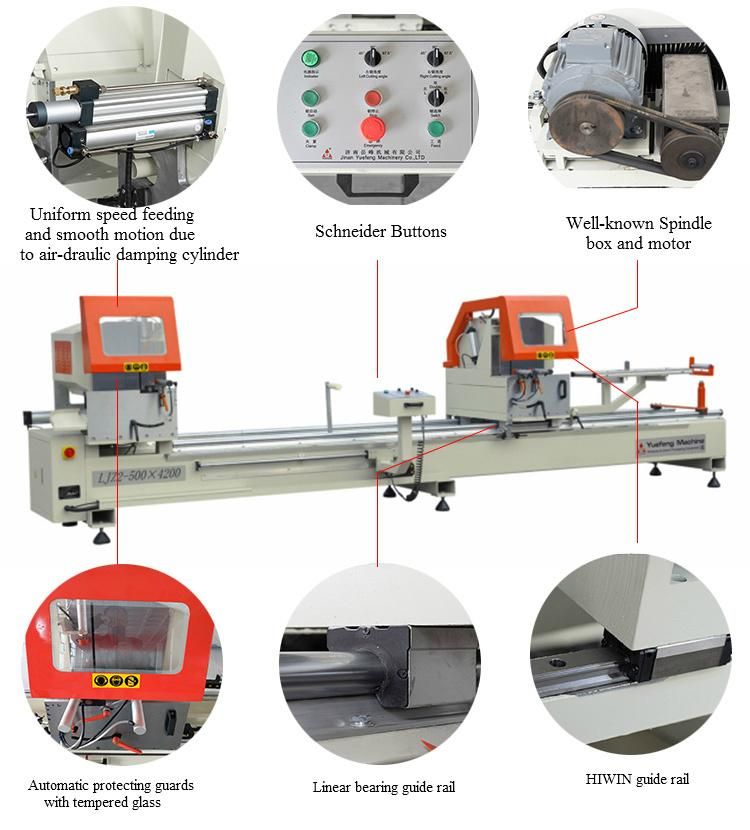

Aluminum Alloy Window Door Digital Display Double Head Cutting Machine

 Technical Parameter:
1Used for cutting profiles such as aluminum profile and curtain wall.
2Touched screen and import controlling system adopted with high accuracy and smooth working.
Two heads cutting angle 90°45°67.5°(22.5°) are available.
3Setting heights of profiles will show the lengths of cutting with different angles (90°, 45°, 67.5°) automatically.
4The system can store various of profiles, convenience and efficiency.
5Digital display system adopted, with high efficiency and accuracy.


Model	LJZ2-CNS-500×4200(5000)
Input voltage	380V 50Hz
Input power	4.5Kw
Air pressure	0.5~0.8MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	360~4200mm(360~5000mm)
Cutting width	10~130mm
Cutting height	10~300mm
Cutting angle	90° , 45° , 67.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	5500(6300)×1700×1600mm

FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
