China Corrugated Barrel Type Roofing Sheet Roll Forming Machine

Cangzhou Zhongheng Machine Manufacture Co., Ltd.
  • Tile Type:Colored Steel
  • Certification:CE
  • Condition:New
  • Customized:Customized
  • Usage:Roof, Wall
  • Transmission Method:Electric

Base Info

  • Model NO.:ZH1000
  • Feature:China Corrugated Barrel Type Roofing Sheet Roll Fo
  • Suitable Material:PPGI Gi
  • Thickness:0.13-0.4mm
  • Width:2600mm as Custom Profile
  • Voltage:380V
  • Speed:30m,Min
  • Rollers:45# Steel as Customer Require
  • Motor:5.5kw
  • Control:PLC Delta
  • Cutting:Hydraulic , Electric
  • Key Selling Points:Easy to Operate
  • Cutting Blade:Cr12 MOV
  • Delivery Time:40 Days
  • Warranty:2 Years
  • Transport Package:Plastic File
  • Specification:7.8X1.5X1.7M
  • Trademark:ZH
  • Origin:Hebei, China
  • HS Code:8455221000
  • Production Capacity:20 Sets Per Month

Description

Basic Info.

Model NO. ZH1000 Feature China Corrugated Barrel Type Roofing Sheet Roll Fo Suitable Material PPGI Gi Thickness 0.13-0.4mm Width 2600mm as Custom Profile Voltage 380V Speed 30m/Min Rollers 45# Steel as Customer Require Motor 5.5kw Control PLC Delta Cutting Hydraulic / Electric Key Selling Points Easy to Operate Cutting Blade Cr12 MOV Delivery Time 40 Days Warranty 2 Years Transport Package Plastic File Specification 7.8X1.5X1.7M Trademark ZH Origin Hebei, China HS Code 8455221000 Production Capacity 20 Sets Per Month

Product Description

China Corrugated Barrel Type Roofing Sheet Roll Forming MachineChina Corrugated Barrel Type Roofing Sheet Roll Forming MachineRoof roll forming machines has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet. The ridge cap sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.

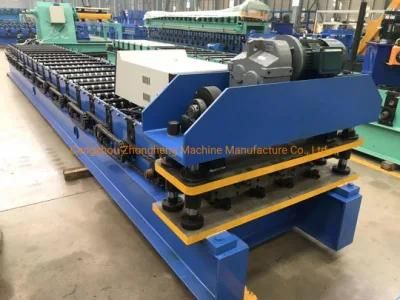

China Corrugated Barrel Type Roofing Sheet Roll Forming Machine

China Corrugated Barrel Type Roofing Sheet Roll Forming MachineChina Corrugated Barrel Type Roofing Sheet Roll Forming Machine

The main technical parameters of corrugated forming machine are as follows:

Raw material specifications:

1.Transverse barrel corrugating type.
2.Raw material: thin Galvanized steel sheets, Aluzinc steel sheets etc
3.Sheet width:762mm(2.5 feet),914mm(3 feet),1000mm,1250mm
4.Width deviation:+25mm,-10mm.
5.Sheet Maximum length:3000mm or 4000mm,
Thickness: 0.13mm to 0.40mm
6.Pitch:76 mm(+/-1.0mm) or customer(s) required.
7.Depth:18mm(+/-0.5mm) or customer(s) required.
8.Corrugation:large round wave (Based on JIS G3316).
9.Drive:geared motor 7.5Kw with reducer X one(1).
10.Roll revolution:max 12/minute.
11.Guider for sheet input:welded steel structure with stopper for setting width.
12.Corrugation roll:barrel length 2000mm-3000(4000)mmL.
13.Pitch adjust roll:barrel length 2000mm-3000(4000)mmL.
14.Up & down device for corrugation and pitch adjusting rolls.
15.Screw X four(4),adjusted by manual handles.
16.Guider for output products:welded steel plates.
17.Control and op panel:relay type X one(1).
18.Hardness:full hard,semi hard,soft.


China Corrugated Barrel Type Roofing Sheet Roll Forming Machine
China Corrugated Barrel Type Roofing Sheet Roll Forming Machine
China Corrugated Barrel Type Roofing Sheet Roll Forming Machine
China Corrugated Barrel Type Roofing Sheet Roll Forming Machine

Packing and Shipping

1. Barral type corrugated iron roofing sheet making machine roof panel forming machine need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
China Corrugated Barrel Type Roofing Sheet Roll Forming Machine


Company Introduction

China Corrugated Barrel Type Roofing Sheet Roll Forming Machine
China Corrugated Barrel Type Roofing Sheet Roll Forming Machine
China Corrugated Barrel Type Roofing Sheet Roll Forming Machine

FAQ

1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .

More information please send inquiry to us , you will get reply within 12 hours !
