• Model NO.：DX 312
• Usage：Roof, Wall, Floor, Door Frame
• Transmission Method：Hydraulic Pressure
• Effective：Easy Operation
• Power：5.5kw
• Forming Station：13 Stations
• PLC：Delta Brand
• Hydraulic Motow：4kw
• Type：Steel
• Method：Roll Forming Machine
• Processing：Steel
• Product：Shutter Door
• Transport Package：No
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：8sets,Per Month

Basic Info.

Model NO. DX 312 Usage Roof, Wall, Floor, Door Frame Transmission Method Hydraulic Pressure Effective Easy Operation Power 5.5kw Forming Station 13 Stations PLC Delta Brand Hydraulic Motow 4kw Type Steel Method Roll Forming Machine Processing Steel Product Shutter Door Transport Package No Specification CE, SGS Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 8sets/Per Month

Product Description

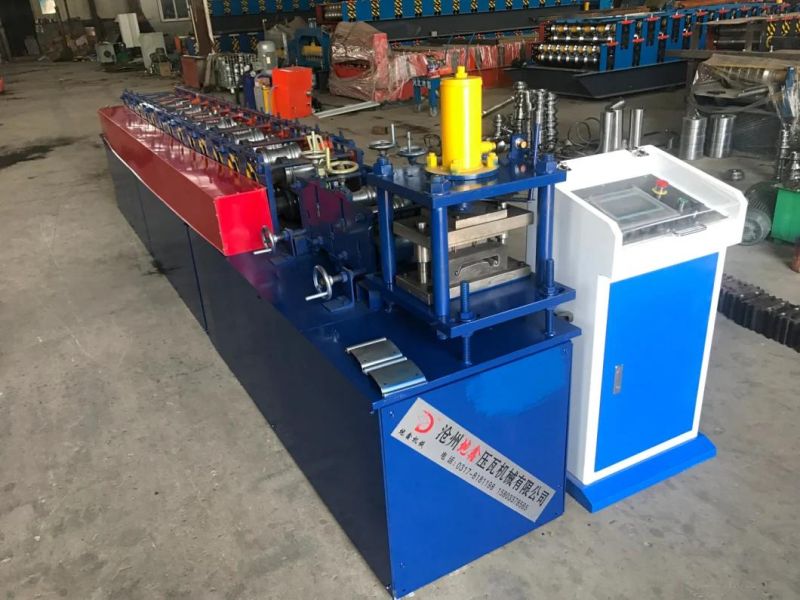

 shutter door  Metal Machine by Roll Forming
We are manufacturer of roll forming machine for 8 years, and ever sold machines to many countries, such as: US, UK, Canada, Russia, Zambabwe, Italy, Azerbaijan. etc.






1. Technique parameters

(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Main motor power: 5.5 kw
(4) Pump power: 4 kw
(5) Shaft diameter: 65mm
(6) Forming steps: 13 steps
(7) Roller material: 45# forged steel, with hard chrome plating
(8) Main frame: steel frame
(9) Medium plate thickness: 12mm
(10) Control systerm: PLC computer control with inverter
(11) Power supply: 380V, 3 Phase, 50Hz
(12) 0veral sized: 4500mm*1000mm*1500mm
(13)Total weight: 1.5 tons

2. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

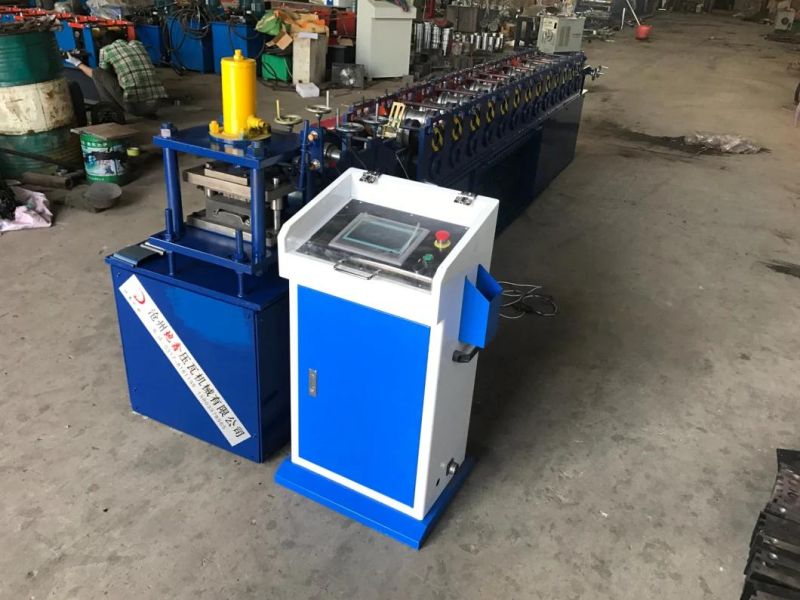

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.

(5) Spare parts

3. Payment term


1) Payment: 30% T/T prepaid, and pay the balance before shipping.

2) Delivery time: 30 working days.

3) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.

4) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.

5) Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how   to   install and   use   the machine, and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and CD to teach you to install and operate.

c. COST OF INSTALLATION:

The buyer should pay the installation charges (USD 80 one man one day). To the seller's appointed account by T/T before the seller's technicians go to the buyer's factory. The buyer pays the seller's technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.

4. Warranty

1. Free technical support and free accessories supply.

2. Engineer available to service machinery overseas.

3. One year warranty is provided.

4. Long life technical guidance for free.

5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.

6. Package
Standard export package, water-proof package, covered with plastic film

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1

Welcome to our company: Cangzhou Dixin Roll Forming Machine Co.,Ltd.

ADD: Fuzhuang Development Zone, Botou City, Cangzhou, Hebei Province, China

If you want to get more information about our equipment ,
Please feel free contact Nancy
