• Model NO.：VP60
• Processing：Brick Production Line
• Product：Brick
• Brick Raw Material：Clay
• Automation：Automatic
• Tolerance：0.5mm
• Condition：New
• Transport Package：Container
• Specification：JKY
• Trademark：BRICTEC
• Origin：China
• HS Code：8474
• Production Capacity：500,000-120million PCS,Year.

Basic Info.

Model NO. VP60 Processing Brick Production Line Product Brick Brick Raw Material Clay Automation Automatic Tolerance 0.5mm Condition New Transport Package Container Specification JKY Trademark BRICTEC Origin China HS Code 8474 Production Capacity 500,000-120million PCS/Year.

Product Description

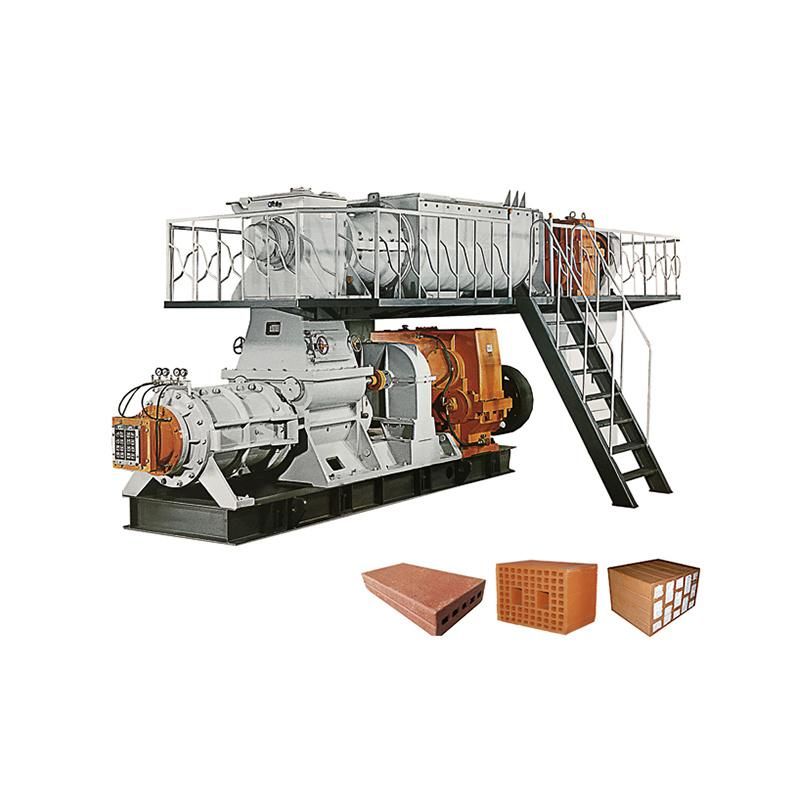

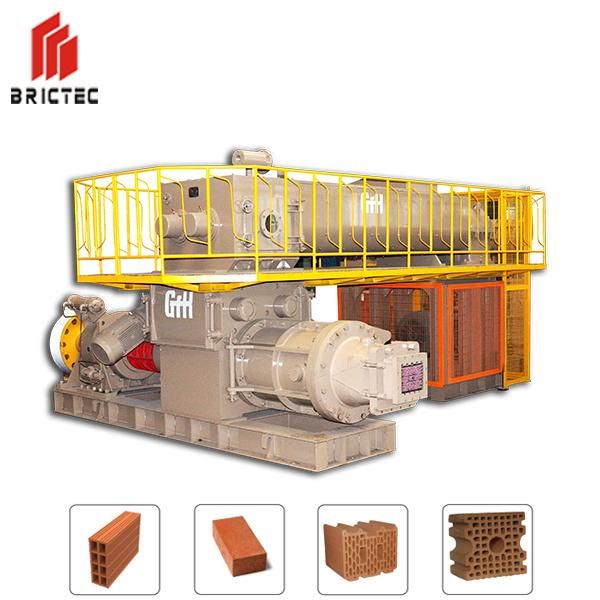

Fully Automatic Clay Brick  Machine Introduction
Clay brick making machine is high-performance vacuum extrusing equipment forforming of various type hollow bricks made from coal gangue, shale, coal dust and other solid wastes. It is designed to be produced with German KWS technology according to German standards and is authorized to use German trademark of GFK. Its mixing reducer is equipped with hardened gears which are all grinded, and the extrusion reducer makes use of planet gears with high drive efficiency, therefore, it is the advanced vacuum extrusion equipment in the world.

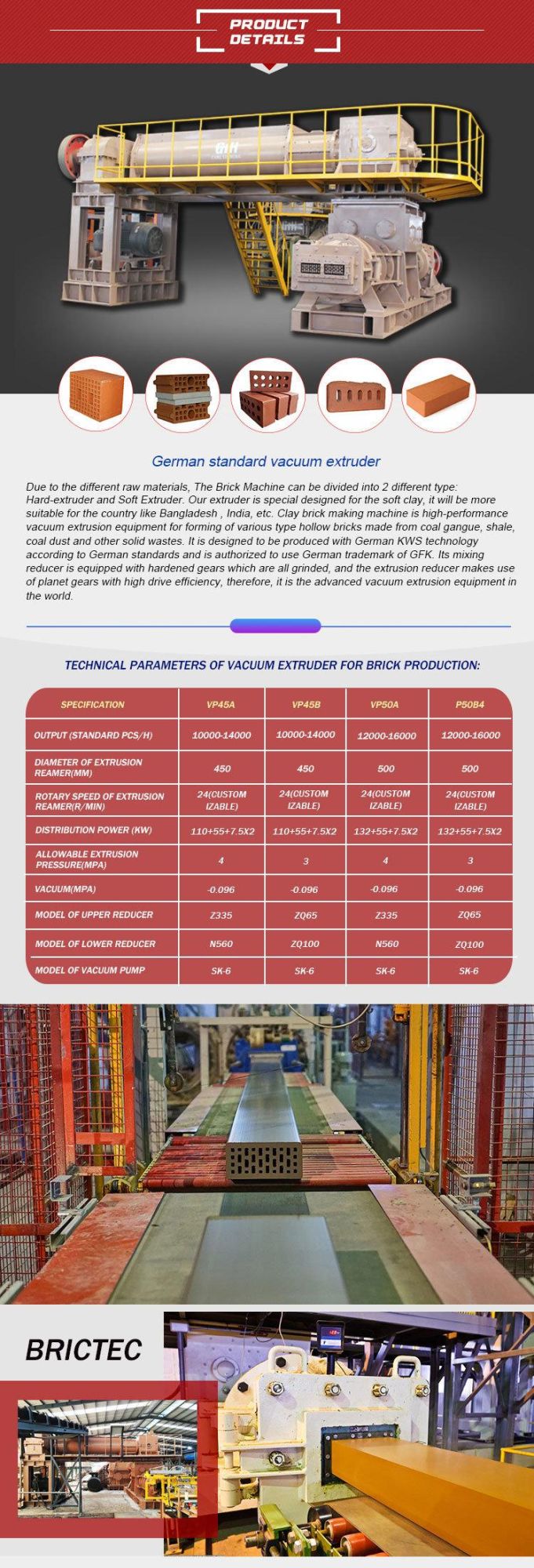

Technical Parameters of Vacuum Extruder for brick production:



Specification	VP45A	VP45B	VP50A	VP50B
Output (standard pcs/h)	10000-14000	10000-14000	12000-16000	12000-16000
Diameter of Extrusion Reamer(mm)	450	450	500	500
Rotary Speed of Extrusion Reamer(r/min)	24(Customizable)	24(Customizable)	28(Customizable)	28(Customizable)
Distribution Power (kW)	110+55+7.5X2	110+55+7.5X2	132+55+7.5X2	132+55+7.5X2
Allowable Extrusion Pressure(MPa)	4	3	4	3
Vacuum(MPa)	-0.096	-0.096	-0.096	-0.096
Model of Upper Reducer	Z335	ZQ65	Z335	ZQ65
Model of Lower Reducer	N560	ZQ100	N560	ZQ100
Model of Vacuum Pump	SK-6	SK-6	SK-6	SK-6




Features of our machine :










Company & Service Introduction

1.We majors in the abroad & home fired-brick designing, kiln designing, factory building designing and turn-key project.
2.We have many professional specialists, among which 6 are professor-level engineer and 10 are of high title.
3.We have accomplished over 50 brick projects of engineering, trading, technical support in Asia, Africa and South American countries.
4.We have also successfully constructed over 20 production lines in China.

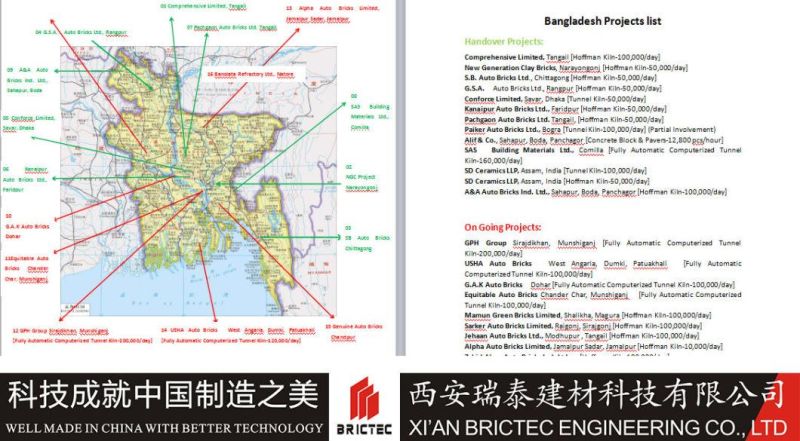

Our projects in Bangladesh





Handover Projects:

1. Comprehensive Limited, Tangail [Hoffman Kiln-100,000/day]
2. New Generation Clay Bricks, Narayongonj [Hoffman Kiln-50,000/day]
3. S.B. Auto Bricks Ltd., Chittagong [Hoffman Kiln-50,000/day]
4. G.S.A.  Auto Bricks Ltd., Rangpur [Hoffman Kiln-50,000/day]
5. Conforce Limited, Savar, Dhaka [Tunnel Kiln-50,000/day]
6. Banolata Refractory Ltd., Natore [Hoffman Kiln-50,000/day]
7. Kanaipur Auto Bricks Ltd., Faridpur [Hoffman Kiln-50,000/day]
8. Pachgaon Auto Bricks Ltd. Tangail, [Hoffman Kiln-50,000/day]
9. Paiker Auto Bricks Ltd., Bogra [Tunnel Kiln-100,000/day] (Partial Involvement)
10. Alif & Co., Sahapur, Boda, Panchagor [Concrete Block & Pavers-12,800 pcs/hour]

On Going Projects:

1. SAS  Building Materials Ltd., Comilla [Fully Automatic Computerized Tunnel Kiln-160,000/day]
2. G.A.K Auto Bricks  [Fully Automatic Computerized Tunnel Kiln-100,000/day]
3. Mamun Green Bricks Limited, Shalikha, Magura [Hoffman Kiln-100,000/day]
4. Sarker Auto Bricks Limited, Raigonj, Sirajgonj [Hoffman Kiln-100,000/day]
5. Jehaan Auto Bricks Ltd., Modhupur , Tangail [Hoffman Kiln-100,000/day]

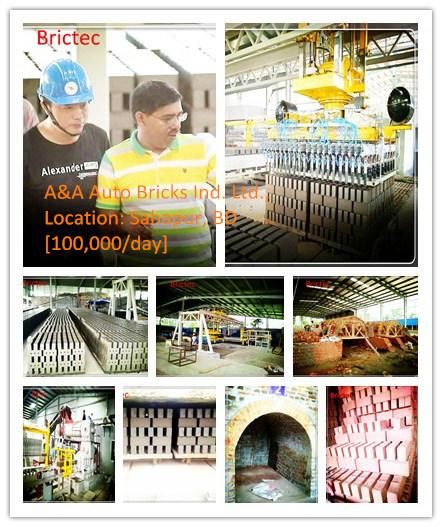

6. A&A Auto Bricks Ind. Ltd., Sahapur, Boda, Panchagor [Hoffman Kiln-100,000/day]
7. Alpha Auto Bricks Limited, Jamalpur Sadar, Jamalpur [Hoffman Kiln-50,000/day]
8. SD Ceramics LLP, Assam, India [Tunnel Kiln-100,000/day]
9. SD Ceramics LLP, Assam, India [Hoffman Kiln-50,000/day
