• Model NO.：SJSZ80,156
• Customized：Customized
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Type：Sheet Extruder
• Screw：Single-Screw
• Automation：Automatic
• Computerized：Computerized
• Plastic Processed：WPC
• Feeding Mode：One Feed
• Assembly Structure：Integral Type Extruder
• Exhaust：Don′t Exhaust
• Transport Package：According to Your Requirement
• Specification：ISO9000 ISO2000 CE
• Trademark：suke
• Origin：Qingdao, China
• HS Code：84775900
• Production Capacity：40pics,Year

Basic Info.

Model NO. SJSZ80/156 Customized Customized Engagement System Full Intermeshing Screw Channel Structure Deep Screw Type Sheet Extruder Screw Single-Screw Automation Automatic Computerized Computerized Plastic Processed WPC Feeding Mode One Feed Assembly Structure Integral Type Extruder Exhaust Don′t Exhaust Transport Package According to Your Requirement Specification ISO9000 ISO2000 CE Trademark suke Origin Qingdao, China HS Code 84775900 Production Capacity 40pics/Year

Product Description

Outdoor Garden WPC Decking Making Machine WPC Flooring Production Line Plastic Machine WPC Profile Equipment Price




Machine Introduction:

Certificate: CE, ISO9001:2008, SGS,
Brand Name: SUKE
This line is used to produce WPC Board and profile, such as WPC decking WPC floor, WPC wall panel etc. We are not only produce this kind of WPC floor but also produce the production line for this kind of WPC floor products.  etc.
It needs twin screw extruder with power material.
Raw material is PVC power, or with wood power and additives.



Production Process Flow:
Raw materials--- Mixing --- Feeding --- Extruding ---Molding --- Calibrating --- Haul-off --- Cutting--- Stacking--- Printing or Hot stamping(optional) --- Package.



Machine Features:

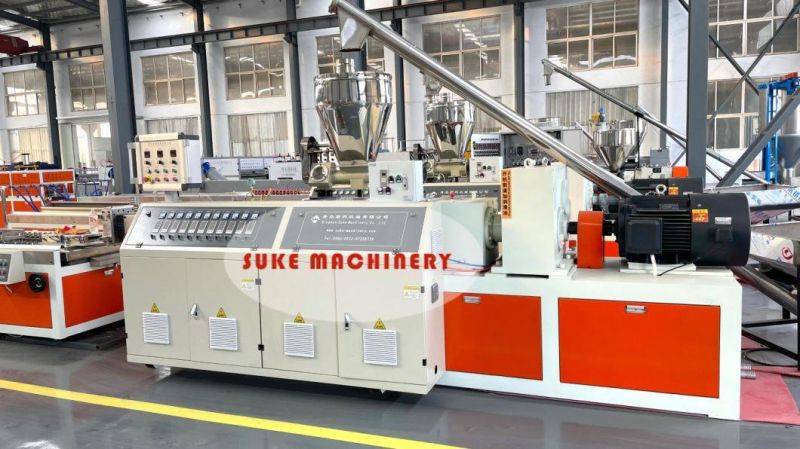

Conical Twin Screw Extruder:
Adopting specially screw designs according to different materials make the high polymer micro-foam uniform plasticization, high extrusion. Imported famous brands AC inverter makes the rotation speed stable to ensure the main extruder and accessory machines move synchronously.

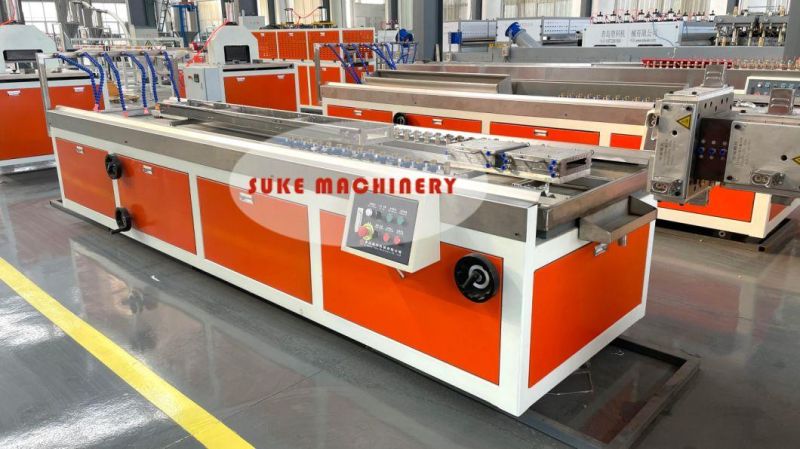

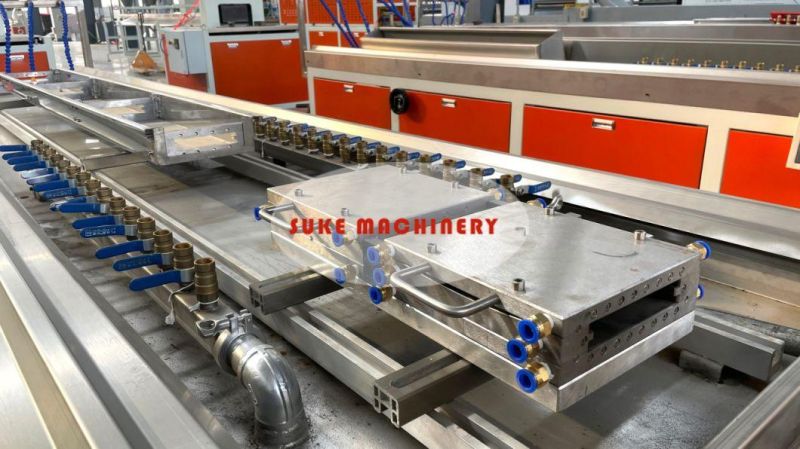

Vacuum calibrating table:
Adopts powerful turbo cooling system, easy to achieve satisfactory cooling effect. According to different moulds and different customer requirements, the vacuum calibrating table can be optional as 4m, 6m.
Haul off machine:
Adopts special lifting technology, and has the features of stable running, reliable working, powerful hauling etc,
Cutting machine:
the moving speed of the cutting unit is synchronized with hauling speed. Through prseting,the cutting unit is capable for automatic cutting with fixed length. Dust recycling device is also equipped.



Equipment List:
Double Screw Extruder                1 unit
Mould                               1 set
Shaping Machine                     1 unit
Haul-off Machine                     1 unit
Cutting Machine                      1 unit
Stacker                             1 unit
Optional Auxiliary Machine;
Crusher                           1 unit
Mixer                             1 unit
Pulverizer                         1 unit
Air Compressor                    1 unit


MACHINE TYPE

Model	SKPC600	SKPC800	SKPC1000	SKPC1250
Max. Width of Product(mm)	600	800	1000	1250
Extruder model	SJSZ80/156	SJSZ80/156	SJSZ92/188	SJSZ92/188
Max. Extrusion Capacity(kg/h)	360	360	600	600
Extruder Power(kw)	55	55	110	132
Cooling Water(M3/h)	12	13	15	18
Compressed Air(M3/min)	0.5	0.6	0.8	1
