• Model NO.：DX 820
• Condition：New
• Customized：Customized
• Transmission Method：Machinery
• Type：Rolling Machine
• Power Source：Hydraulic Pressure
• Feature：High Efficiency
• Advantage：Use Widely
• Forging Forming Method：Mold Forging
• Name：820 Glazed Roofing Tile Roll Forming Machine
• Rolled Material：0.3-0.8mm Thickness
• Effective Width：820mm
• Feeding Width：1000mm
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX 820
• Trademark：DX
• Origin：Botou Hebei China
• HS Code：84552210
• Production Capacity：20 Set Per Month

Basic Info.

Model NO. DX 820 Condition New Customized Customized Transmission Method Machinery Type Rolling Machine Power Source Hydraulic Pressure Feature High Efficiency Advantage Use Widely Forging Forming Method Mold Forging Name 820 Glazed Roofing Tile Roll Forming Machine Rolled Material 0.3-0.8mm Thickness Effective Width 820mm Feeding Width 1000mm Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX 820 Trademark DX Origin Botou Hebei China HS Code 84552210 Production Capacity 20 Set Per Month

Product Description

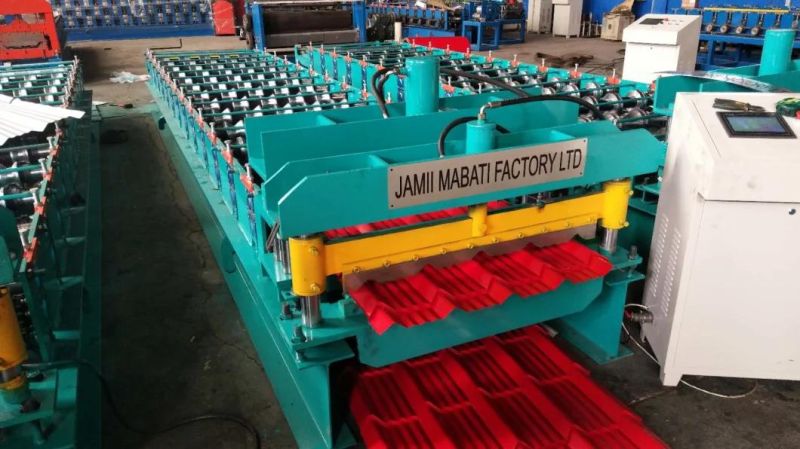

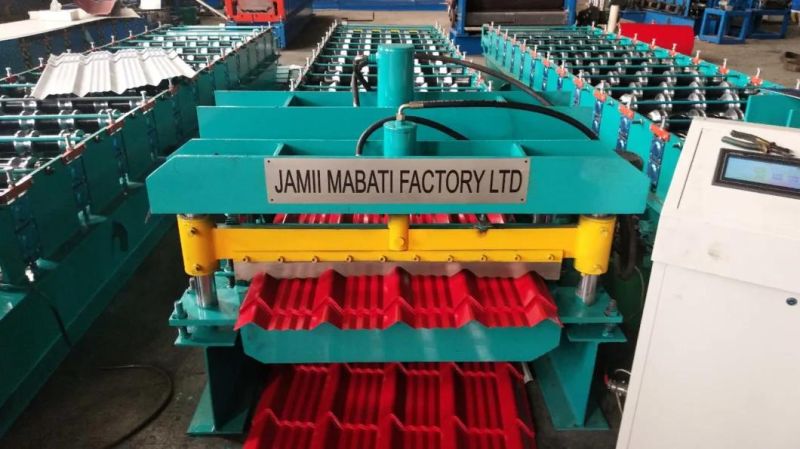

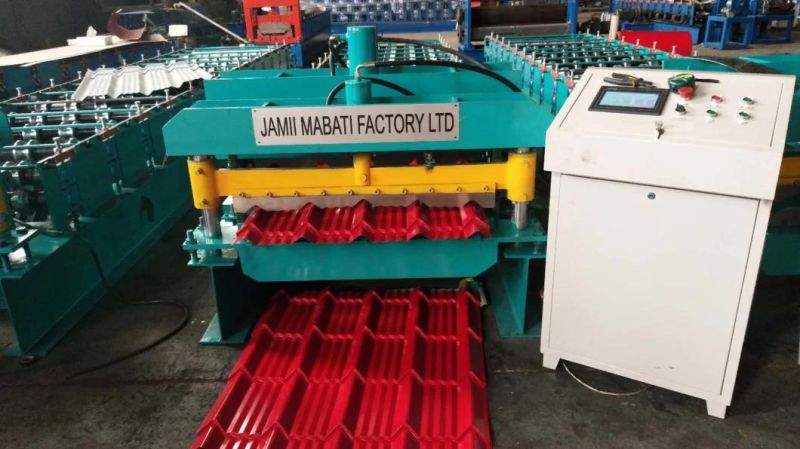

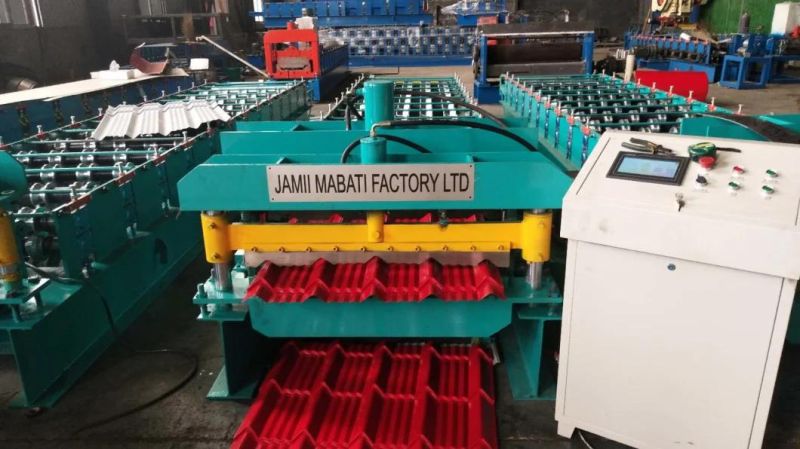

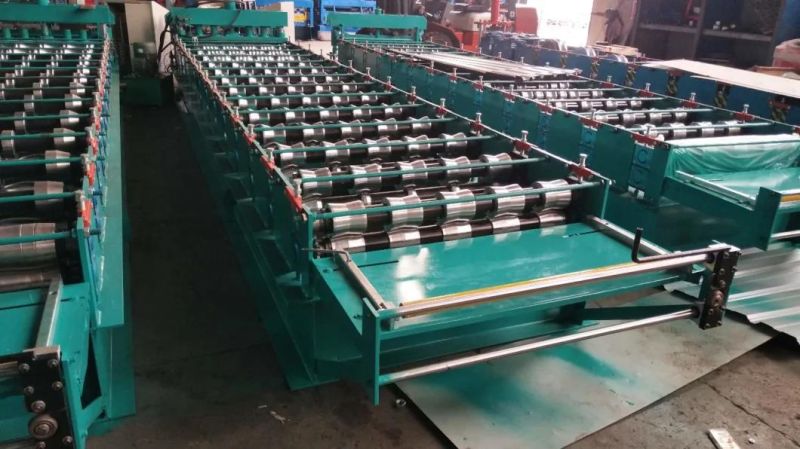

DX hot sale 820 Glazed Roofing Tile Roll Forming Machine
Product description

1.Good quality: We have a professional designer and experienced engineer team.And

the raw material and accessories we use are good.

2.Good service: we provide the technical support for whole life of our machines.

3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4.Easy operation:All machine cotrolling by PLC computer controlling systerm.

5.Elegant apperance:Protect the machine from rust and the painted colour can be customized

6.Reasonable price:We offer the best price in our industry.

1.Panel draiwng for your reference.


2.Equipment detailed parameters:

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.3-0.8mm
3.Feeding width:	1000mm
4.Effective width	820mm
5.Main motor power	4kw
6.hydraulic pump power	4kw
7. Shaft diameter	75mm
8.Forming steps	13steps
9.Main frame	300H Steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	PLC control system with touch screen
13.Cutting blade material	Cr12
14.Working speed	About 2-4m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 6800*1500*1400mm
17. Machine weight	About 2.5ton
18.Power supply	380v,3phase,50hz or accodring to customer request

3.Equipment maintenance

maintenance of roll forming machine is quite easy. We recommend that you regularly feed lubricant to the machine gear, chain and moving parts to reduce friction and avoid rusting. Make sure the power lines are properly connected before starting the machine, and at regular intervals, change the gear oil and hydraulic oil.

we provide a one year warranty and lifelong technical support will be provided

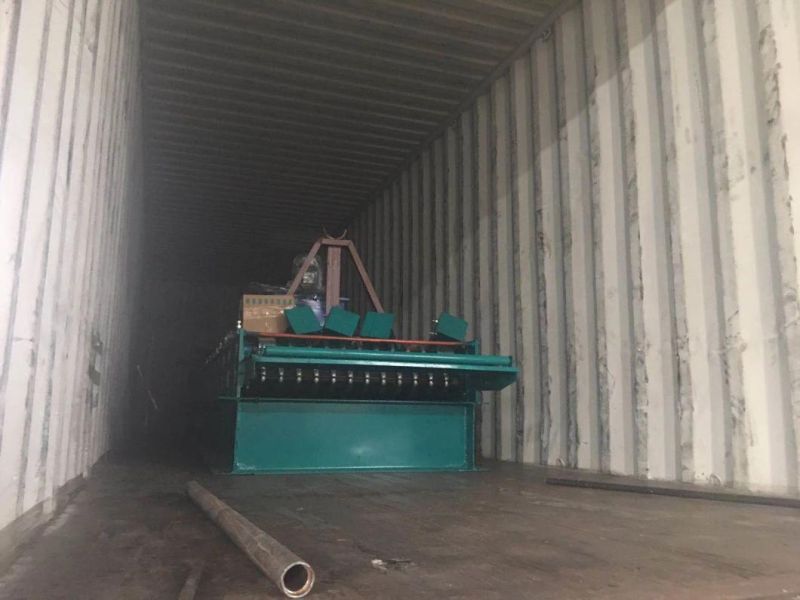

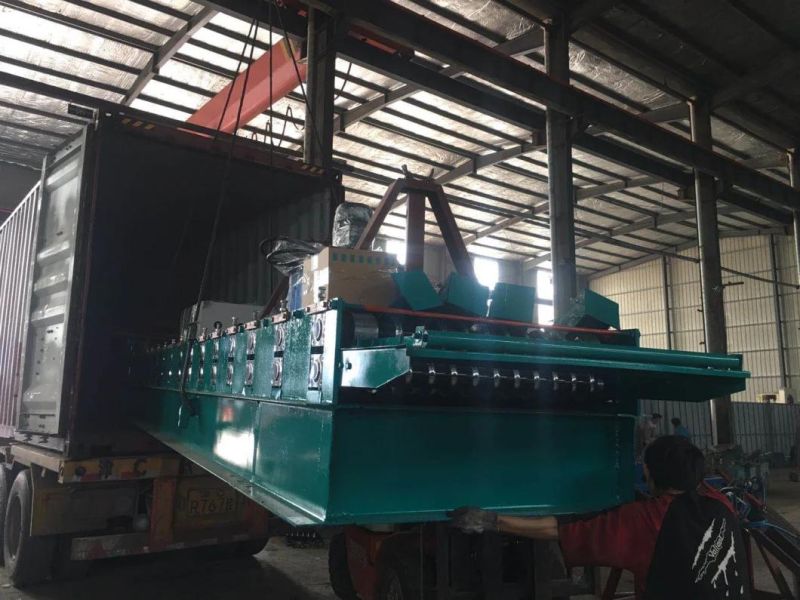

4.Packing and shipping details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.

Delivery: 30 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary 60USD/day.

Warranty: 12 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee



Some FAQ 1.How to play order:

Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5

hours),then we can pick up you.

3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.

4: If you want to get more pictures or videos of the machine,please contact me now!
