• Model NO.：Comflex
• Application：Industry
• Type：Pipe Production Line
• Product Name：Mechanical Hose Making Machine for Gas , Water Hos
• Size：DN8-DN32
• Welding Speed：2.5-3.5m,Min
• Strip Thickness Size：0.18-0.3mm
• Forming Type：Mechanical
• Production Speed：2.5-3.5m,Min
• Wall Thickness：0.15-0.3mm
• Material：SUS304, 321 and 316L
• Outer Dimensions：8000*1100*1700
• Packing Details：Polywood Box and Standard Pallet
• Transport Package：Standard Seaworthy Package
• Specification：ISO9001
• Trademark：HLT
• Origin：Jiangsu, China
• HS Code：844790900
• Production Capacity：5000 Sets,Year

Machine Type No.

HLT15-034

Technical Data

Application of the hose: natural and water hose

Size range: DN8 up to DN40

Wall thickness: 0.15-0.3mm

Production speed:2.5~3.5m/min

Strip thickness: 0.18-0.3mm

Material: sus304, 321 and 316L

Power:4-7KW

Outer dimensions: 8000*1100*1700

Packing details

Polywood box and standard pallet

MOQ

1 set

Warranty

1 year

Payment terms

T/T, L/C, D/P, Western union

Hose details of the machine can produce
No.SizeTube OD
(mm)Wall thickness
(mm)Hose ID
(mm)Hose OD
(mm)Pitch
distance
(mm)Width of the strip
(mm)1DN 810.30.18811.32.731.82DN1012.30.181013.52.938.12DN 12150.1812.316.33.246.63DN 16200.216.221.34.562.24DN 2023.50.2520254.573.05DN 25300.32531.54.593.36DN 3239.50.333414.5123.2

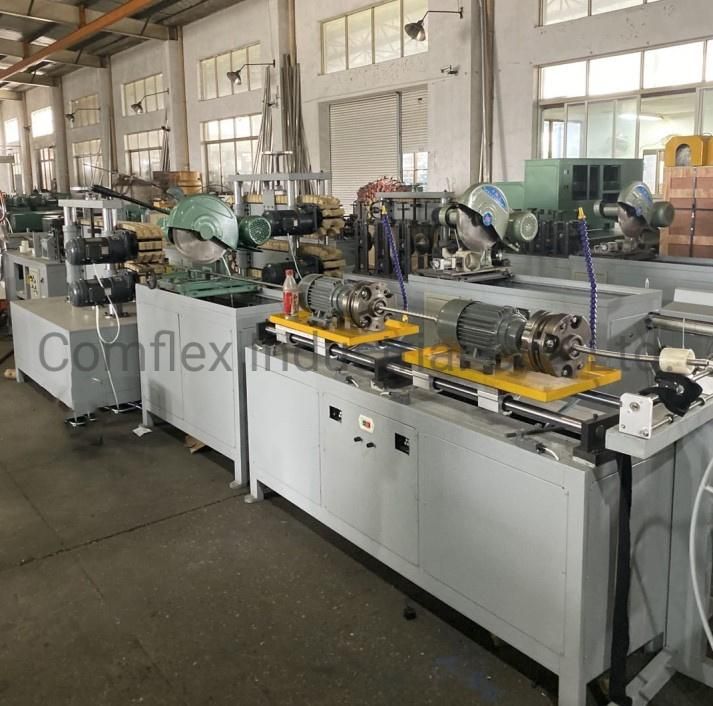

Parts of the machine line

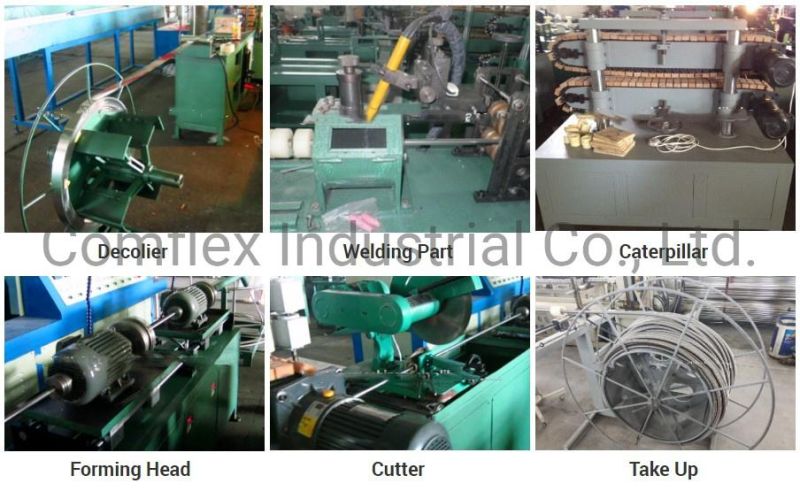

The whole machine line includes decoiler/winder, Panasonic welding machine, cutter, haul off unit, shaping unit, corrugating forming heads, take up.

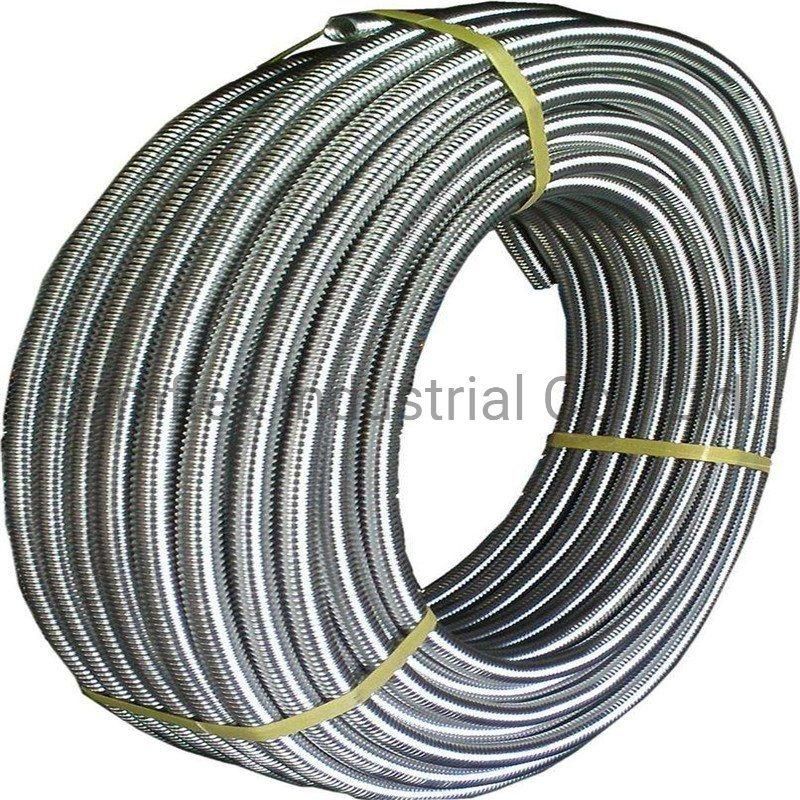

Finished Products in roll

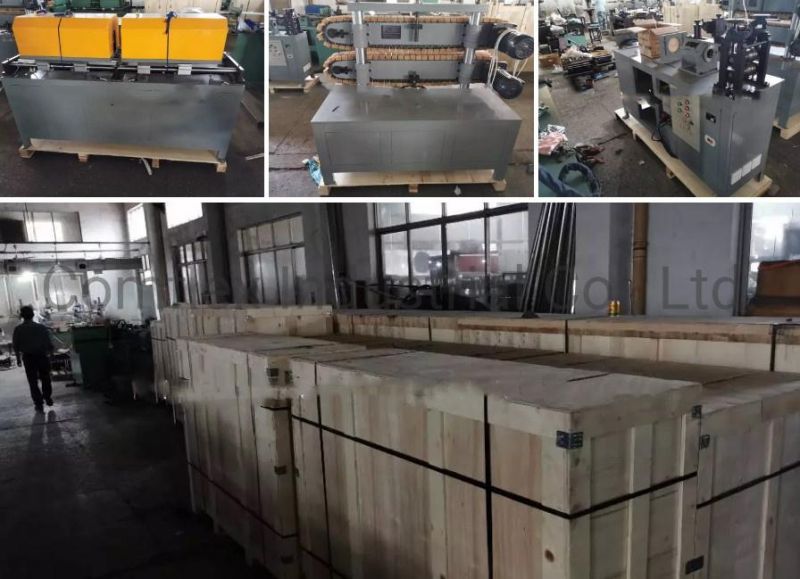

Our Machine Package

Polywood package with tray



Machine training for our customers:





FAQ

Q: Why choose us for the metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience

Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines

Q: How many different types of machines can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100   b: DN50-150   c:DN12-65

Q: Can the hose forming machine be used for bellow making?
Yes, all the above hose forming machine can be used for bellow making as well


We need to know the following information to quote you correct machinery:

1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air-conditional hose, etc..
3.Wall thickness
