Long Service Life Qt10-15 Fully Automatic Hollow Brick Making Machinery German Zenith 913 Brick Production Line
Shandong Weida Construction Machinery Company- After-sales Service：24 Hours Online
- Warranty：1 Year
- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Vibration Molding
Base Info
- Model NO.：QT10-15
- Model No.：Qt10-15 Paving Brick Machine
- Voltage：220-440V
- Pallet Size：1150X900mm
- Rated Pressure：21MPa
- Vibration Force：100kn
- Host Machine Power：44kw
- Transport Package：Standard Export Packing for 20,40 FT Container
- Trademark：weda
- Origin：China
- HS Code：8474802000
- Production Capacity：120sets,Month
Description
SPECIFICATIONS FOR QT10-15 stock brick making machineModel QT10-15 Rated pressure 21Mpa Dimension 3500x2000x2930mm Forming Cycle 15-20s Vibration form Platform vibration Weight 10000kg Working area 2000 sq.m Pallet Size 1150x900mm NO
Size(LXWXH)
Reference photos Pcs/Mould Pcs/Hour Pcs/shift 1 400x200x200mm
10 1500-1800 12000-14400 2 400x100x200mm
18 2700-3240 21600-25900 3 230x110x70mm

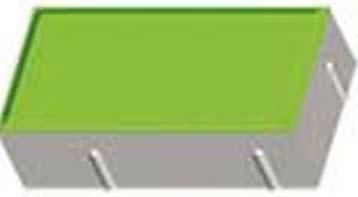

40 6000-7200 48000-57600 4 200x100x60 color paving brick
32 4800 38400 5 S paver blocks
20 3000 24000

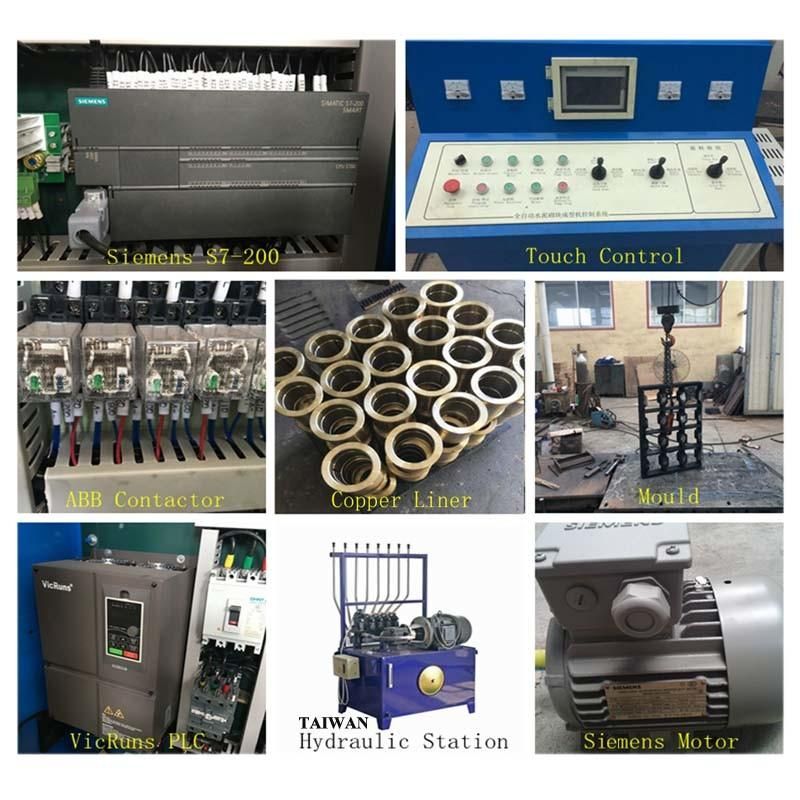

• The process is controlled by PLC and fitted with remote control device.for PLC control system ,we usually use Japan Mitsubishi or Germany Siemens Brand .
• The electricity motor for host machine we use Germany Siemens motor ,for other parts ,we use CE motor .
• about the switches ,we will use France BRAND or China CHNT

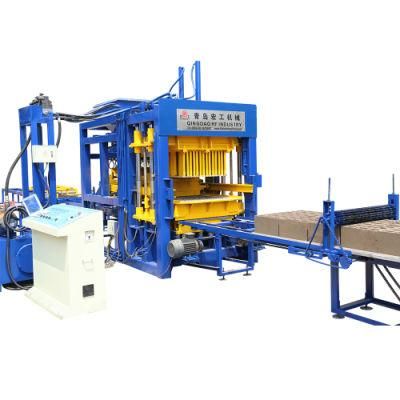

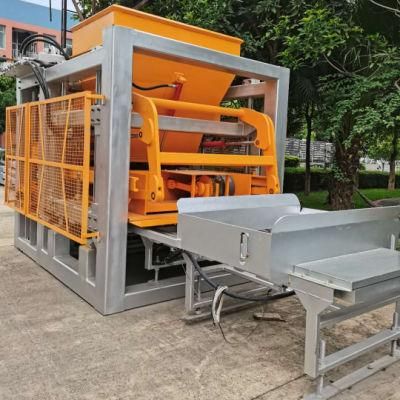

3)Automatic Paving brick machine details on client factory
• Rakes in several rows make sure raw materials fed well-distributed.
• Hydraulic components we use Taiwan Yuken famous brands.
• The demoulding synchronizer avoids the damage to concrete products.
• The vibration system contain two part ,one is up-moild vibbration box ,it is electricity motor to
supply the power for up-mouldvibration box. And the down moulld ,there have one big vobration .
when the scatter material work finish ,the hydraulic power with the two vibration power will assure
the good quality for product
4)In client factory and exbitions:
Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province, China.
With RMB 16 million investment and 53,000square meters area, We are always developing good and realiable machinery with international standards to meet clients demands(people-oriented, leading technology, winning quality, and serving user ). We had exported to more than 100 countries. We have more than 60 technician to ensure superior installations and after sale service to assist clients to install the machine and perfrom the proper training abroad.
We warmly welcome customers from all over the world come to visit our factory and discuss long term cooperation. we are 24 hours service on you!
Thank you !
