• Customized：Customized
• Application：Ceilings
• Warranty：1 Year
• Capacity：25-45m,Min
• Voltage：380V 50Hz 3phases
• Thickness of Material：0.3mm-0.9mm
• Weight：3200kg
• Key Selling Points：High-Accuracy
• Dimension：4700*1600*2480mm
• Servo Motor：2.3kw
• Main Motor：5.5kw
• Roller Material：Cr12
• Forming Stations：12
• PLC Brand：Xinjie
• Transmission：Gear
• Thickness of Structure：30mm
• Shaft Diameter：50mm
• Transport Package：with Water Proof Plastic Film Cover
• Specification：60*28
• Trademark：ZHONGHENG
• Origin：China
• HS Code：8455221000
• Production Capacity：50 Sets,Months

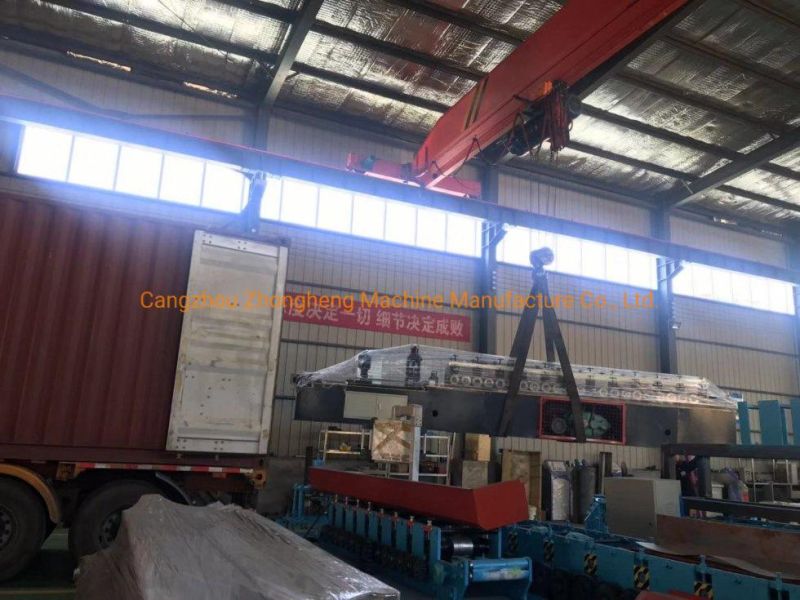

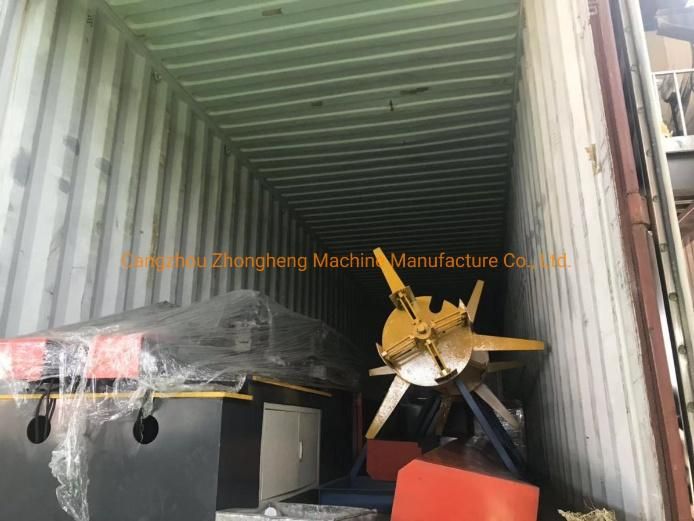

Suitable materialPPGI  GI  ALCoil Width as customThickness0.3-0.5mm as customPower380V 50Hz 3Phase  as customMain motor5.5KW SiemensHydraulic motor4KW SiemensSpeed45m/minForming stations12 rows Roller materialCr12 steel with vacuum heat treatment HRC57°-60°Shaft material45# steel quenched and temperedShaft diameter50mmDriveGearScreem HMI Delta , Touch ScreenPLC Delta , SiemensProcessing precisionWithin 1mmSize 4.6m×1.5m×1.2mWeight2.5TPackage and shipment


Company information
