• Model NO.：CT9325E
• CNC or Not：not CNC
• Voltage：380V
• Input Power：18.75kw
• Working Speed：0.6-6.0m,Min
• Glass Thickness：3-20mm
• Weight：2800kg
• OEM：Yes
• Machine Size：6.6X1.0X2.6m
• Max. Glass Width：2.5mm
• Transport Package：Film and Plywood Case
• Specification：6.6x1.0x2.6m
• Trademark：hiwoc
• Origin：China
• Production Capacity：200,Year

Basic Info.

Model NO. CT9325E CNC or Not not CNC Voltage 380V Input Power 18.75kw Working Speed 0.6-6.0m/Min Glass Thickness 3-20mm Weight 2800kg OEM Yes Machine Size 6.6X1.0X2.6m Max. Glass Width 2.5mm Transport Package Film and Plywood Case Specification 6.6x1.0x2.6m Trademark hiwoc Origin China Production Capacity 200/Year

Product Description

Machine Introduction
The machine is glass 9 motors straight line edging machine,, used for grinding and polishing the bottom edge and edge of flat glass. A special telescopic platen is used to grind glass of different thicknesses. The machine is easy to operate and stable. The front rails can be moved in parallel to adjust the thickness of the glass for easy and precise operation. The chamfering grinding wheel adopts pallet, and there is no vibration during grinding. The main transmission is frequency conversion speed regulation.

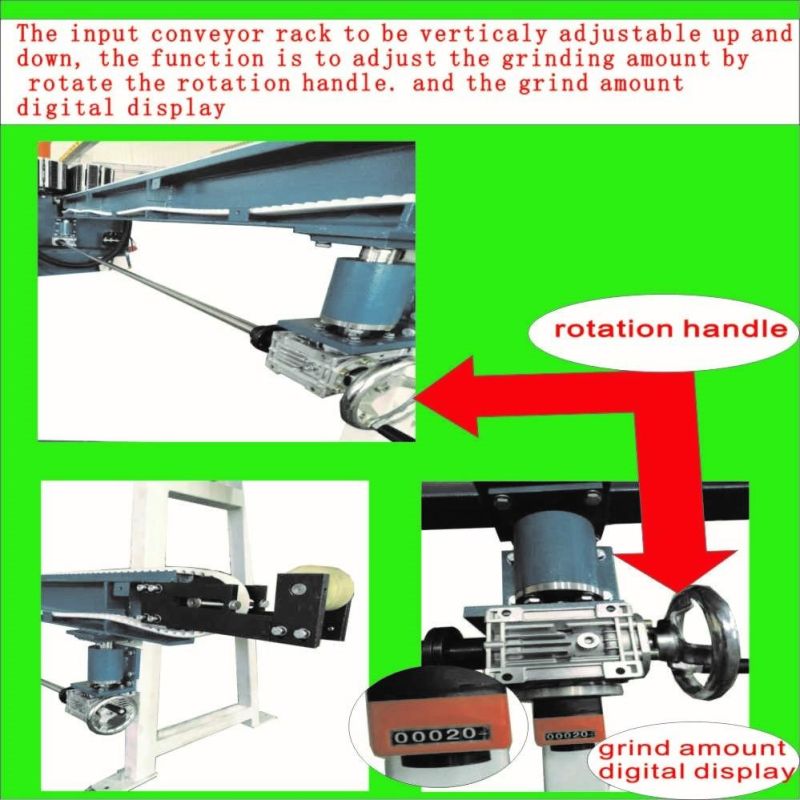

The special part is the  input conveyor rack to be vertically  adjustable up and down ,the function is to adjust the grinding amount by rotate the rotation handle ,and the grind amount  digital display.

Technical parameters
Wheels: 9 .
working speed: 0.6-6.0m/min
Max. arris width: 2.5mm
Min. glass size: 60mm
Glass thickness: 3-20mm
Total power: 18.75kw
Total dimension: 6.6x1.0x2.6m
Total weight: 2800kg

1#:Diamond wheel 150*12*8*8  100#	2#:Diamond wheel 150*12*8*8 240#	3#:Resin wheel 130*12*15*10 240#
4#:Polishing wheel 130*60*35	5#:Resin wheel 130*12*15*12 240#	6#:Polishing wheel 130*60*35
7#:Resin wheel 150*12*15*10 240#	8#:Polishing wheel 150*70*40	9#:Polishing wheel 150*70*35

Product advantage:

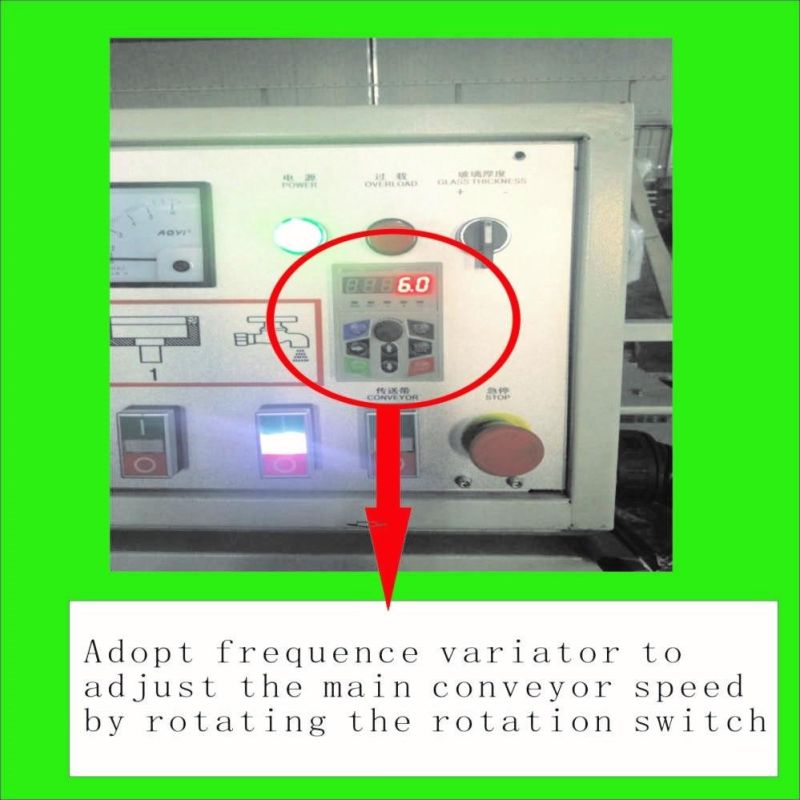

1. Adopt frequency variator as main transmit system,high or low speed all smooth and no vibration, low noise.

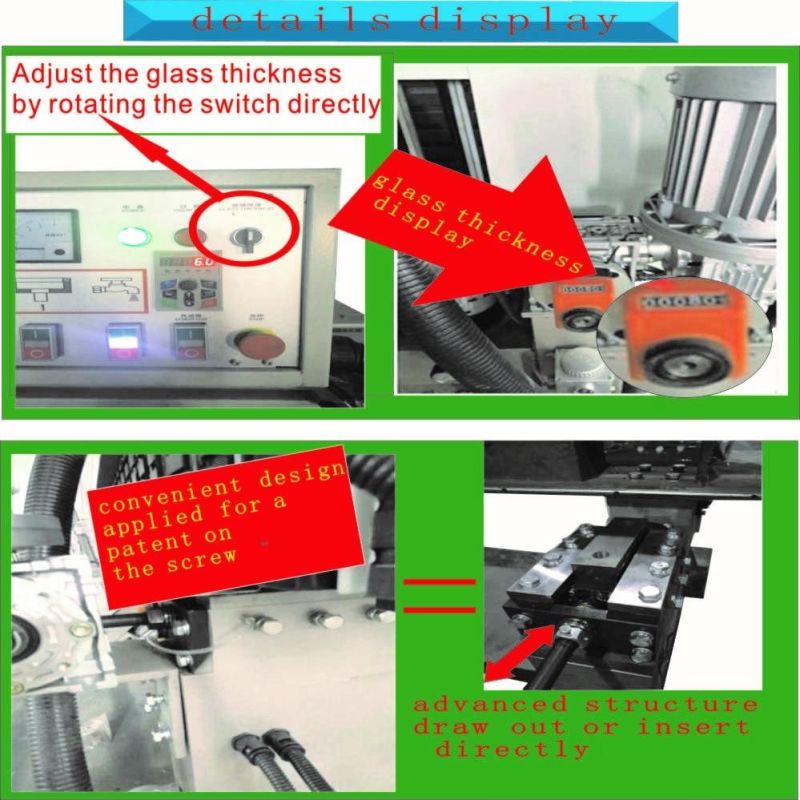

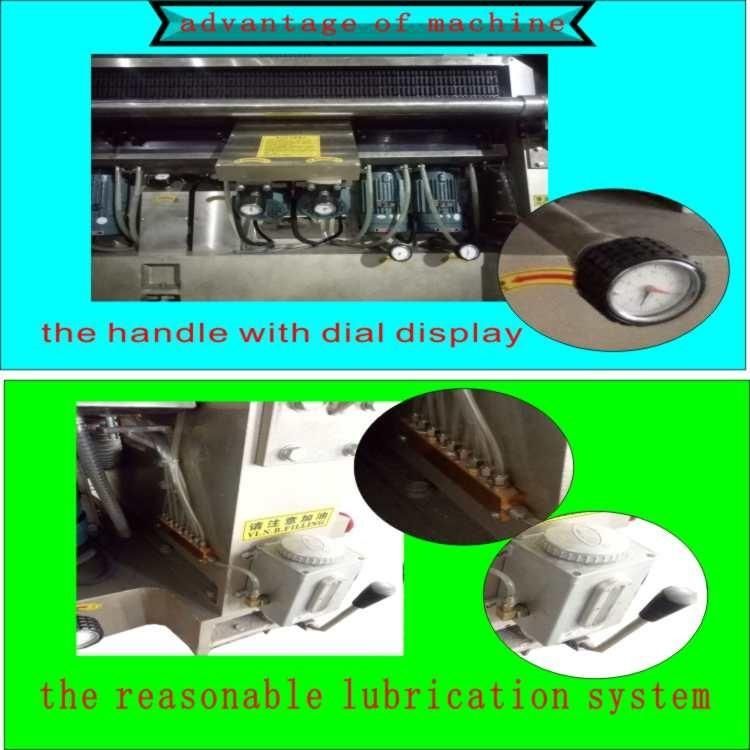

2. Digital display glass thickness.3) Adopt manual filling function lubrication system , easy to maintain the skateboards which for support grinding motors.
4) The last motor for polishing flat bottom glass, adopt double speed system motor.

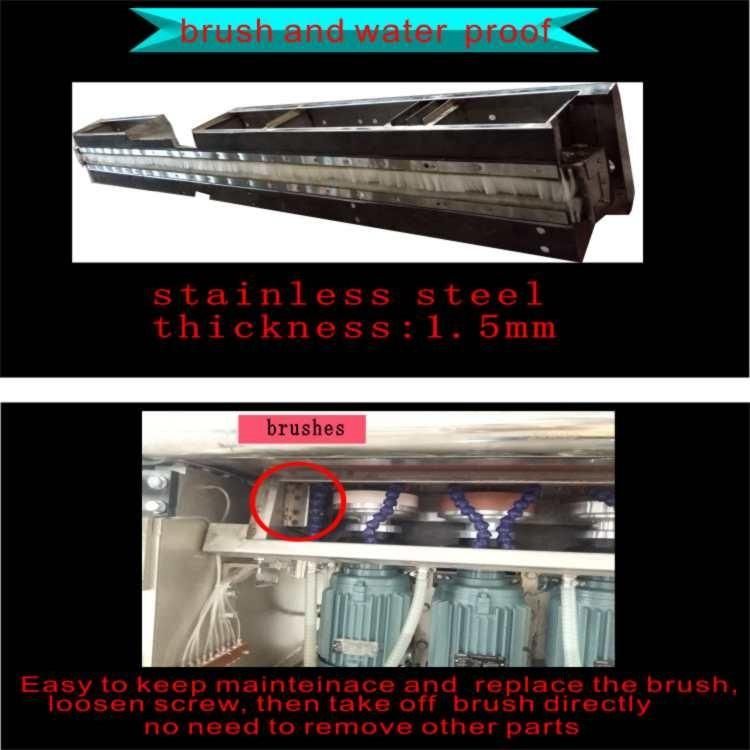

5)  4 layer waterproof brush, easy to replace.
6) Advanced front beam configuration.Exclusive design of straight pallets for easier replacement and maintenance.
7) Front and rear rails: high quality cast iron, not easily deformed.

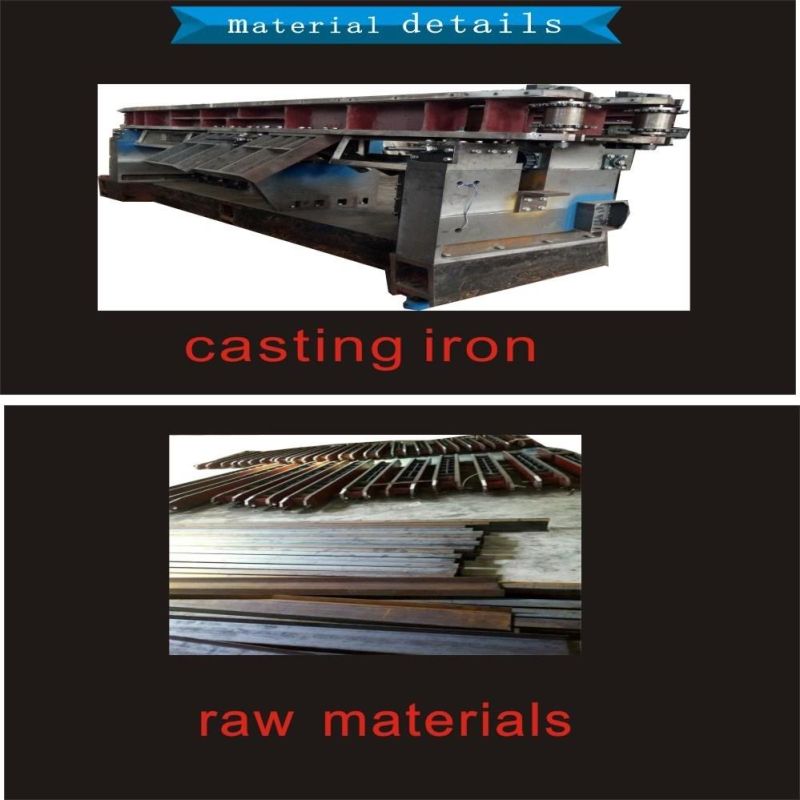

8) Main machine body, supporting pillar, all adopting high quality iron casting.
9) Dovetail grinding head plate: high quality cast iron, professional processing, no gap, stable and vibration-free during work.
10) Waterproof brush: high elasticity, high temperature resistant.
11) The pads and chain are adopted famous brand in China. The front and rear splints are all branded "lobster", and the chain adopts the "Donghua" brand in Hangzhou.
BSK9325 Main parts list

Name	Description	Quantity	Brand

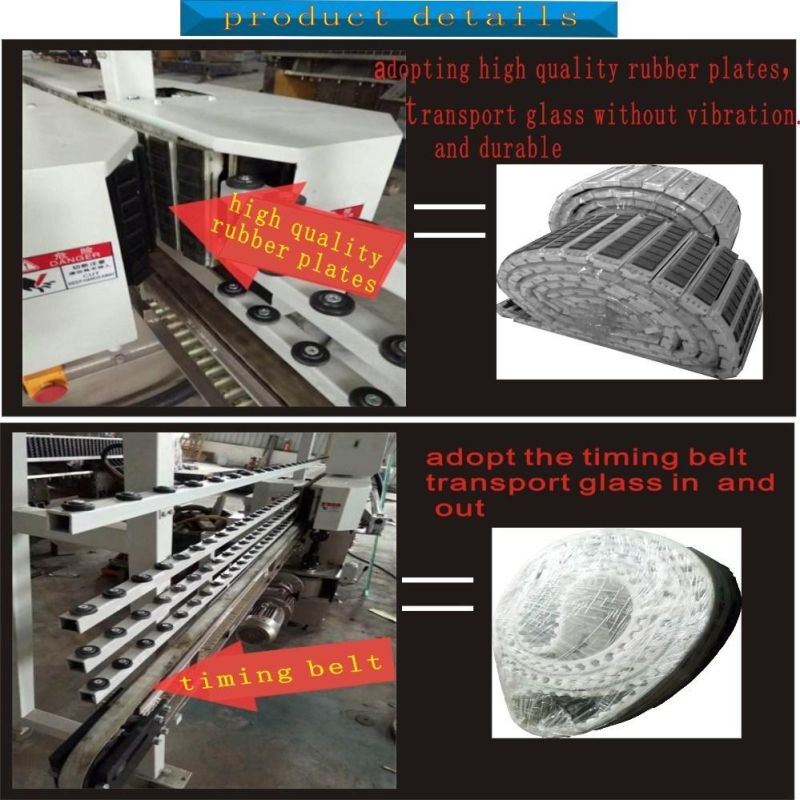

Front and rear platen	Special stretch black film, more durable and wearable	Front:98 pcs Rear:96 pcs	LOBSTER
Rubber pads	special stretchy rubber
Chain	good tensile strength	4 set	DONGHUA
Waterproof brush	High elasticity and high temperature resistant wire

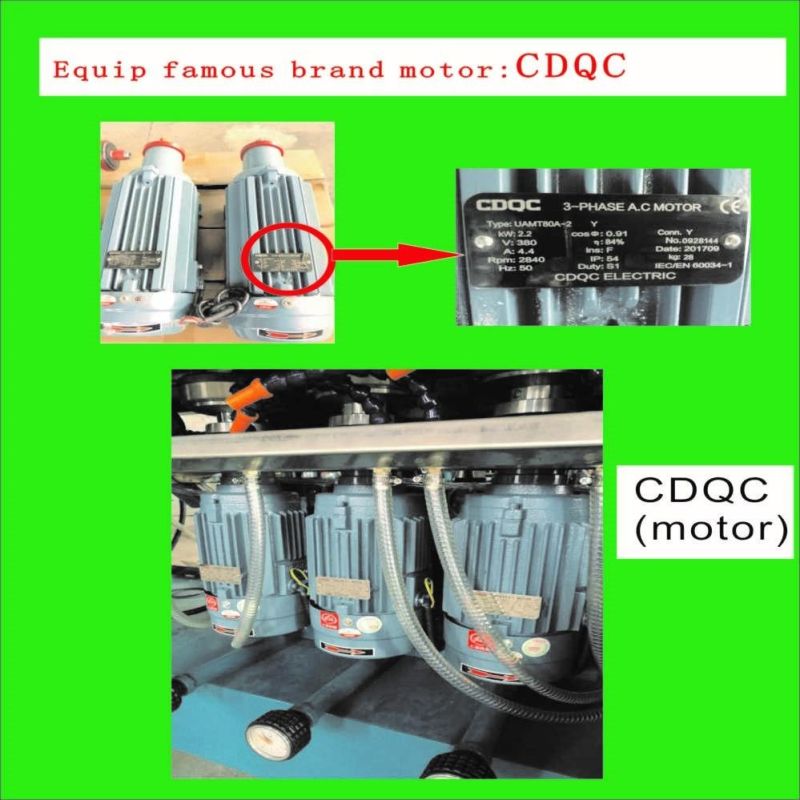

Motor P2/2.2 KW	For flat bottom glass grind	4 set	CDQC
Motor High and low speed P4/1.5-2.2KW	The last motor for flat bottom glass grind	1 set	CDQC
Motor P2/2.2 KW	For glass chamfering grind	2 set	CDQC
Motor P2/2.2 KW	For glass chamfering grind	2 set	CDQC
Variator speed control motor P4/2.2 KW	For the whole machine transmission	1 set	XL-motor
Glass thickness drive Motor P4/0.25 KW	For the glass thickness adjustment	1 set
Water pump motor0.25 KW	For water circulation from  water tank	1 set

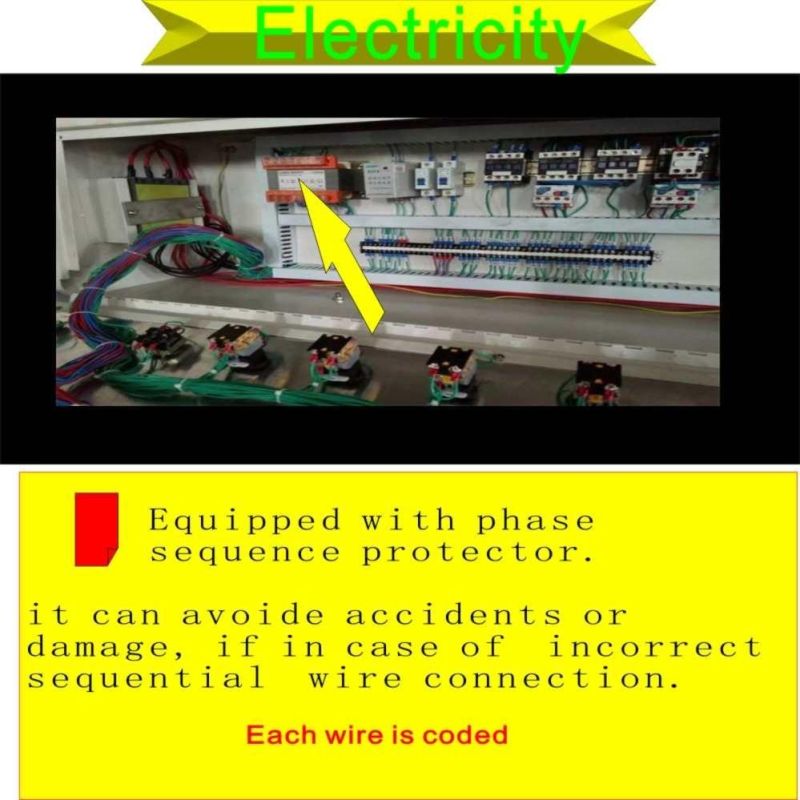

Control transformer		1 set	CHNT
Thermal relay		12 pcs	CHNT
A.C. contactor		12 pcs	CHNT
On-off button		12 pcs	CHTBO
Water tank		1 pcs
