• Model NO.：ZY-HF32
• Pipe Diameter：13-38mm
• Pipe Thickness：0.6-1.8mm
• Pipe Shape：Round
• Uncoiler：Double-Head or Single-Head
• Solid State High Frequency：100kw
• Cutting：Flying Saw
• Main Motor：75kw
• Color：as Your Requirement
• Max. Speed：90m,Min
• Transport Package：Rain-Proof Package, Shipping
• Trademark：Zhangyun Machinery
• Origin：Zhangjiagang City
• HS Code：8515219000
• Production Capacity：10sets,Month

Basic Info.

Model NO. ZY-HF32 Pipe Diameter 13-38mm Pipe Thickness 0.6-1.8mm Pipe Shape Round Uncoiler Double-Head or Single-Head Solid State High Frequency 100kw Cutting Flying Saw Main Motor 75kw Color as Your Requirement Max. Speed 90m/Min Transport Package Rain-Proof Package, Shipping Trademark Zhangyun Machinery Origin Zhangjiagang City HS Code 8515219000 Production Capacity 10sets/Month

Product Description

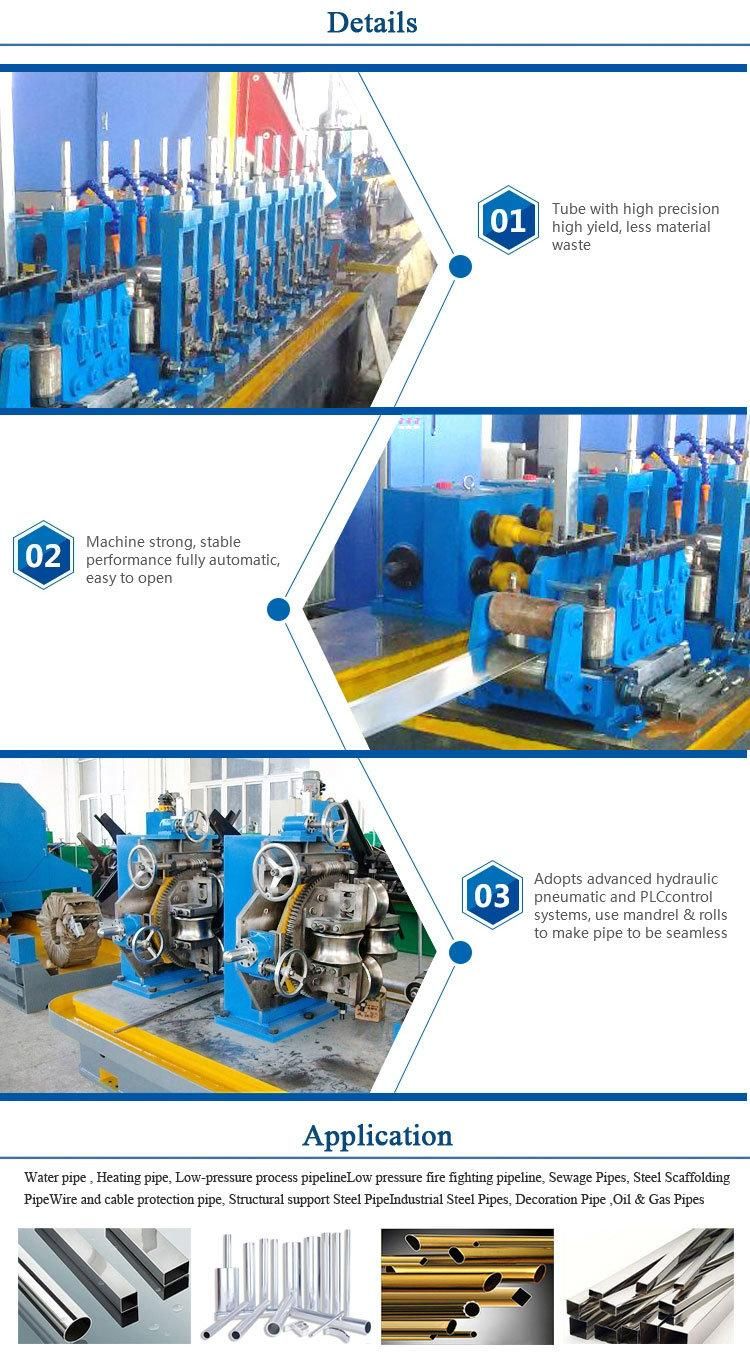

Pipe Making Mill
Technical Paramters
INCOMING RAW MATERIAL

Raw material	HR,CR carbon steel coil
Tensile Strength	σb≤600Mpa
Yield Strength	σs≤315Mpa
O.D of steel coil	Max. Φ1200mm
I.D of steel coil	Φ508mm
Weight of steel coil	Max. 1.5 ton/coil
Round Pipe Wall thickness	0.6 ~1.8mm
Strip condition	Slitting edge
Strip thickness tolerance	Max. ± 5%
Strip width tolerance	± 0.1mm
Strip camber	Max. 5mm/10m
Burr height	≤ (0.05 x T) mm (T-strip thickness)

    MACHINE CAPACITY

Round pipe	Φ13~ Φ38mm *0.6 ~ 1.8mm
Cutting length	4 ~ 12m
Length tolerance	Cold saw ± 2.0mm, Hot Saw ± 3.0mm
welding speed	0~90m/min
Strip storage	Vertical accumulate loop
Main mill driver motor	DC75kw
Solid state high frequency	GGP-100kw


Working Process
Double-head un-coiler →→Strip-head Shearer & TIG butt welder station →→Horizontal spiral accumulator group →→Forming M/C (Main driving unit + Flattening Entry unit + Breakdown section + Fin pass section + Seam guide unit + High frequency induction welding system + Squeeze welding roller unit + Outside scarfing unit + Horizontal ironing stand) →→ Emulsion water Cooling section →→ Sizing M/C (Main driving unit  + Sizing section + Speed testing unit + Turk straightener + Vertical pull-out stand) →→ NC flying saw under computer control →→ Run-out table



FAQ:Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.

Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.

Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.

Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
     2) We welcome you visit us and test machine by yourself in our factory.
 Q: what is the MOQ?
A: One set

Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.

Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
