• Model NO.：Lmb-a-140
• Input Voltage：380V 50Hz
• Input Power：3.0kw
• Air Pressure：0.4~0.6MPa
• Air Consumption：0.2L,Time
• Oil Capacity：25L
• Profile Width：≤140mm
• Combining Cylinder Movement：98mm
• Locator Adjustment Range：115mm
• Overall Dimension：1400*1200*1300mm
• Transport Package：Wooden Box
• Specification：1400*1200*1300mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：40 Window Per Day

Basic Info.

Model NO. Lmb-a-140 Input Voltage 380V 50Hz Input Power 3.0kw Air Pressure 0.4~0.6MPa Air Consumption 0.2L/Time Oil Capacity 25L Profile Width ≤140mm Combining Cylinder Movement 98mm Locator Adjustment Range 115mm Overall Dimension 1400*1200*1300mm Transport Package Wooden Box Specification 1400*1200*1300mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

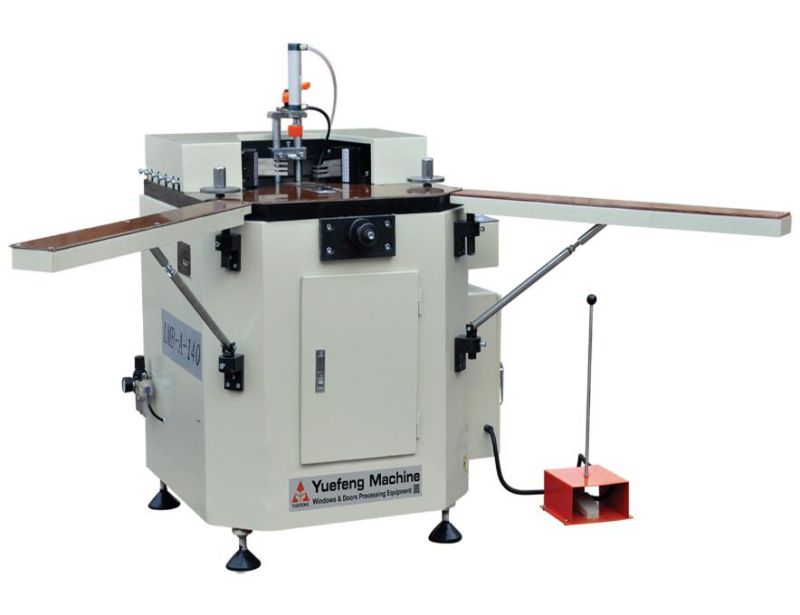

      2021 Good Quality Aluminium Crimping Machine for Window Door




1.Used for 90°corner combining.
Details:
2.Corner crimping machine with air filter, some factory don't have for saving cost.
3.Adopt plunger hydraulic station, smooth operation, low noise and long life.
Compared to the gearwheel bite,the cost difference is about 1500-2000yuan,
and gearwheel bite hydraulic station won't have problem at first 8 month,
but later will have pulley phenonmenon and don't have power.
4.After finished crimping, the crimping knives go back first then the positioning block go back,
for preventing the corner is not firm enough.
5.Now adopt Taiwan Delta PLC to control the action instead of time Relay,
smooth operation ( time relay cost is about 18-20 yuan, but plc cost is about 2000yuan).


Technical Parameter:

Model	LMB-A-120
Input voltage	380V 50Hz(according to your requirement)
Oil pump motor power	2.2kw
Oil pump rated pressure	20Mpa
Working Air pressure	0.4~0.6MPa
Air consumption	20L/Time
Oil capacity	20L
General pressure of corner crimping	60KN
Profile processing height	≤120mm
Combining cylinder movement	98mm
Locator adjustment range	80mm
Overall dimension	1300×1200×1300mm
After package dimension	1430x1280x1460mm
Gross Weight	500kg

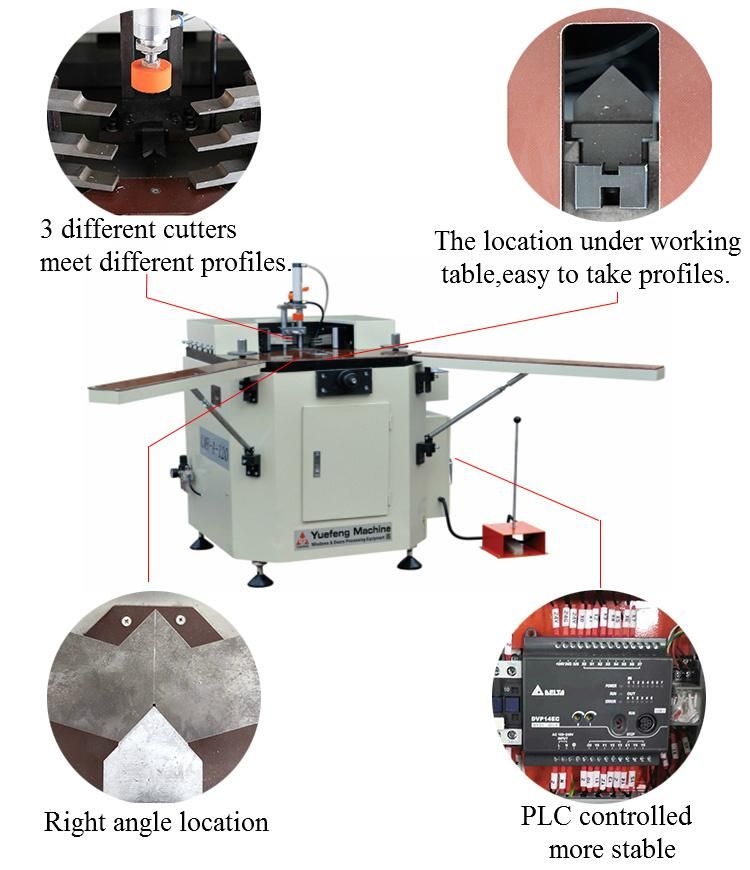

Details Pictures:

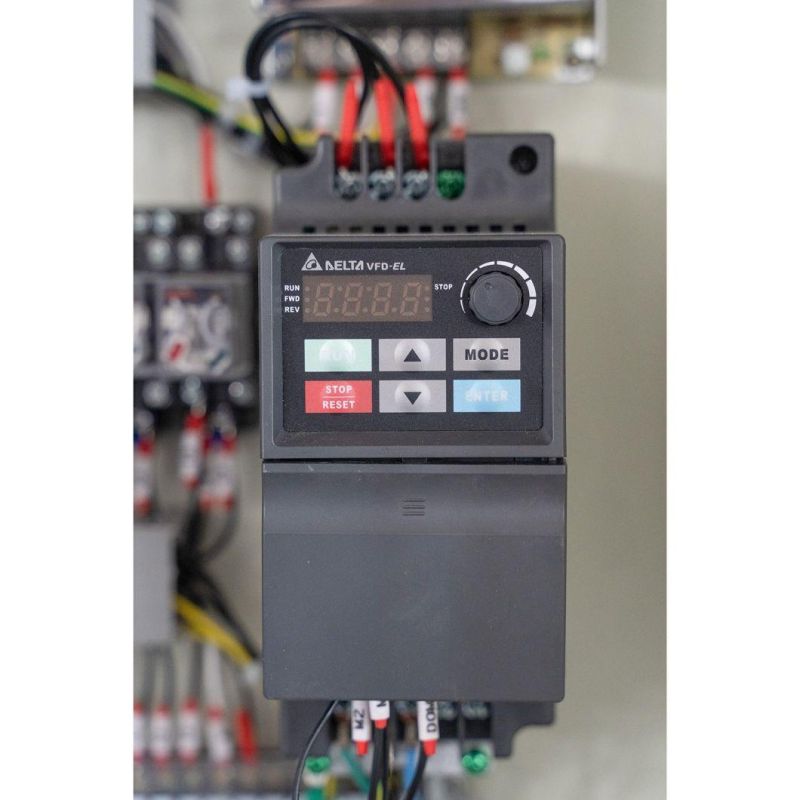

Taiwan Delta PLC

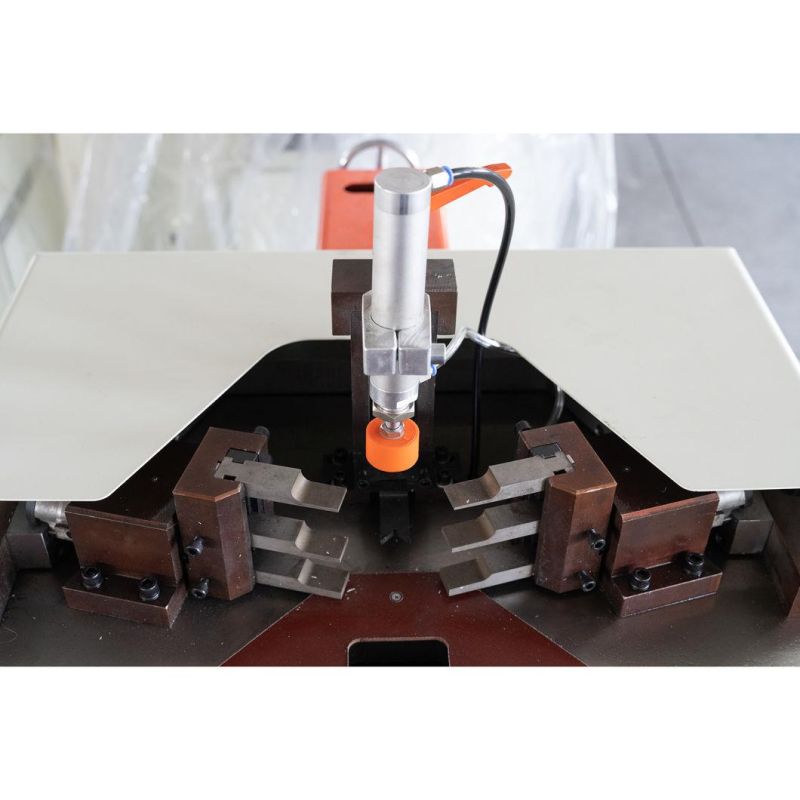

 The knives is adjustable according to different profile.

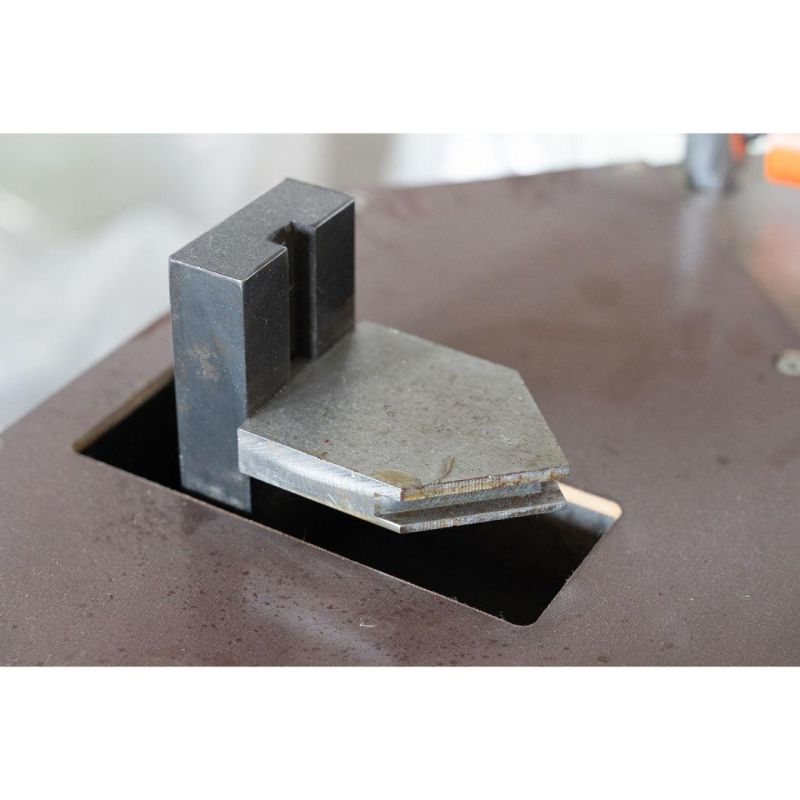

Sinking positioning block, convenient for unloading and loading profile.

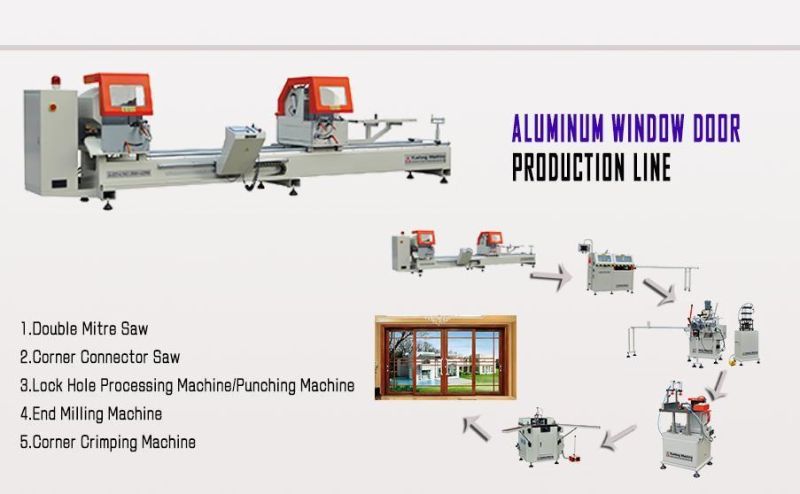

Production process of making doors and windows



 FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
