450mm Sawblade Aluminum Digital Double Head Cutting Machine
JINAN YBKE MACHINERY CO., LTD.- After-sales Service：on-Site and Online Technical Support
- Warranty：2 Years for Main Components
- Condition：New
- Certification：ISO, CE
- Automatic Grade：Semi-Automatic
- CNC or Not：not CNC
Base Info
- Model NO.：LJB2A-450*3700
- Voltage：380V
- Power：2*2.2kw
- Air Pressure：0.5-0.8MPa
- Main Motor Rotation Speed：2800r,Min
- Cutting Length：400-3700mm
- Cutting Width：120mm and 160mm
- Cutting Height：120mm and 200mm
- Saw Blade Specification：450*30mm
- Angle Cutting Tolerance：+-5 Degree
- Cutting Profile Surface Roughness：Ra12.5um
- Cutting Angle：90 and 45 Degree
- Max.Repeat Locating Length：0.3mm
- Max.Planeness of Cutting Surface：0.10mm
- Dimension：4500*1300*1650 mm
- Weight：700kg
- Transport Package：Wrapped in Plastic Films or Plywood Case
- Specification：saw blade diameter 450mm
- Trademark：YBKE
- Origin：China
- Production Capacity：30sets,Month
Description
Performance Featrues of double head cutting saw:
This machine is used for cutting PVC and aluminum profiles at angle of 45°,90°
The swaying stable feeder is adopted.
The pneumatic driving system is used in profiles clamping and cutting.
Imported Carbide saw blade gives accurate processing and high endurance.
The two heads can work independently or together.
Cutting off required length and two end angles are available by one processing.
It has the features of easy operation and high accuracy.

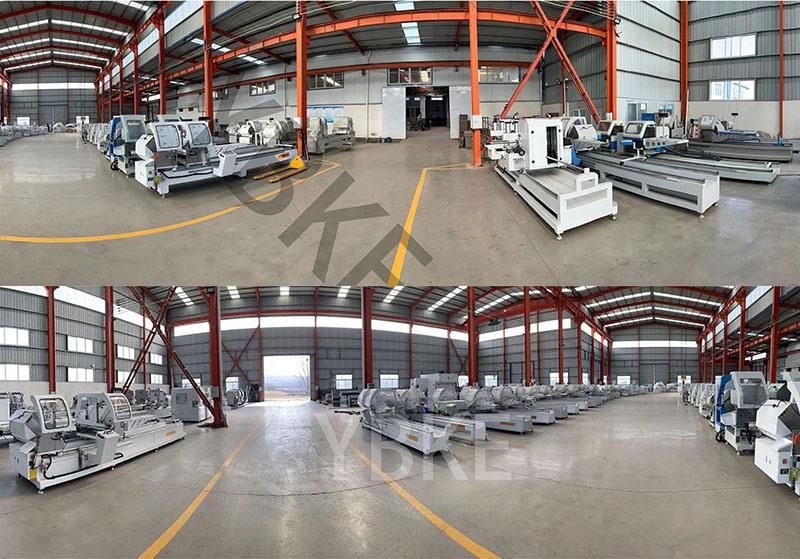

Company information:
Jinan YBKE Machinery Co.,Ltd specializes in the production of insulating glass machine, UPVC and aluminum window & door machine for over 13 years experience. Each machine has been strictly tested before delivery. We can offer customized solutions help customers meet real demands. We hope to establish long-term friendly business relations with you, and realize win-win cooperation. Welcome to visit our factory on-site or online!!!

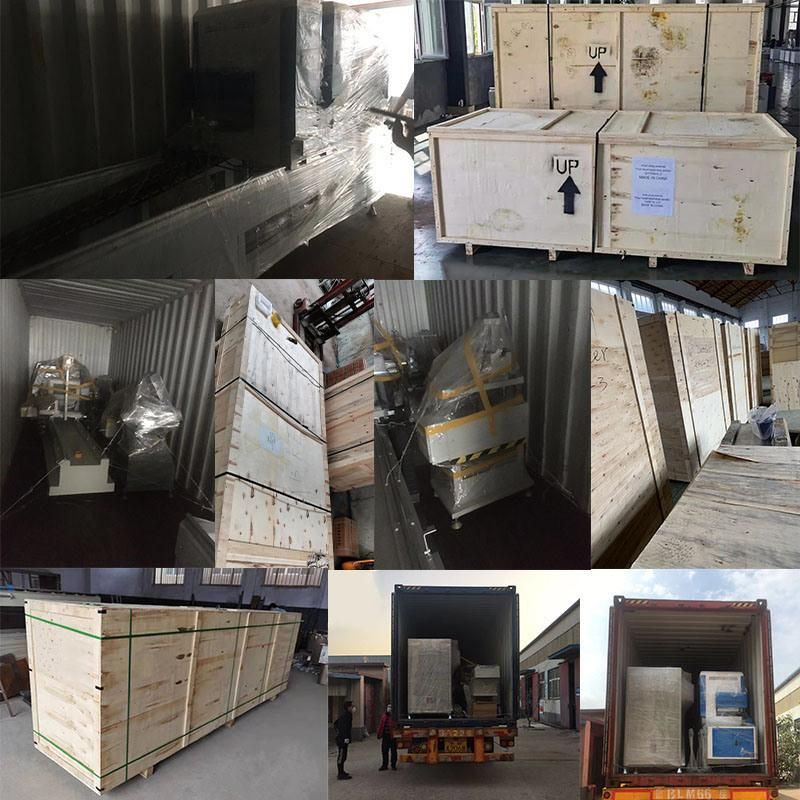

Product Packaging:
1.For full container load, usually wrapped in stretch films or simultaneously fixed with iron frame.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, packed in standard export plywood case.
4.Delivery time: Small and few machines: in 5-10 days after receiving pre-payment.
Big or many machines: more than 25 days after receiving pre-payment.
After-sales Service:
The warranty period of the whole machine is 1 year.
8 engineers can go abroad to provide service.
English Manual and video tutorial. Free training how to install the machine,free training how to use the machine.
Use online contact tools such as Skype WeChat WhatsApp Facebook to provide online services to customers.
We provide free parts and components in warranty period.
We offer wearing parts at agent price.
Exhibition:
Customers Visiting:

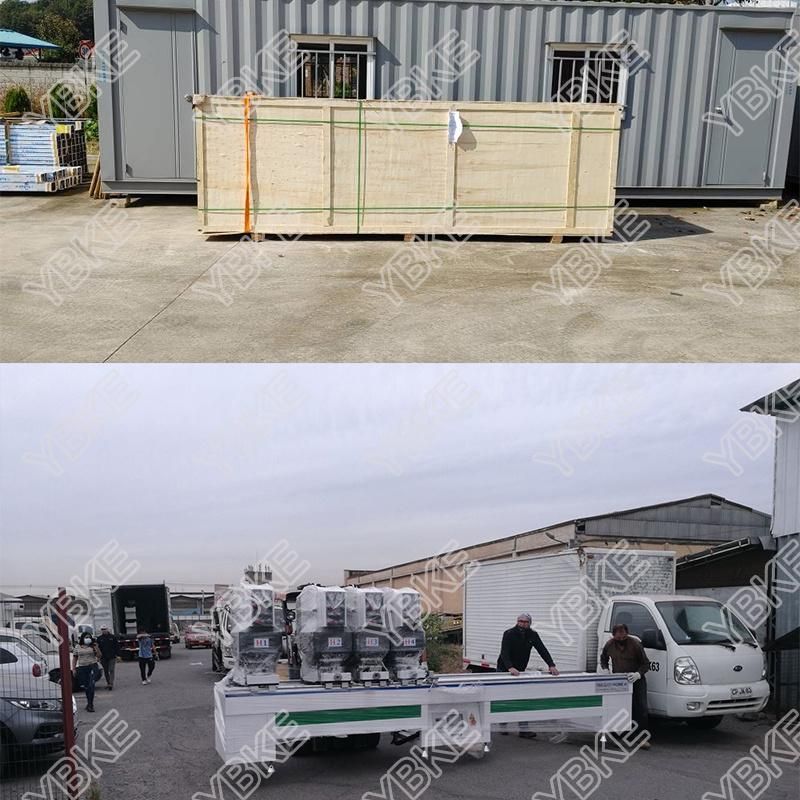

Customers received machines:
FAQ
1.Question: How to ensure product quality?
Answer:
1).We have machining center, parts and components are produced by ourselves to ensure the precision.
2).Before the machine leaves our factory, we will only ship the machines after debugging and strictly test.
3).Imported electric components, extend the service life.
4).Main electric component is with 2 years warranty.
5).The after-sale service shall be lifelong responsibility system.
2.Question:If our price is higher than another company or factories?
Answer: Please check the difference of the machine of parts ,service and guarantee, especially the machine inner electric parts, sometimes, if the machine have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
3.How to install our machines in 2021?
Answer:We record the installation and debugging videos and will send you all the circuit diagrams.
We could establish an after-sale service group of only your company after the machines arrives.After all we have had 1 year online installation and debugging experience, please be rest assured.
4.What you can do if my machines have problems?
Answer:
1) We can send you free components if your machines are in guarantee time.
2) We can send our engineers to repair your machines.
5.What free accessories or discount can I get if order now?
Answer:Message Linda for details!
