Window Door Making Machine Glazing Bead Cutting Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Semi-Automatic
  • CNC or Not：not CNC
  • Voltage：380V
  • Model：Ljz-50

Base Info

  • Model NO.：Ljz-50
  • Input Voltage：380V 50Hz
  • Input Power：2.5kw
  • Air Pressure：0.4~0.6MPa
  • Air Consumption：100L,Min
  • Spindle Speed：2800r,Min
  • Cutting Width：116mm
  • Cucutting Height：100mm
  • Overall Dimension：2200*620*1350mm
  • Cutting Length：320~2000mm
  • Transport Package：Wooden Box
  • Specification：2200*620*1350mm
  • Trademark：YueFeng
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：30 Window Per Day

Description

Basic Info.

Model NO. Ljz-50 Input Voltage 380V 50Hz Input Power 2.5kw Air Pressure 0.4~0.6MPa Air Consumption 100L/Min Spindle Speed 2800r/Min Cutting Width 116mm Cucutting Height 100mm Overall Dimension 2200*620*1350mm Cutting Length 320~2000mm Transport Package Wooden Box Specification 2200*620*1350mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 30 Window Per Day

Product Description

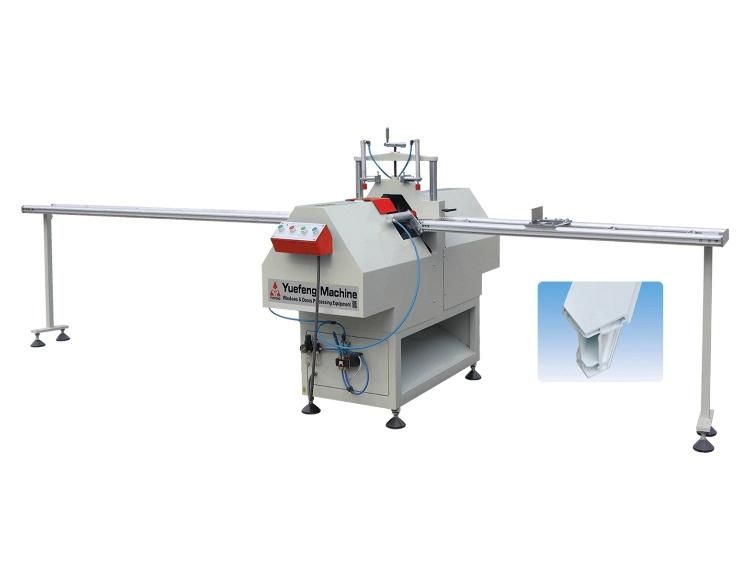

    Window Door Making Machine Glazing Bead Cutting Machine
Window Door Making Machine Glazing Bead Cutting Machine



1.The machine once cut two V-notch mullion with the right angle;
2.It has features of high accuracy and efficiency.

Model LJZ-50
Input voltage380V 50Hz
Input power2.5 kw
Air pressure0.4~0.6MPa
Air consumption100L/min
Motor rotating speed2800r/min
Cutting length320~2000mm
Cutting width≤116mm
Cutting height≤100mm
Overall dimension2200×620×1350mm



Window Door Making Machine Glazing Bead Cutting Machine
Window Door Making Machine Glazing Bead Cutting Machine
Window Door Making Machine Glazing Bead Cutting Machine
Window Door Making Machine Glazing Bead Cutting MachineWindow Door Making Machine Glazing Bead Cutting MachineFAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
