• Model NO.：HKY-roll forming machine
• Thickness Range：0.2mm-1.0mm
• Type：Roll Forming Machine
• Roll Stations：14
• Main Moter Power：5.5kw
• Brand Name：Hky
• Transport Package：Export Packing
• Specification：9.2*1.5*1.4M
• Trademark：HKY
• Origin：China
• HS Code：8455
• Production Capacity：500sets,Year

Basic Info.

Model NO. HKY-roll forming machine Thickness Range 0.2mm-1.0mm Type Roll Forming Machine Roll Stations 14 Main Moter Power 5.5kw Brand Name Hky Transport Package Export Packing Specification 9.2*1.5*1.4M Trademark HKY Origin China HS Code 8455 Production Capacity 500sets/Year

Product Description

Color Steel roof rolling machine
Other name: cold roll forming machine, steel tile roll forming machine.

 Components of whole line:
1.  De-coiler
2.  Shearing Device
3. Forming System
4. Cutting device
5. Run-out Table
6. Electrical Sytem

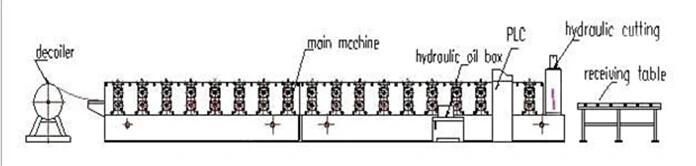

Process flow:


Technological Parameters:

1. Hydraulic Un-coiler

1. Width of raw material: 1250mm
2. Max Capacity: 10000kgs
3. Max out diameter of coil: 1600mm
4. Inner diameter of coil: 500-600mm
5. Hydraulic feed and brake
6. The power of motor: 5.5kw

2. Shearing Device

1. Shearing way: Manual
2. The material of blade: Cr12 with Heat treatment HRC60-62

3. Main Forming System

1. Feeding width: 1219mm
2. Product width: 1000mm
3. Height of waves: 37mm
4. Thickness of sheet: 0.35-0.6mm
5. Material: GI sheet coil or Colored sheet coil
6. Roller stations: 14-18rows
7. Material of Roller: C45 steel
8. Surface of Roller: Chrome plating
9. Diameter of main shaft: 80mm   C45steel, modulation
10. Main Bearings: 60211
11. Power of main motor: 5.5kw  Servo motor
12. Forming Speed: 0-15m/min



4. Cutting device

1. Oil pump station  1set
2. Motor power of Oil pump station: 4kw
3. Forced air cooling device available
4. Cutting mould: 1set
5. Material of blade: CR12 with heat treatment HRC60-62
6. Pressure of cutting: 15tons

5. Run-out Table

1. Frame: Angle bar or steel tube welded
2. Length: 3m
3. Quantity: 1 pc

6. Electrical System

1. PLC and HMI touch Screen
2. Automatic length measurement
3. Automatic quantity measurement
4. Length measurement: Rotary Encoder
5. Over current protection for control system, aviation plugs
6. Cutting off type: Paused to cut, moving automatically after cutting.
7. Power: 440V 60Hz


 We also can design and manufacture as per your request!

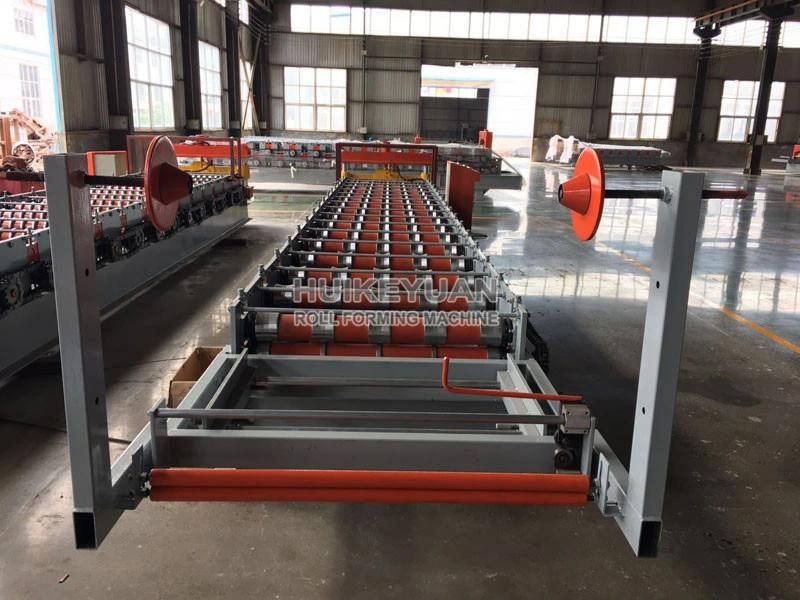

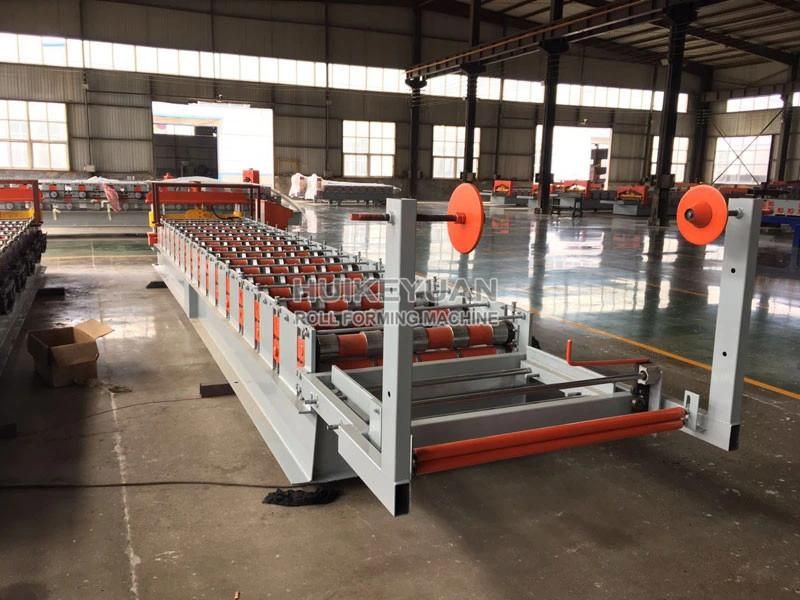

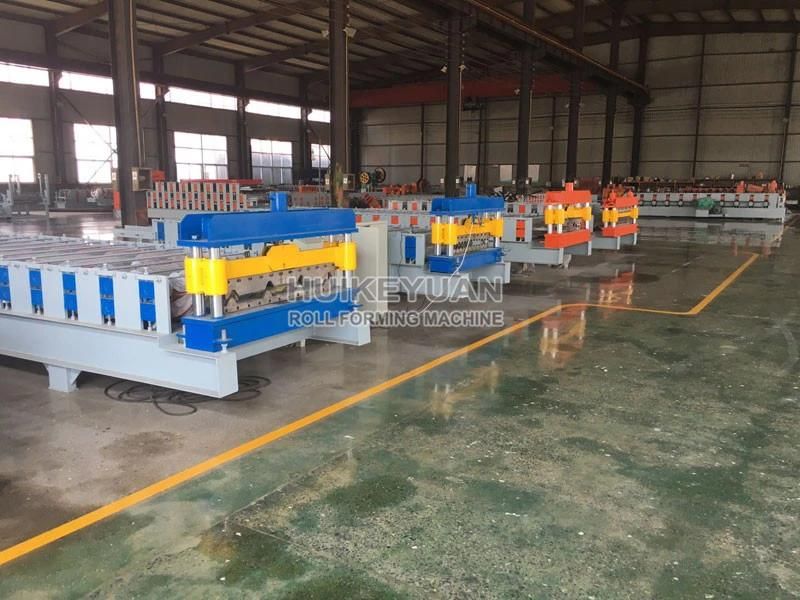

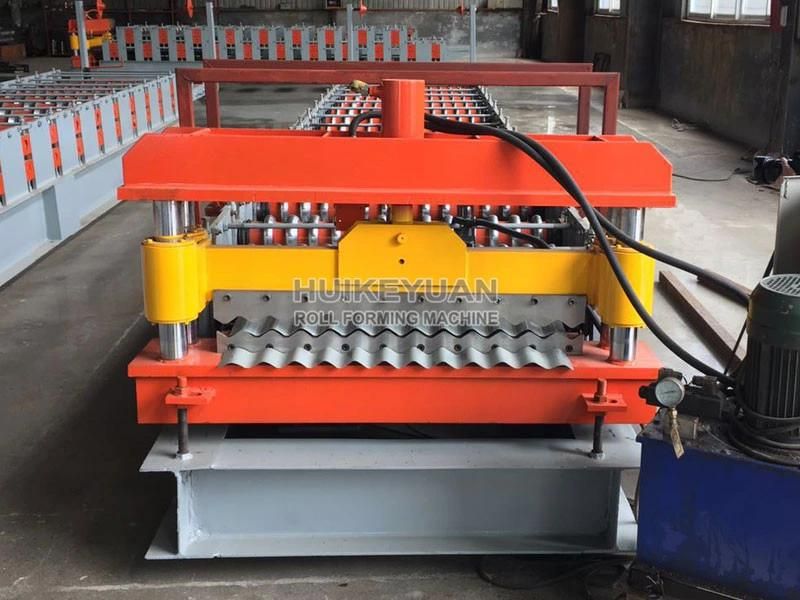

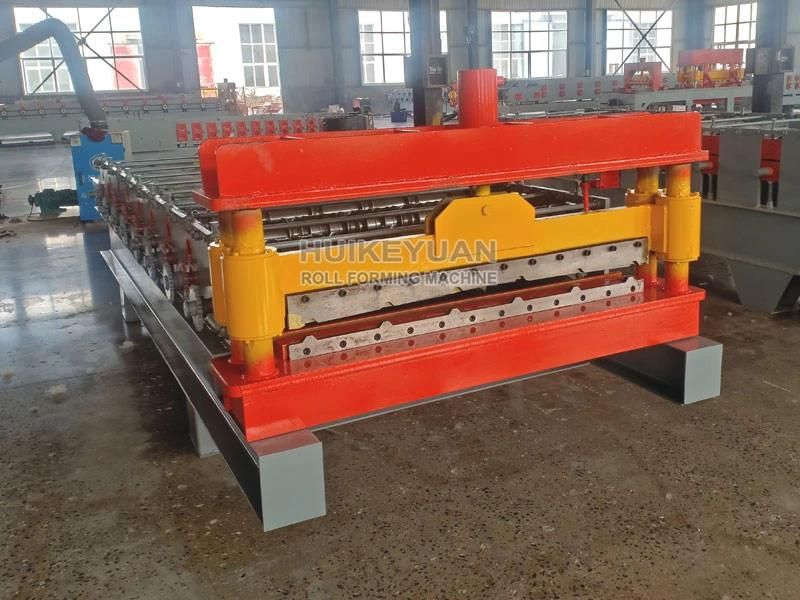

Machine Photoe:

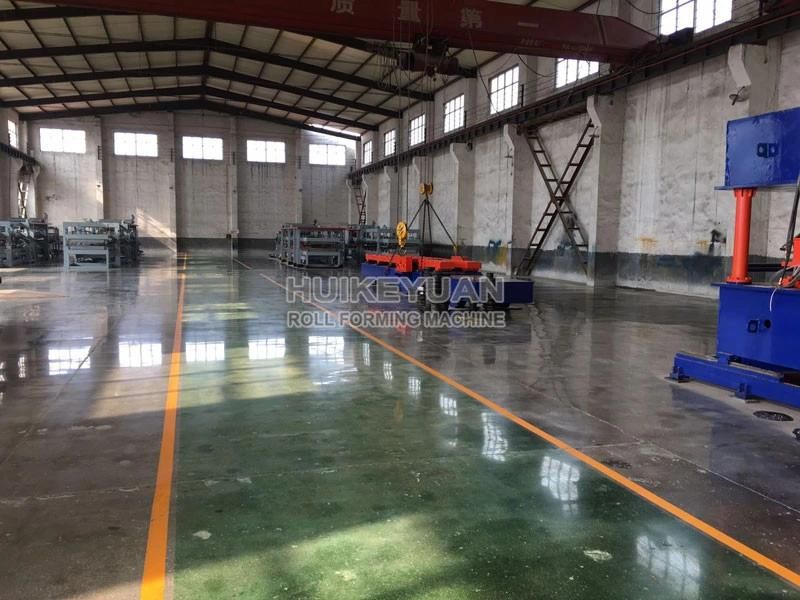

Our company:




Contact me:

Lisa Yang (Sales Manager)
BOTOU HUIKEYUAN ENGINEERING CONTROL CO.,LTD

Add: Fuzhuang Development Zone Botou City, Hebei, China

we warmly weclome you to visit our factory!

Advantage of our roll forming machine

High quality

Lower cost

Durableness

High efficiency

Reliable working

Low failure rate

Low energy consumption

Trouble free after sales service
