• Model NO.：QT4-20
• Pallet Size：900*500mm
• Color：Client Requirement
• Vibration Frequency：4600r,Min
• Block Type：Hollow, Solid, Paver Blocks, Curbstone
• Molding Cycle：15-20s
• Rated Pressure：16MPa
• Power：27.5kw
• Transport Package：Nude Package
• Specification：7100*1600*2610mm
• Trademark：SHIYUE
• Origin：China, Shandong
• HS Code：8474802000
• Production Capacity：5000 Sets

Basic Info.

Model NO. QT4-20 Pallet Size 900*500mm Color Client Requirement Vibration Frequency 4600r/Min Block Type Hollow, Solid, Paver Blocks, Curbstone Molding Cycle 15-20s Rated Pressure 16MPa Power 27.5kw Transport Package Nude Package Specification 7100*1600*2610mm Trademark SHIYUE Origin China, Shandong HS Code 8474802000 Production Capacity 5000 Sets

Product Description

Parameters

Overall Dimension	7100*1600*2610mm
vibration frequency	4600(r/min)
Main Vibration Form	Platform Vibration
molding mode	load automatically,vibration molding
Pallet Size	900*500mm
Molding cycle	15-20s
Overall Power	27.5KW
Demolding method	Hydraulic
Applied Products	Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.

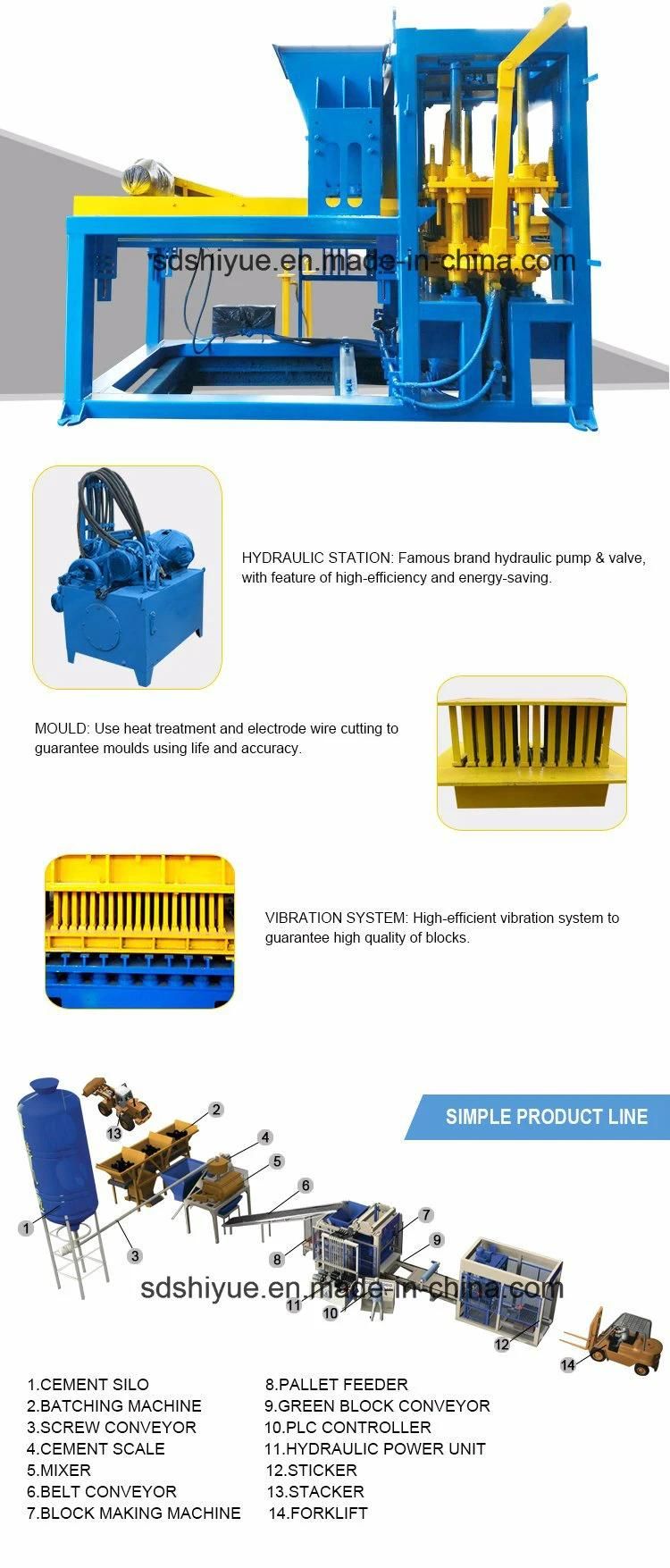

Pictures

Block capacity

Item	Size(L*W*H)	Qty/mold(pcs)	Cycle Molding	Per day(Pcs)
Hollow brick	400*200*200mm	4	15-20s	7200-9600
Porous Brick	240*115*90mm	14	15-20s	20200-26800
Standard Brick	240*115*53mm	28	15-17s	47400-53700

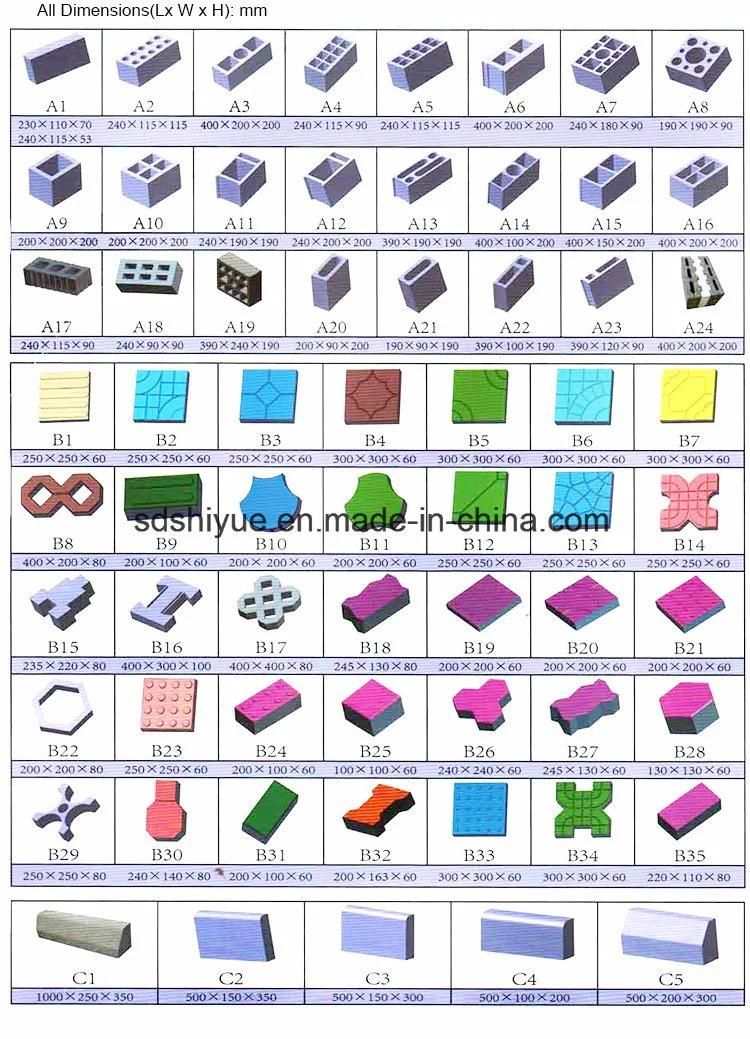

Block sample

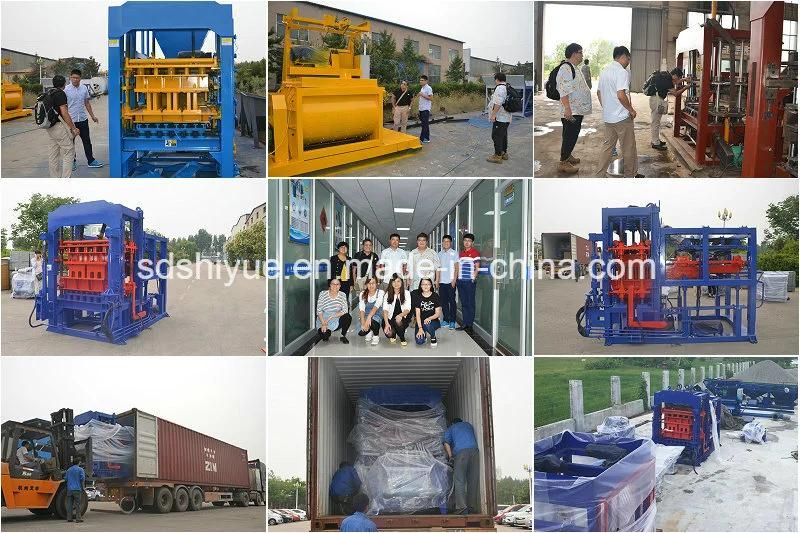

Shipping and delivery

1. The whole brick machine production line equipment is mainly the full container sea shipping,

2. Brick machine equipments finish manufacturing and testing, next to clean up, and then do another paint protection,

3. Before shipment to use plastic film winding, wrapped the entire brick machine in case of water or moisture,

4. Then load brick machines into the container by forklift,

5. During loading to tighten the machine with reinforcement ring in container, so as to avoid the damage by transport bumps on the brick machine.

Our service

Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of build factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material,
capacity and the size of brick)
(3) Welcome to visit our factory and production line anytime

Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time

After-sale:
(1) The engineer will guide to carry out the plant at the clients side.
(2) Set up, fix,and operate
(3) Will not stop training the operator until they are satisfied at clients side.
(4) 24 hours service
(5) Recall clients regularly ,get feedback in time,keep well communication with each other.

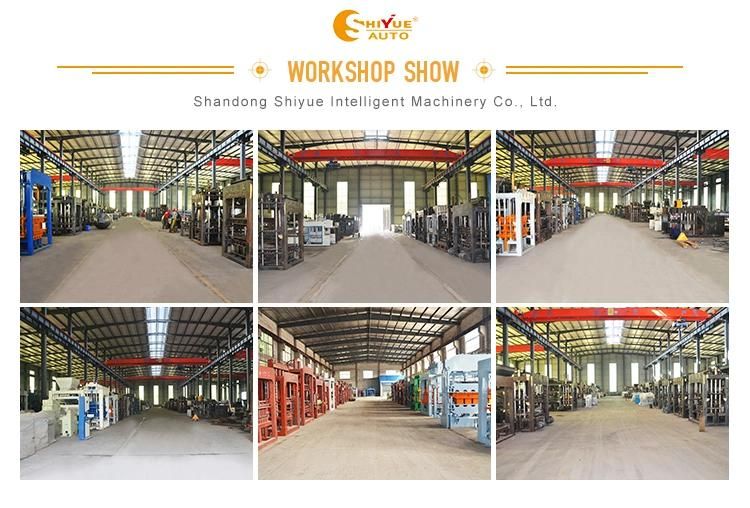

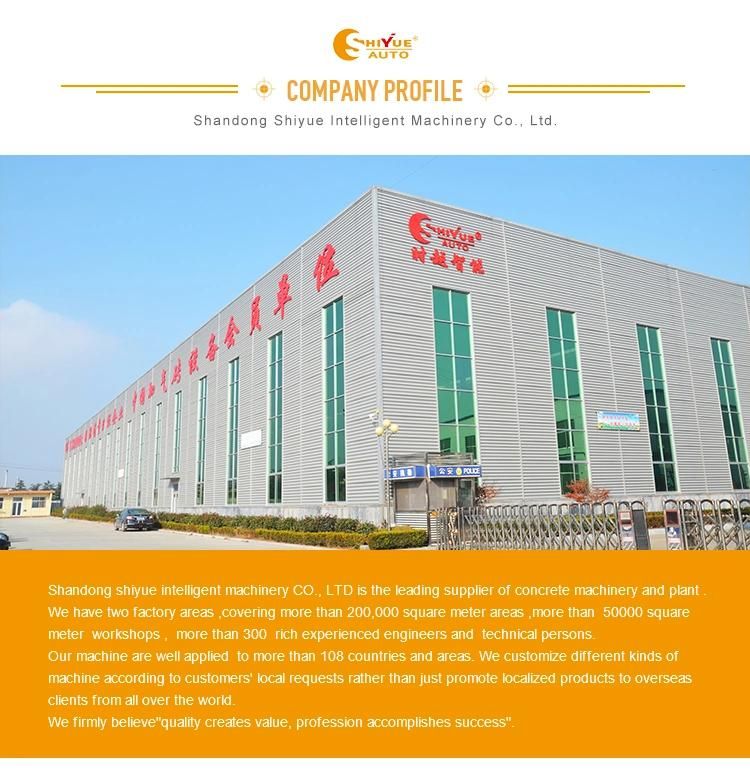

Our factory
Shiyue Machinery is located in Linyi,Shandong. With advanced technologies and rich experiences on manufacture. We have specialized in stationary block machine,mobile block machine, clay block machine, crusher,pipe making machine, pole making machine,concrete mixing plant etc.After 27-year's effort,we have receive good reputation from many countries such as India, the United States, Russia, the United Kingdom, the Philippines, Canada, Australia, South Africa, Pakistan, Brazil, Malaysia, Sri Lanka, Mexico, Nigeria, Kenya etc.What's more,our machines have won'Product patent award',and 'product innovation award' and so on.Shiyue machinery your best choice for your business



FAQ

1.Question:Does the machine could change mold?
Answer:Yes,this machine could change different kinds of mold.The machine could produce interlock, paver size depending on your local requirements.
2.Question:What is the electric voltage and rate?
Answer:Our local electric voltage is 380v, 3phase, 50hertz, the electricl voltage can be revised according to local situation.
3.Question:How about the service life of this machine?
Answer:This machine could work for about 6-10 years if your side maintain well.
4.Question:What's your machine warrenty?
Answer:12 months guarantee,we send more spare parts for you when shipping machine to you.
5.Question: The mode of transportation.
 Answer: by sea, by land or by rail according to customer local need
