Small Size Stand Seam Roofing Panel Forming Machine Self Lock Roll Forming Machine
Cangzhou Zhongheng Machine Manufacture Co., Ltd.- Tile Type：Colored Steel
- Certification：CE
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
Base Info
- Transport Package：Full Assembled
- Specification：4.5X0.85X1.4
- Trademark：ZH
- Origin：Hebei, China
- HS Code：8455221000
- Production Capacity：20 Sets Per Month
Description
Technical Datas clicklock standing seam roof machine
1Material Width 290-600mm
2
Effective Width
220-530mm
3
Thickness of Coil
0.5-0.8mm
4
Application
standing seam roof panel
5
Estimated Dimension
1500mmX1100mmX1200mm
6
Total Weight
1.9 Tons
7
Main Power
1.5KW
8
Decoiler
Manual or Hydraulic Decoiler
9
Inner Diameter
508mm
10
Outer Diameter
600
11
Loading Weight
4-5T
12
Forming Speed
0-11m/min
13
Forming Station
6 stations
14
Bracket
Welded with 36 # I-steel
15
Material of Shaft
High Grade forged 45# Steel with 1st Rough Finished and
then 2th Refined Finished16 Diameter of the Roll
60mm
17
Material of Roller
High Quality
Cr12 Quenched HRC58-62 °
18
Processing Technology
Rough Processing ---Refined Processing--Hard Chromium Plating.
19
Material of Rack
Complete Welded Structure of A3 Steel
Plate 20 mm Thickness
20
Transmission
Chain driving
21
Material of cutting blade
Cr12 with Quenched Treatment 60-62 °
22
Cutting system
Hydraulic Stop or Tracking Cutting
23
Voltage
380V/50HZ/3 Phase or as Customer Require

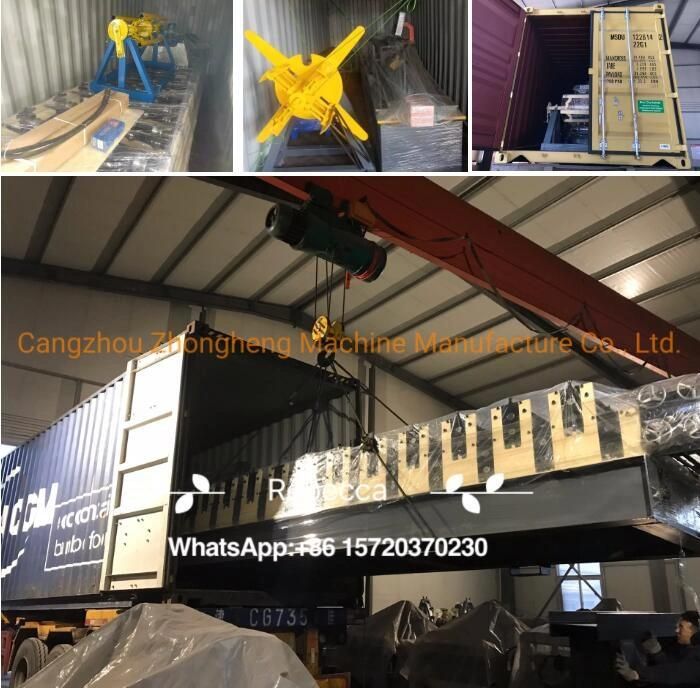

Packing and Shipping
1. Metal roofing sheet roll forming machine iron roofing sheet making machine need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
Company Introduction
FAQ
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .
More information please send inquiry to us , you will get reply within 12 hours !
