• Model NO.：C Purlin Form Rolling Machine
• Customized：Customized
• Condition：New
• Control Type：CNC
• Automatic Grade：Automatic
• Effective：Easy Operation
• Type：Steel
• Method：Roll Forming Machine
• Processing：Steel
• Product：Steel
• Brick Raw Material：Steel
• Automation：Automatic
• Tolerance：1.0mm
• Material Thickness：1.0-3.0mm
• Main Motor Power：11 Kw
• Transport Package：No
• Specification：CE
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：8sets,Per Month

Basic Info.

Model NO. C Purlin Form Rolling Machine Customized Customized Condition New Control Type CNC Automatic Grade Automatic Effective Easy Operation Type Steel Method Roll Forming Machine Processing Steel Product Steel Brick Raw Material Steel Automation Automatic Tolerance 1.0mm Material Thickness 1.0-3.0mm Main Motor Power 11 Kw Transport Package No Specification CE Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 8sets/Per Month

Product Description

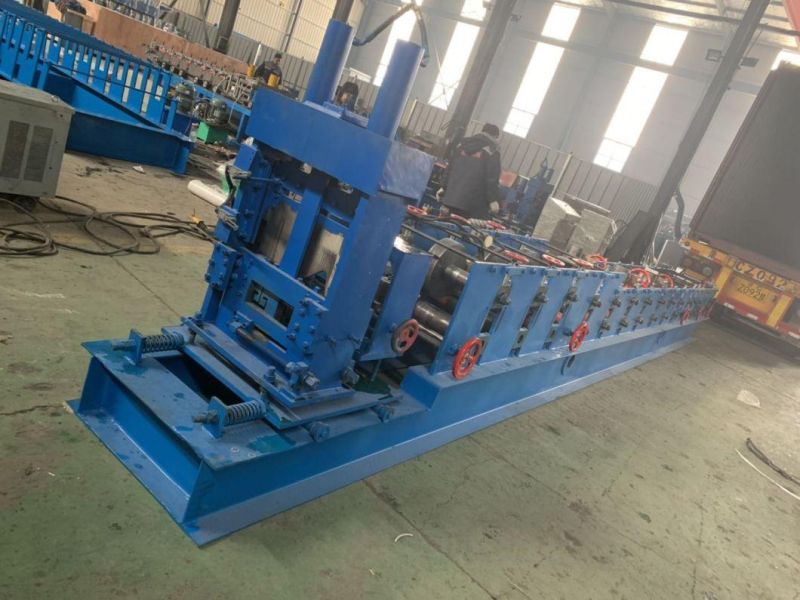

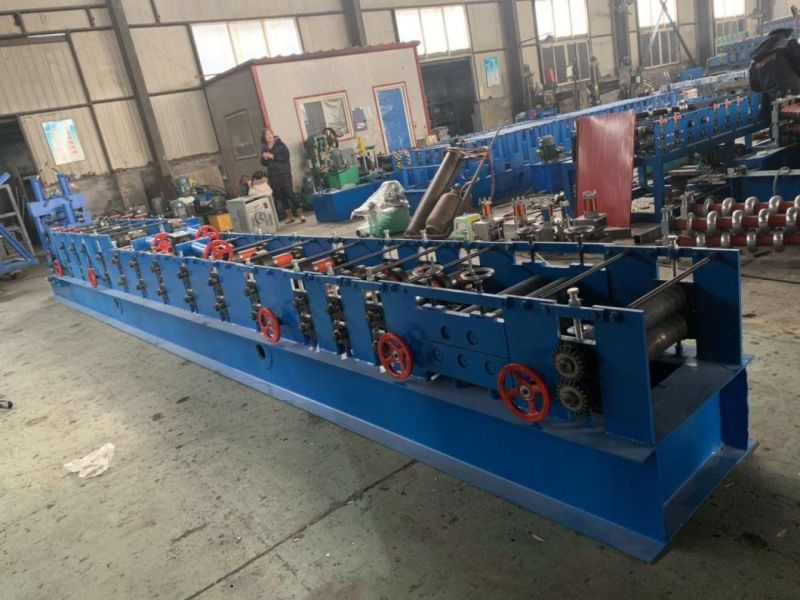

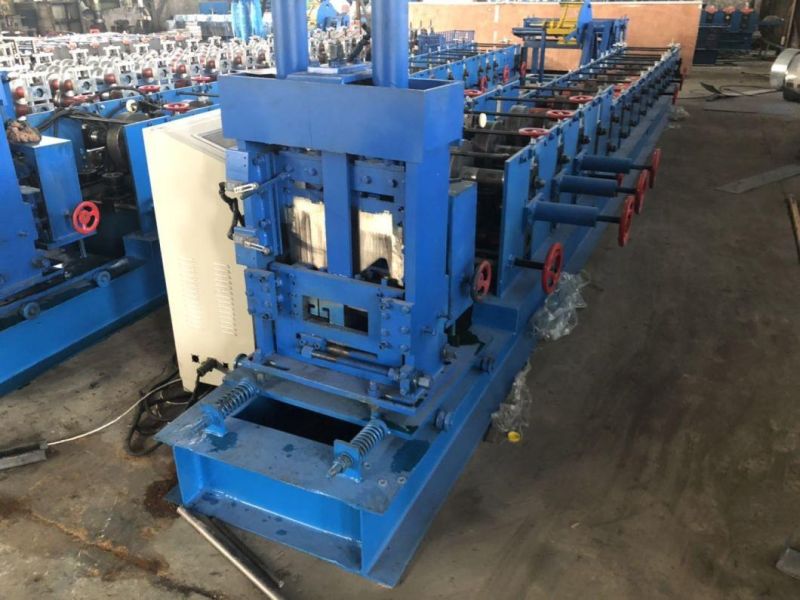

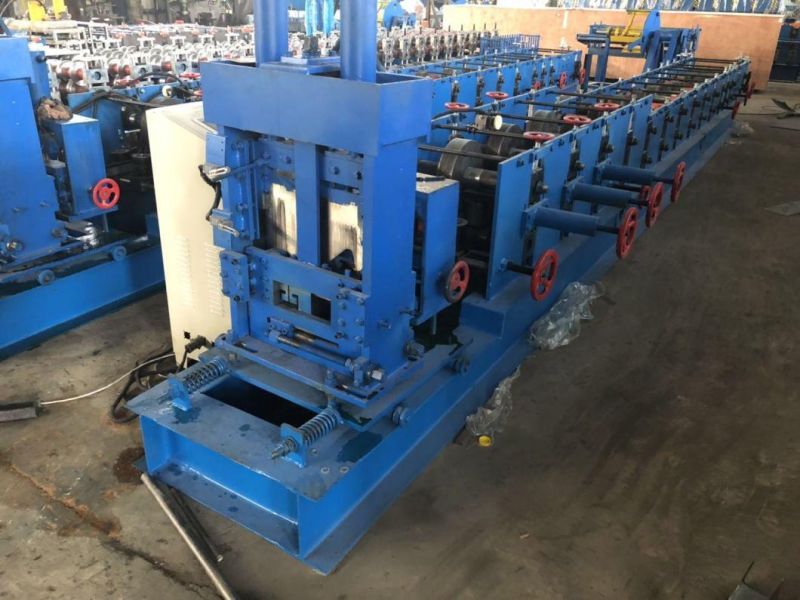

Dixin Steel C Purlin Forming Machine/galvanize sheet rolling machine

1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 1.0-3.0mm
(3) Main motor power: 11 kw
(4) Pump power: 7.5 kw
(5) Shaft diameter: 80mm
(6) Forming steps: 13 steps+5 steps
(7) Roller material: 45# forged steel, with hard chrome plating
(8) Main frame: 350H steel
(9) Medium plate thickness: 18mm
(10) Control systerm: PLC computer control with inverter
(11) Power supply: 380V, 3 Phase, 50Hz
(12) 0veral sized: 6000mm*1000mm*1500mm
(13)Total weight: 3 tons

2. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.

(5) Spare parts

3. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video

4. Warranty
24 months, and lifelong technical support service

5. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.

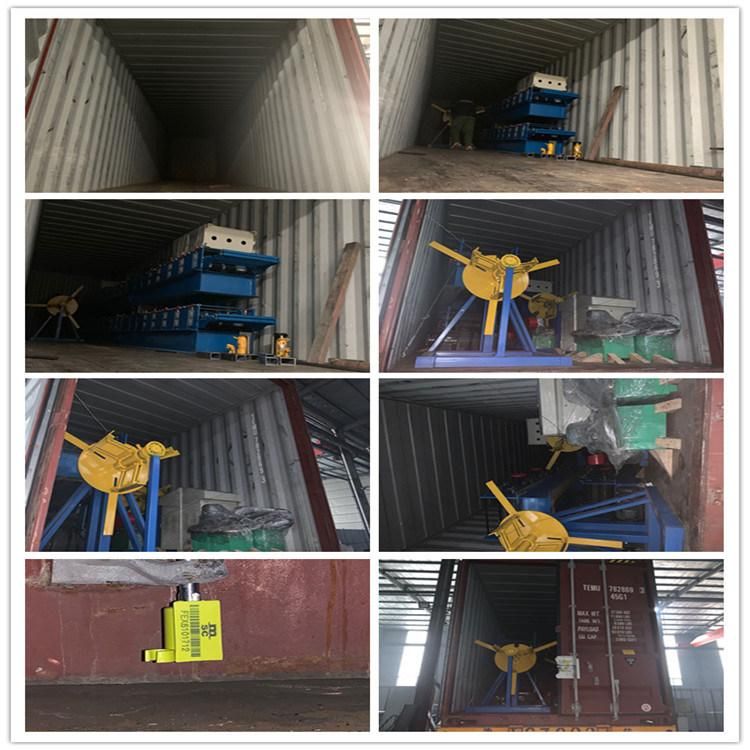

6. Package
Standard export package, water-proof package, covered with plastic film

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1

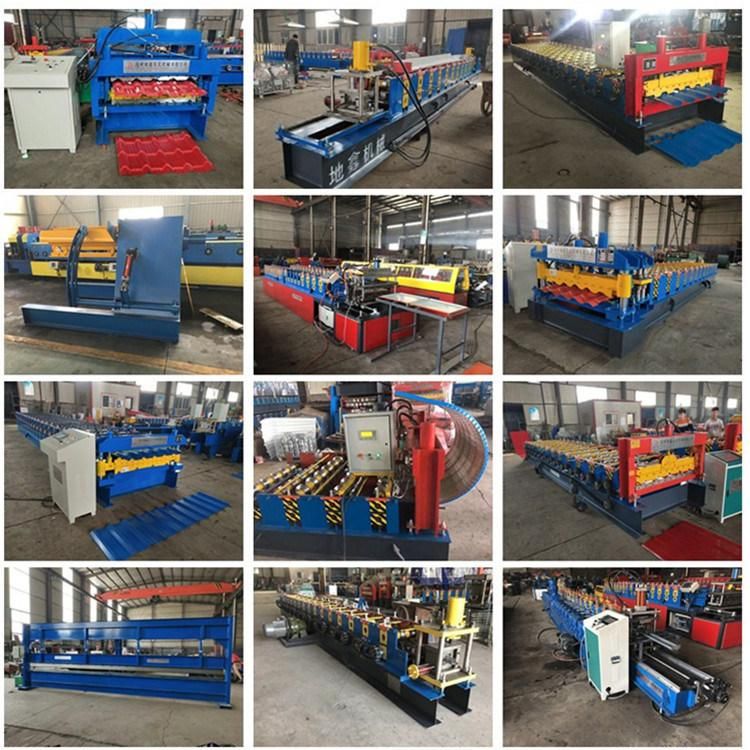

Some others machine maybe you are interested. we also can produce machine according to customers request.
