• Model NO.：QTJ4-25
• Productivity：4800 Pieces 40X20X20cm Blocks ,8 Hours
• Labor Required：3-4 Persons
• Voltage：220-440V
• Mixer Model：Jq500
• Processing Method：Hydraulic Pressure
• Vibration Force：35.5 Kn
• Host Machine Power：29 Kw
• Cycle Time：15-25s
• Vibration Frequency：2800-4500r,Min
• Weight of Host Machine：3t
• Water Consumption：3-4ton,Day
• Raw Materials：Cement,Sand,Fly Ash,Stone Dust
• Sale Service：Engineer Available Abroad
• Transport Package：Standard Export Packing
• Specification：Q235B Jigang steel
• Trademark：weda
• Origin：Linyi
• HS Code：8474802000
• Production Capacity：120 Sets,Month

Basic Info.

Model NO. QTJ4-25 Productivity 4800 Pieces 40X20X20cm Blocks /8 Hours Labor Required 3-4 Persons Voltage 220-440V Mixer Model Jq500 Processing Method Hydraulic Pressure Vibration Force 35.5 Kn Host Machine Power 29 Kw Cycle Time 15-25s Vibration Frequency 2800-4500r/Min Weight of Host Machine 3t Water Consumption 3-4ton/Day Raw Materials Cement/Sand/Fly Ash/Stone Dust Sale Service Engineer Available Abroad Transport Package Standard Export Packing Specification Q235B Jigang steel Trademark weda Origin Linyi HS Code 8474802000 Production Capacity 120 Sets/Month

Product Description

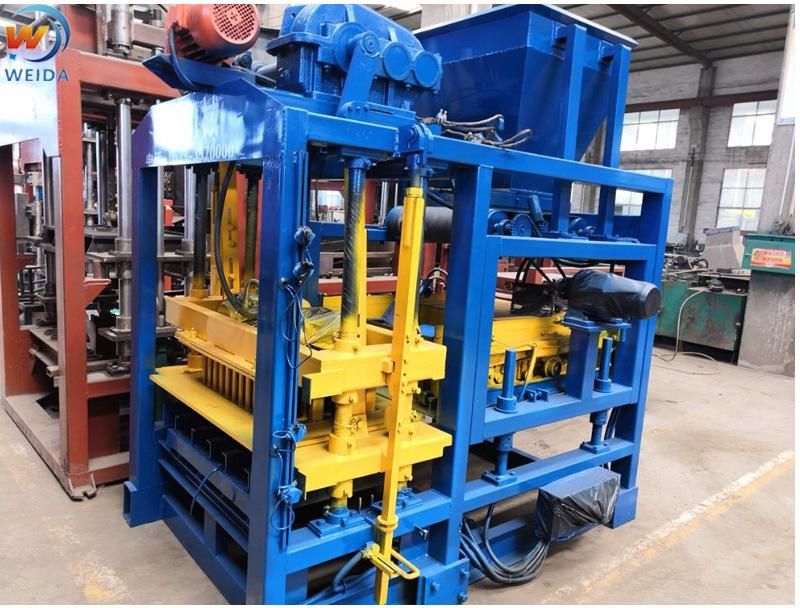

Ghana Automatic Qtj4-25 Solid Concrete Fly Ash Stone Paving Cement Block Making Machine

QTJ4-25 Hot SALE Vibro block machine, which is developed on the basis of the small and medium models.

The position-setting of the mold and the discharge head is more accurate. The down-mold adopts the vertical, directional vibrating device while the up-mold uses the pressure vibrating. So the blocks made by this machine are even, high in density and strength. Also, the automatic material distributing system greatly increases productivity.

Africa continues to embrace new building technologies that promote faster, simpler and cost-effective construction
as development continues its rapid growth.


Advantage:
1. Automatic PLC Operation, Reduce Labor Cost
2. Produce sizes of hollow block, solid brick, hourdis block, interlocking paver, and curbstone by changing molds
3. Small Investment, Big Capacity
4. Suitable For Medium and Small-Scale Block Factory

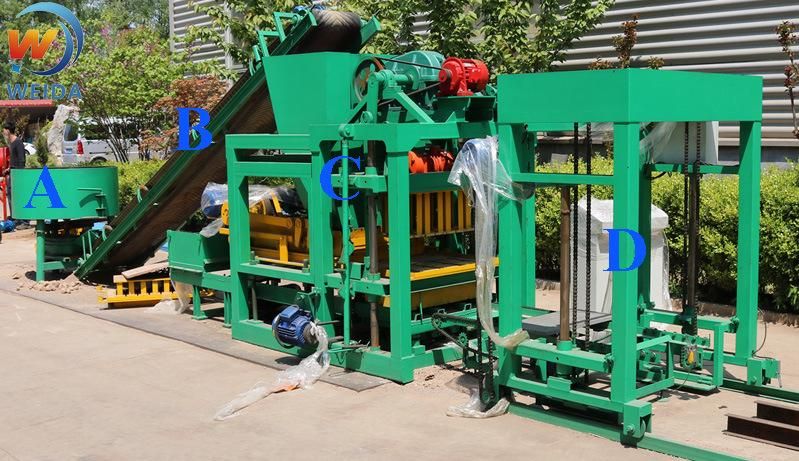

A	JQ500 Mixer (Diameter: 1.5m)
B	belt conveyor
C	Host Machine
D	Stacker, it could layer 4-5 pallets blocks

Features:

Machine description  Qtj4-25 Semi-Automatic Brick Making Machine Cement Block Making Machines Price in Zimbabwe Angola Congo production line

1. QTJ 4-25 is one of kind of automatic block machine, which is developed on the basis of the small and medium model.
The position-setting of the mold and the discharge head is more accurate. The down-mold adopts the vertical, directional
vibrating device while the up-mold uses the pressure vibrating. So the blocks made by this machine are even, high in
density and strength. Also, the automatic material distributing system greatly increases productivity.

2. This machine QTJ4-25 is with an automatic control system, it is easy to operate and can work reliably.

3.QTJ4-25 Automatic Solid Paver Hollow Concrete Block Making Machine production line is with high vibrating frequency and strong vibrating force to ensure that the strength of the finished block
is strong enough to meet the international standard and the industry standard.

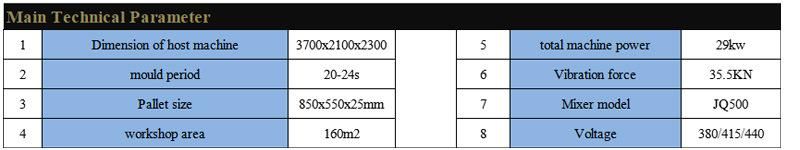

A  Technical parameters

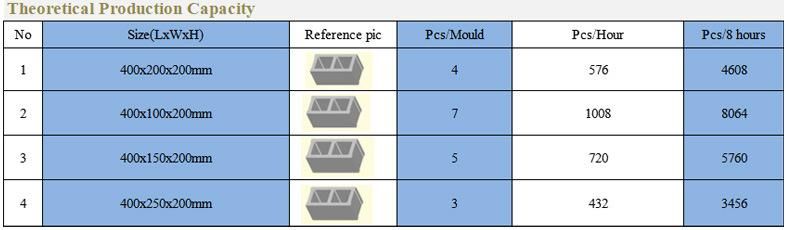

B  qtj4-25 automatic concrete blocks Production Capacity
The production capacity depends on this forming machine QTJ4-25 molding area and it is also an essential part of
the whole production line,

you can change molds on these parts to make different shapes of paving blocks, concrete hollow bricks, and curbstones.

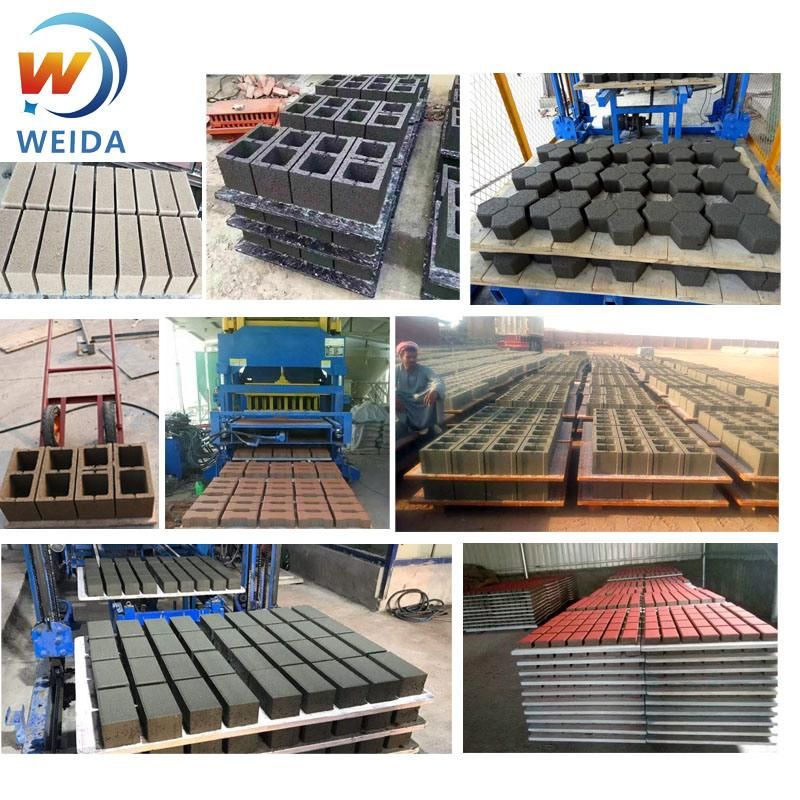

C Block samples
Different shapes of colored paving blocks, hollow concrete bricks, and kerbstones production by one machine only

QTj4-25 automatic cement block machine can produce different sizes of concrete hollow blocks, solid blocks, pavers,
hourdis and curbstones by changing molds.

Customize available by customer drawings, irregular design of blocks molds with high accuracy.

3. A raw material proportion of  Cement Sand Brick Block Making Machine qtj 4-25|simple brick machine|solid block machine price
  1). cement 8-10%, 30%-40%sand, 50%-60% crushed stone
2). cement 8-10%, fly ash 30%, sand (stone powder)60%, 2 gypsum

4. work area of cement brick making machine manual|simple brick machine|solid block machine price qtj4-25
Cement Sand Brick Block Making Machine
  workshop: 50-100 square meter
Total land: 1000 square meter( according to your own situation




D  Programme ELECTRICITY for Cement manual simple solid brick block making machine QTJ4-25 production line requirement:

(1)380V / 50HZ-60HZ / 3 Phase
(2)415V / 50HZ-60HZ / 3Phase
(3)440V / 50HZ-60HZ / 3 Phase
(4)220V / 50-60HZ / 3 Phase
(5)240V / 50-60HZ / 3Phase

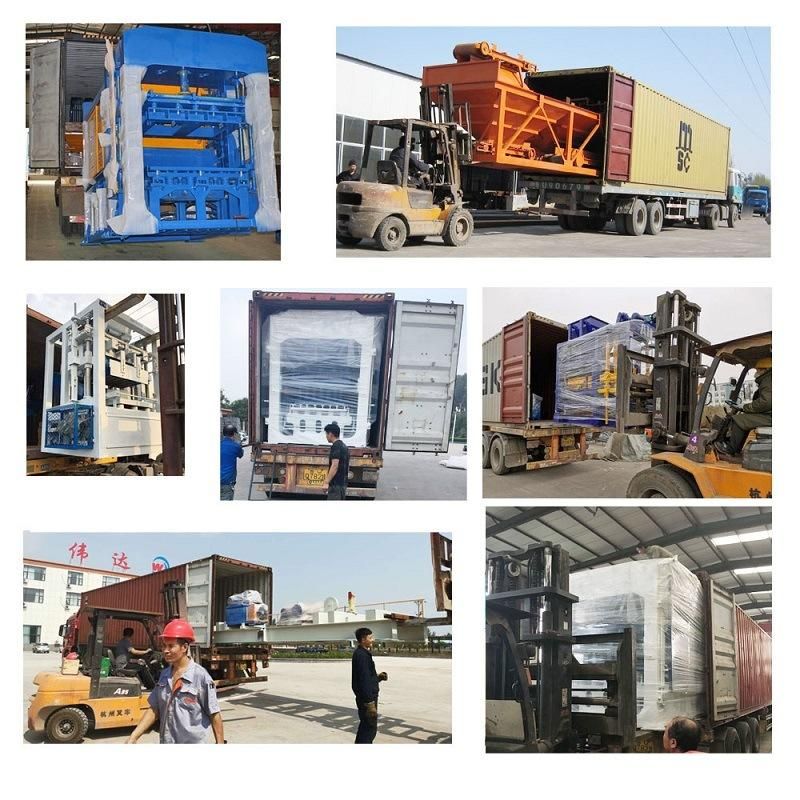

E Machine loading photos


F  Cement Sand Brick Block Making Machine on client site
• Rakes in several rows make sure raw concrete materials fed well-distributed.
• The demolding synchronizer avoids the damage to concrete products.


G : Our concrete block machine certificate


FAQ
1> Is this block machine QTJ4-25 suitable for us to use?

Answer: if you want to make 4000 -5000 pieces of 8 inches hollow blocks, this model QTJ4-25 automatic block machine is
suitable for you, if no, will you kindly  tell us whatkind of bricks do you want to make? or what capacity do you prefer?
Then we can recommend a suitable model according to your requirements.

We can provide 30 variety of concrete block machine, such as QT4-15S, QTF3-20, QT5-15, QT4-15, QT8-15, QT10-15,
QT12-15.. continuous mixer, Concrete Machine, edge runner mill.
According to the customer's specific situation, we design a reasonable plan for you, consider for
customer benefits, help you get the max profit.

We have many partners, we welcome more customers to establish cooperation relationship with us and realize mutual benefit and win-win results.

2>Which industry did QTJ4-25 automatic block machine usually be used in?
Answer: it can produce Interlocking bricks for parking areas, Paving bricks for road, Solid bricks for
house building etc

3>How to use the block machine after you received the machine.
Answer: We will send the operating manual to you after you purchase the machine, for the bigger machine,
we can send engineers fly to your side for installation and training your workers.

4>How about the after-sale service of the block machine?
Answer: 1-year guarantee for the whole machine (without the spare parts), good machine
no need after-sale service, we keep the superior quality machine for you.

5>what's your payment term for the QTJ 4-25 Automatic Solid Paver Hollow Concrete Block Making Machine production line
our common payment is 30% deposit by T/T before arranging the machine production,70% balance
before the delivery, if another payment term, we can negotiate.
