• Model NO.：zh
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Speed：10m,Min
• Motor：7.5kw
• Servo Motor：1.5kw
• Rollers：Cr12
• Cutting：Non Stop
• Blade：Cr12 MOV
• Voltage：380V
• Control System：PLC Delta
• Decoiler：2.5ton
• Delivery Time：30 Days
• Transport Package：Full Assmebled
• Specification：4.5X0.85X1.4
• Trademark：ZH
• Origin：Hebei, China
• HS Code：8455221000
• Production Capacity：20 Sets Per Month

temSpecificationMaterialTypeGalvanized coilsThickness (mm)0.25-0.6Yield strength (mpa)235Roller material45#Chrome steelForming speed(m/min)About 15-20mSpeed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurementEncoder Nemicon (Japan)Control modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power (kw)5.5 kw  (Depend on final design)Hydraulic station power 2.2 kw (Depend on final design)Total power (kw)7.7 kwUncoiler's loading capacity                                                  Max. Capacity: 3000kgs                                                                                                   Machine`s sizeAbout   (Depend on final design)

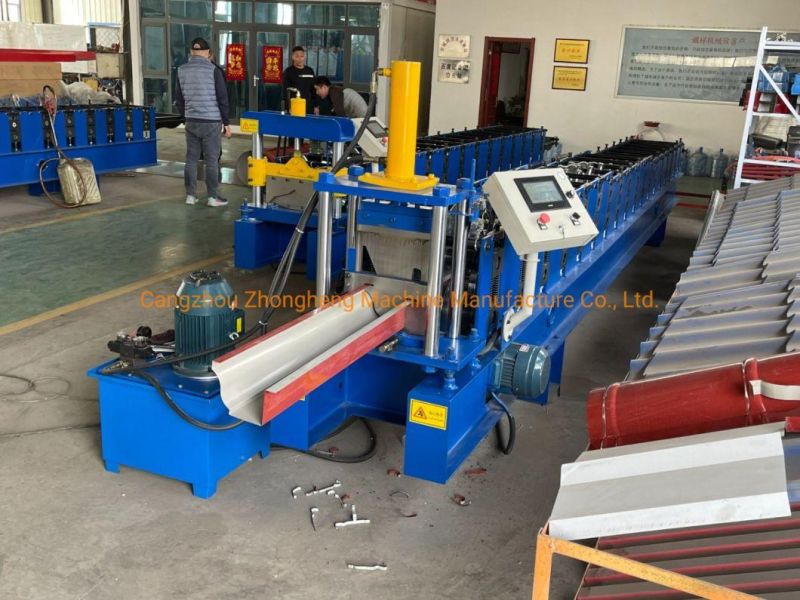

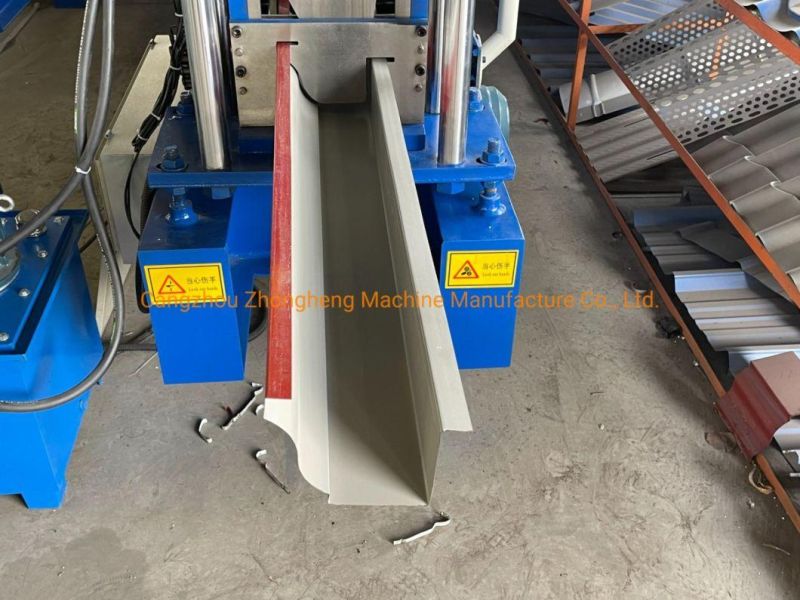

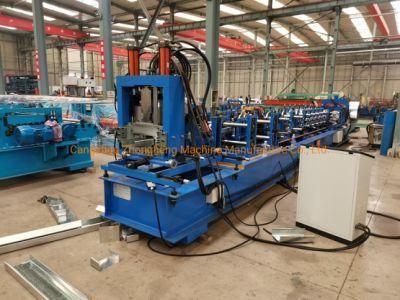

High Forming Speed Metal Gutter Roll Forming Machine with Delta brand PLC

Material

Effective width:About 150 mm
Material Thickness:0.3-0.6mm
Applicable material:Galvanized Steel(GI),Hot Roll Steel(HRC),With yield strength G235-390Mpa


Work Follow

Decoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Cutting → Exit Rack

Machine Components

Manual Decoiler  1 Set

Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 500mm,coil ID range ф460-520mm
Capacity:Max 2 Tons*2



Main Roll forming machine

With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm ;
Rollers manufactured from 45# Steel,CNC lathes,Heat Treatment,hard Chrome Coated
with thickness 0.04mm
Shafts Diameter=ф65mm,precision machined
Gear/Sprocket driving,about 18-step to form
Main Motor=4KW , Frequency speed control
All the screw bolts with grade 8.8
Real forming speed 12-15 m/min(Not include cutting time)




Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 4KW ;
Cutting tool material:Cr12MoV, Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station


Control System

Control The Quantity And Cutting Length Automatically

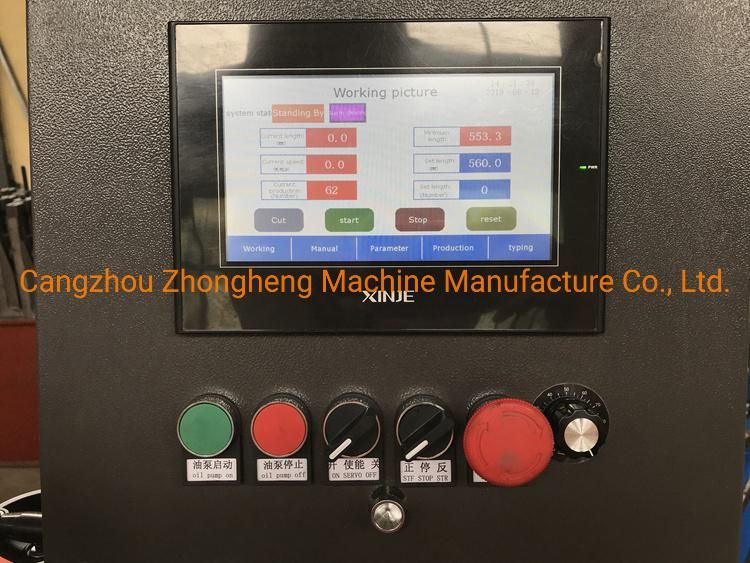

Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc


After-sale service of Automatic Greenhouse Rain Gutter Roll Forming Machine

1. The warranty of roll forming machine is two years .after the client receives the machine. Within the Two years,
we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms of trade

1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 40 workdays
3. Port of loading: port of Tianjin
4. Type of payment: by T/T or by L/C

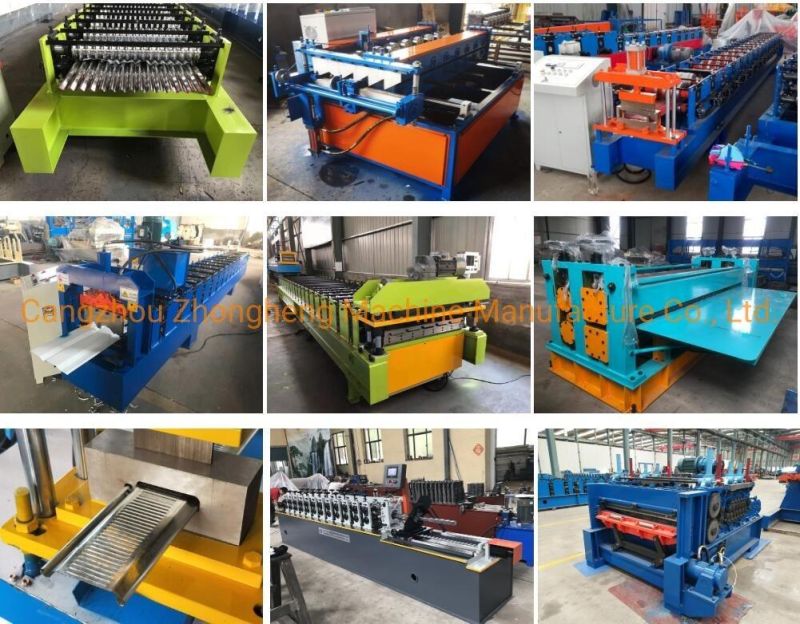

More Roll Forming Machine for reference , welcome to send us Inquiry .
