840/900 Double Layer Trapezoidal Roof Sheets Roll Forming Machine with 1000mm Coil Width
Cangzhou Nexus Machinery Co., Ltd.- Certification：CE, ISO
- Condition：New
Base Info
- Model NO.：NM920
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
- Product Name：840,900 Double Layer Trapezoidal Roof Sheet
- Raw Material：PPGI Sheet
- Thickness Range：0.3-0.6mm
- Machine Power：4kw+3kw
- Forming Speed：10-12m,Min
- Operation Type：Touch Screen
- Operation Language：English and Chinese
- Machine Weight：About 6 Tons
- PLC Brand：Sanjing
- Warranty：1 Year
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：5500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：Cangzhou, China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
- Package size per unit product：550.00cm * 130.00cm * 180.00cm
- Gross weight per unit product：6000.000kg
Description
1
Suitable to process
Color steel
2
Width of the raw material
1100
3
Output width
840mm/900mm
4
Rollers
11 rows and 9 rows
5
Power
4kw+4kw
6
Thickness of the plate
0.3-0.8mm
7
Productivity
12-15m/min or
25-35m/min by hydraulic motor
8
Diameter of the roller
70mm
9
Weight
About 6 T
10
Voltage
380V 50Hz 3phase
11
Received table
4 meters
12
Raw material of the cutter
Cr12
13
Raw material of the roller
Bearing steel

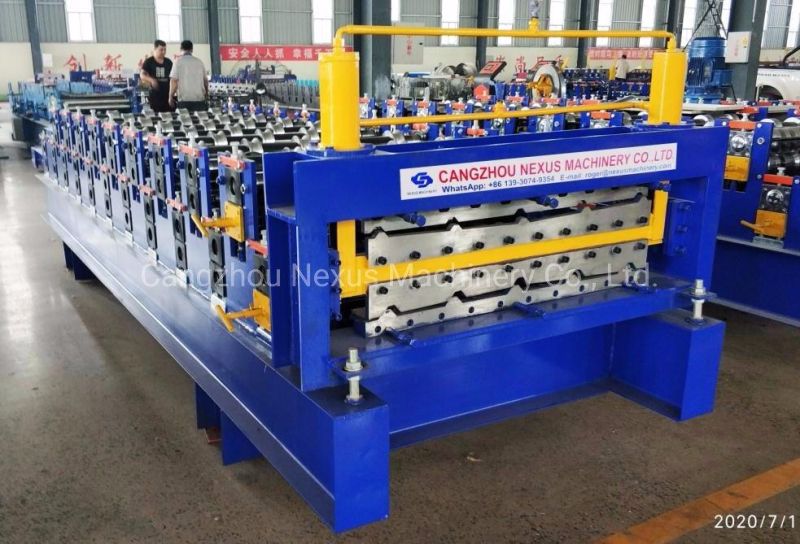

5. Photos of 840/900 Double Layer Trapezoidal Roof Sheets Roll Forming Machine with 1000mm Coil Width for refernce:

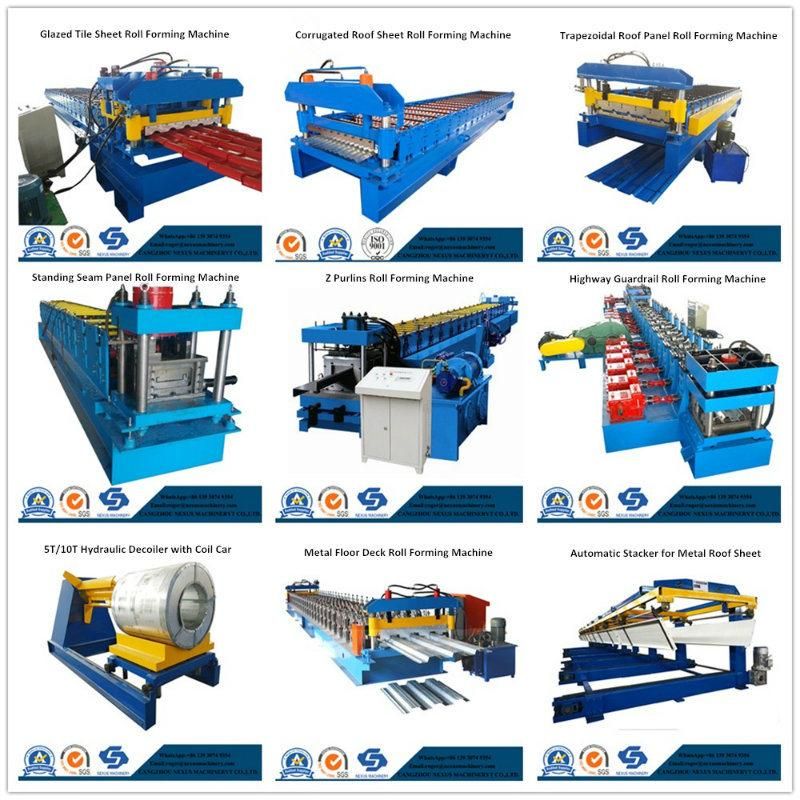

6.More Products for Choose:
Exhibitions Photos:
FAQ:
- Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. - What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. - Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport. - Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer in China.
