• Model NO.：LJZ2XII-500x4200
• Cutting Angle：45 Degree & 90 Degree
• Length Measuring Way：Digital Display
• Advantage：High Productivity
• Product Name：Aluminium Double Mitre Cutting Saw
• Cutting Material Type：Aluminium Profile
• Supporting Rack Type：Automatic
• Transport Package：Wooden Cases or Pallet
• Trademark：TIANCHEN
• Origin：China
• HS Code：84614090
• Production Capacity：2000sets,Year

Basic Info.

Model NO. LJZ2XII-500x4200 Cutting Angle 45 Degree & 90 Degree Length Measuring Way Digital Display Advantage High Productivity Product Name Aluminium Double Mitre Cutting Saw Cutting Material Type Aluminium Profile Supporting Rack Type Automatic Transport Package Wooden Cases or Pallet Trademark TIANCHEN Origin China HS Code 84614090 Production Capacity 2000sets/Year

Product Description

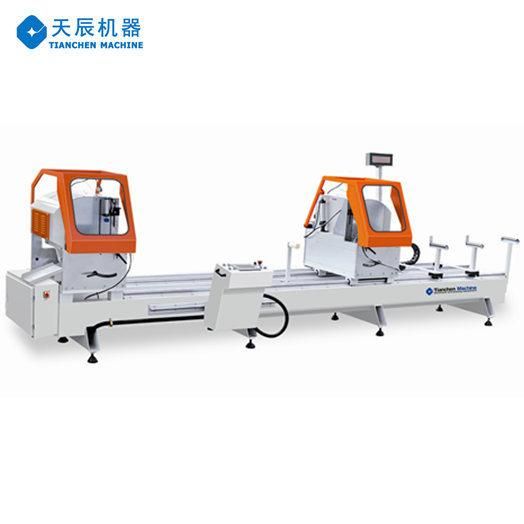

Digital Display Double-head Precision Cutting Saw
Model: LJZ2XII-500X4200
Product Description


Features & Advantages

• Applicable for cutting profile of aluminum windows and doors and curtain walls

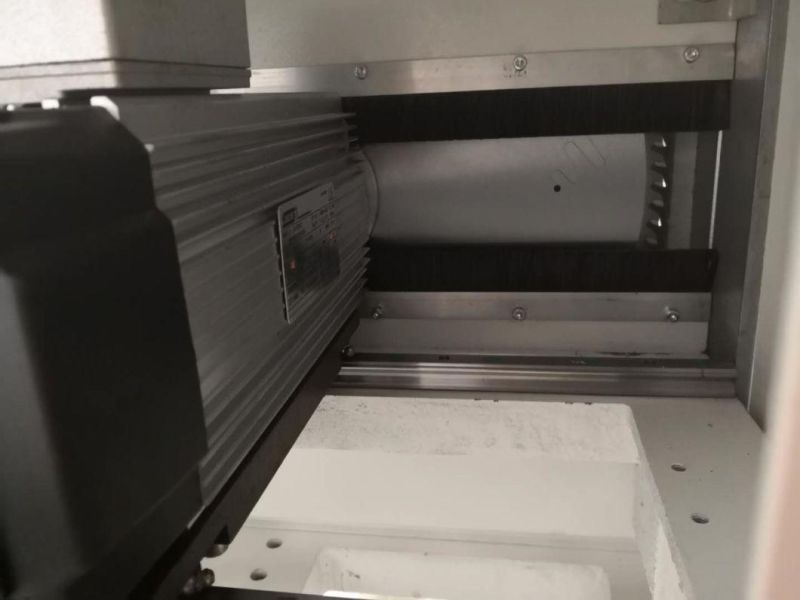

• Imported cutting motor connects with saw blade; the saw blade feed adopts gas-liquid damping cylinder drive, with smooth cutting
•

• Easy to operate and maintain, with reliable performance and advanced technology
• Using magnetic system for length scaling and digital display, with high precision
•

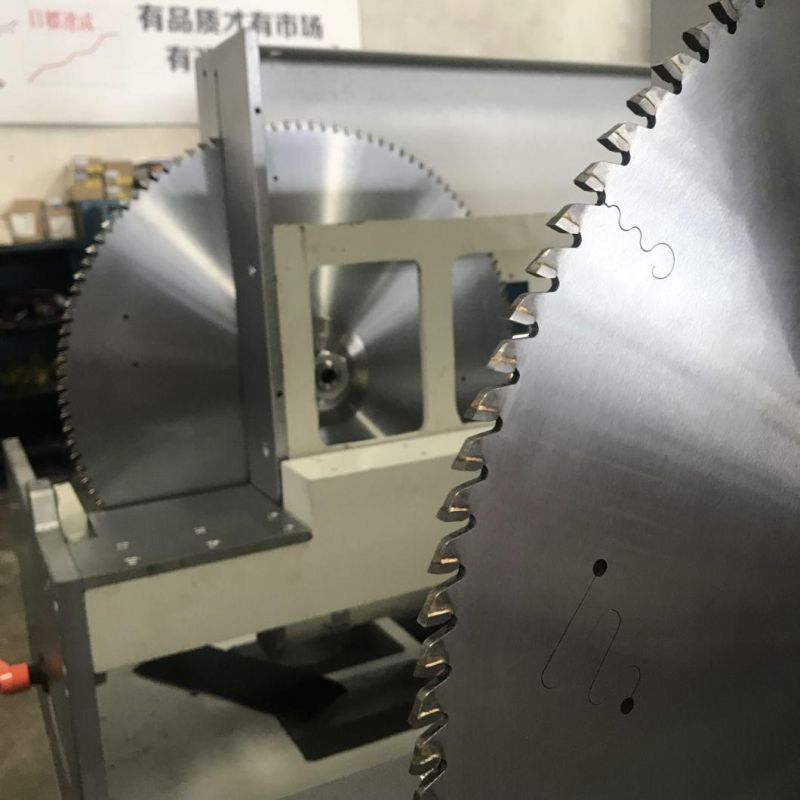

• Imported carbide saw blade gives accurate processing and high efficiency
•

Technical Parameters

Saw Head Motor Power	2X3.0KW
Cutting Length	Max 4200mm, min 400mm
Cutting Width	Max 150mm
Cutting Height	Max  210mm  45° max 150mm 90°
Cutting Angle	90°, 45°
Cutting Speed: Stepless speed regulation	0-3m/min
Blade Specification	φ500mm x 4.4mm xφ30mm z=120
Repeat Locating length tolerance	±0.2mm
Cutting Angle tolerance	±5'
Contour dimension	6500x1700x1900mm
Weight	2100KG
