Small Type Semi-Auto Cement Concrete Hollow Block Machine

Linyi ShengMing Machinery Co., Ltd.
  • After-sales Service：Supply Instruction, Installation Video
  • Warranty：2 Years
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Semiautomatic
  • Type：Vibration Molding

Base Info

  • Model NO.：QTJ4-35
  • Model：Qtj4-35
  • Shaping：Vibration
  • Capacity：1500-2000PCS,Day
  • Power：9.3kw
  • Pressure：16MPa
  • Pallet Size：850X450mm
  • Weight：1100kgs
  • Dimension：1550X1650X1800mm
  • Pallet Quantity：500-600pieces
  • Water Consumption：2-4t,Day
  • Workshop Area：40m2
  • Power Voltage：3800V,220V,AC
  • Labor Quantity：2-4 People
  • Forming Period：35-40s
  • Mixer：Jq350
  • Transport Package：Naked in Container or LCL
  • Specification：1550× 1650× 1800mm
  • Trademark：shengming
  • Origin：Linyi
  • HS Code：8474802000
  • Production Capacity：1500-2000pieces,Day

Description

Total rated power15.9KWWorkshop area40M2Daily capacity1500-2500 piecesPower voltage380V/220V/ACPallet quantity500-600 piecesLabor quanity2-4 peopleWater consumption2-4T/dayForming period35-40S
Small Type Semi-Auto Cement Concrete Hollow Block Machine

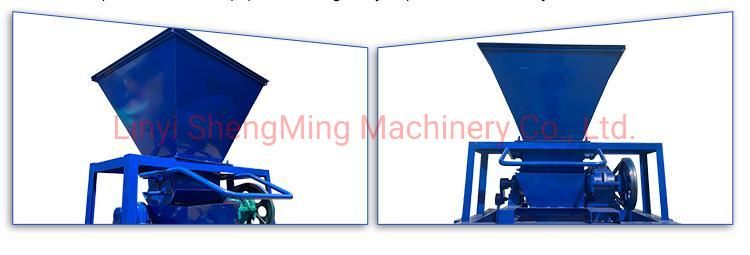

1. The storage hopper is designed to replace manual feeding and greatly reduce the working intensity.

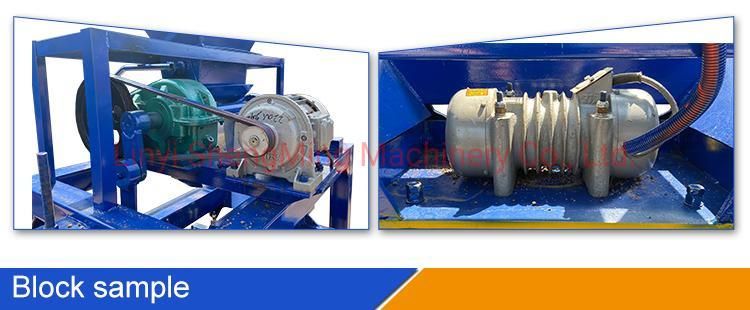

Small Type Semi-Auto Cement Concrete Hollow Block Machine2. The motor pushes and pulls the mold, which is convenient and convenient.
Small Type Semi-Auto Cement Concrete Hollow Block MachineSmall Type Semi-Auto Cement Concrete Hollow Block MachineProduction Capacity
 Size(LxWxH)mmPiece/moldPiece/HourPiece/8 hours400x200x200mm42001600400x150x200mm52502000400x100x200mm73002400200x100x60mm147005600225x112.5x60126004800

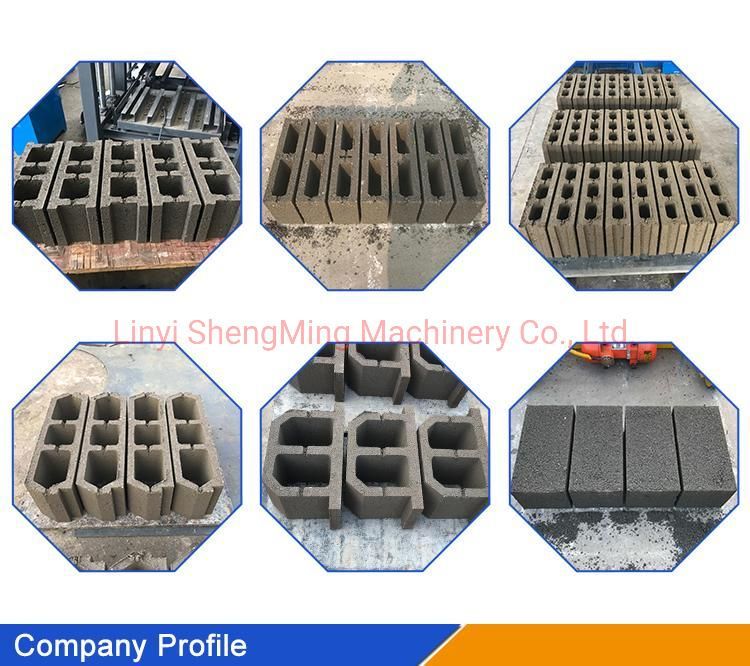

Finshed Block Showing

Small Type Semi-Auto Cement Concrete Hollow Block Machine

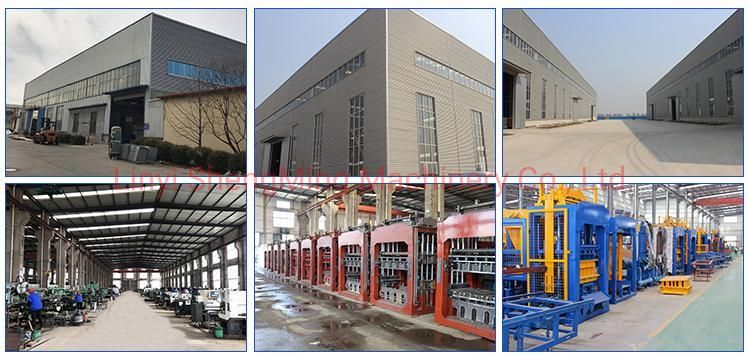

Established in the year 1990,we are a prominent organization engaged in manufacturing and supplying
Block machine,batching plant and concrete pole machine, extensively used in field of infrastructure and
real estate development.
Small Type Semi-Auto Cement Concrete Hollow Block MachineSmall Type Semi-Auto Cement Concrete Hollow Block MachineSmall Type Semi-Auto Cement Concrete Hollow Block MachineSmall Type Semi-Auto Cement Concrete Hollow Block Machine

FAQ:
Q: What is the material for this machine ?
A: You can use lateriate or other clay material or concrete material, plus a little cement

Q: How many kinds of block can be made by this machine ?

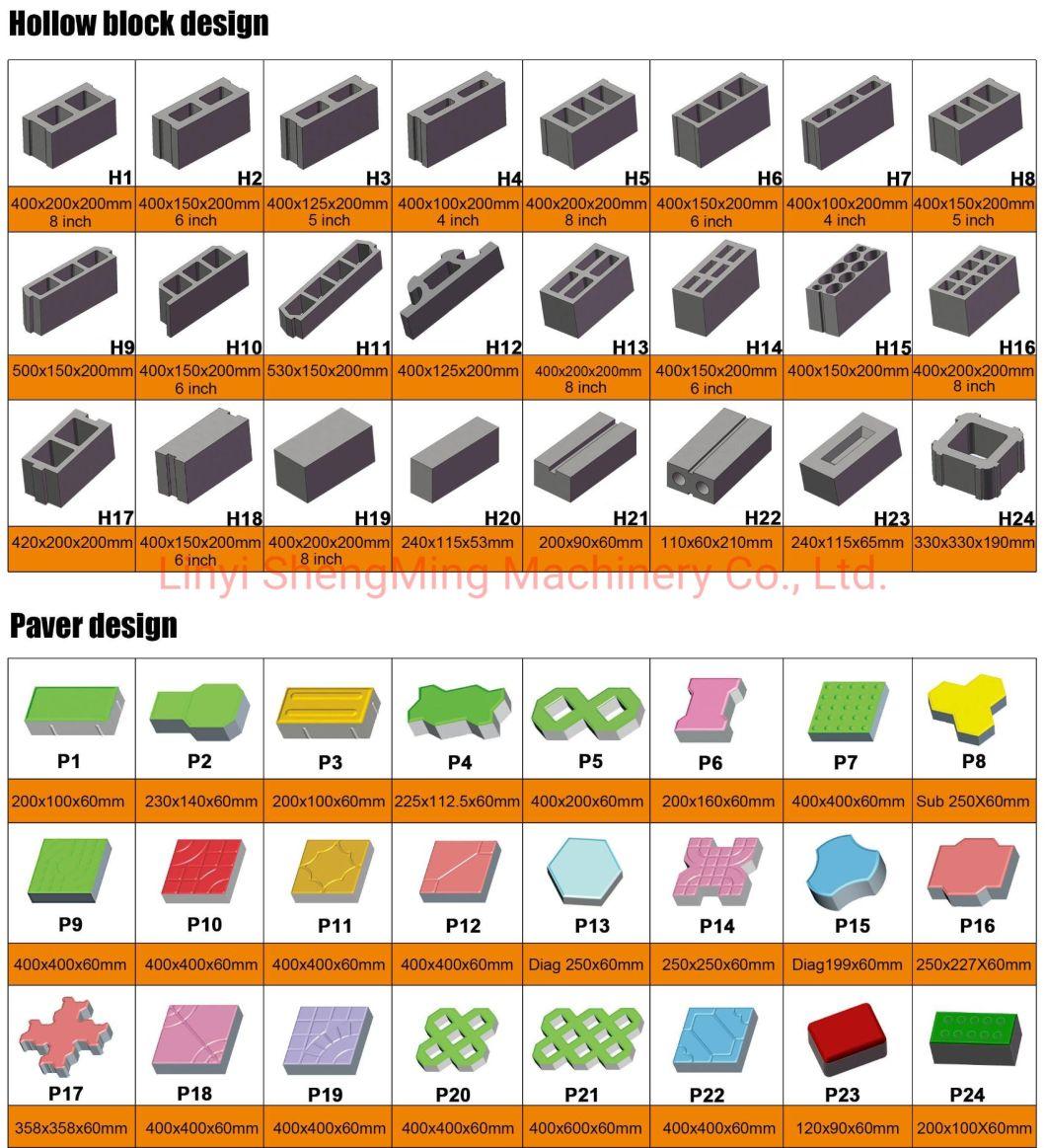

A: By changing mold, this machine can make all type design brick ,block or even paver.

Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally

Q: Will you provide spare parts for this machine ?
A: We will provide you one year free spare parts.can support machine working for many years

Q:Will you provide installation support?
A: We will provide installation video and manual book.online video avaiable also.

Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.
