• Model NO.：DX-120
• Automation：Automatic
• Tolerance：0.1mm
• Color：Blue
• Chain：1 Inch
• Forming Steps：23
• Roller：High Grade 45# Steel
• Shaft：75mm
• Material：Galvanized,Aluminum,Color Steel Sheet
• Transport Package：Nude, Covered with Plastic Film
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：845522
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. DX-120 Automation Automatic Tolerance 0.1mm Color Blue Chain 1 Inch Forming Steps 23 Roller High Grade 45# Steel Shaft 75mm Material Galvanized/Aluminum/Color Steel Sheet Transport Package Nude, Covered with Plastic Film Specification CE, SGS Trademark DIXIN Origin Botou, Hebei, China HS Code 845522 Production Capacity 30 Sets/Month

Product Description

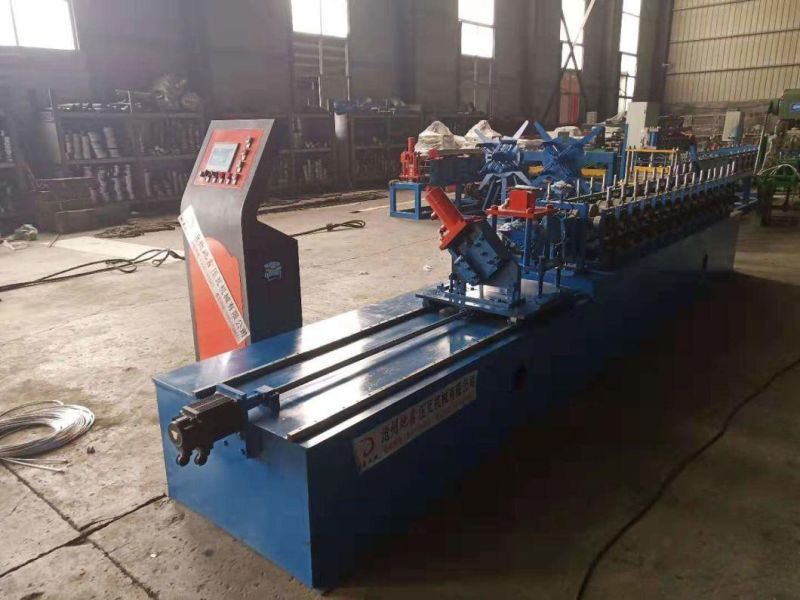

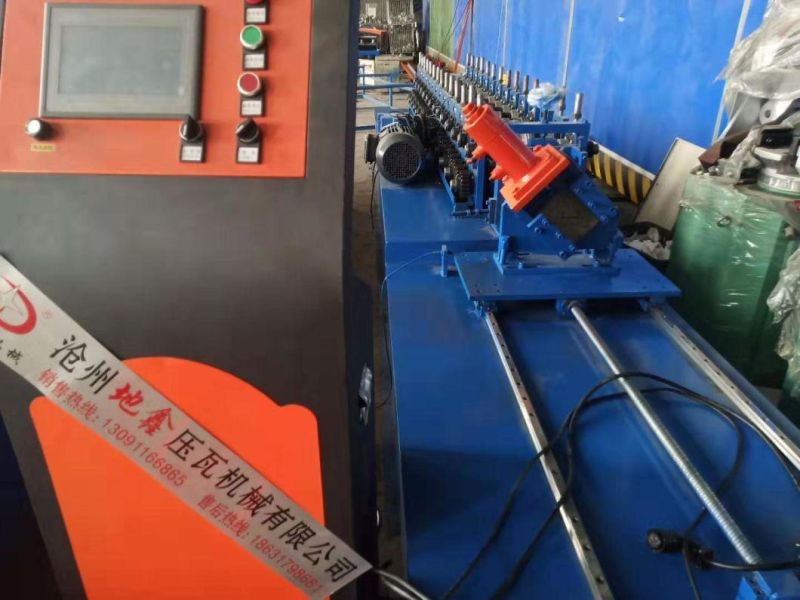

China suppliers U purlins light steel keel roll forming machine

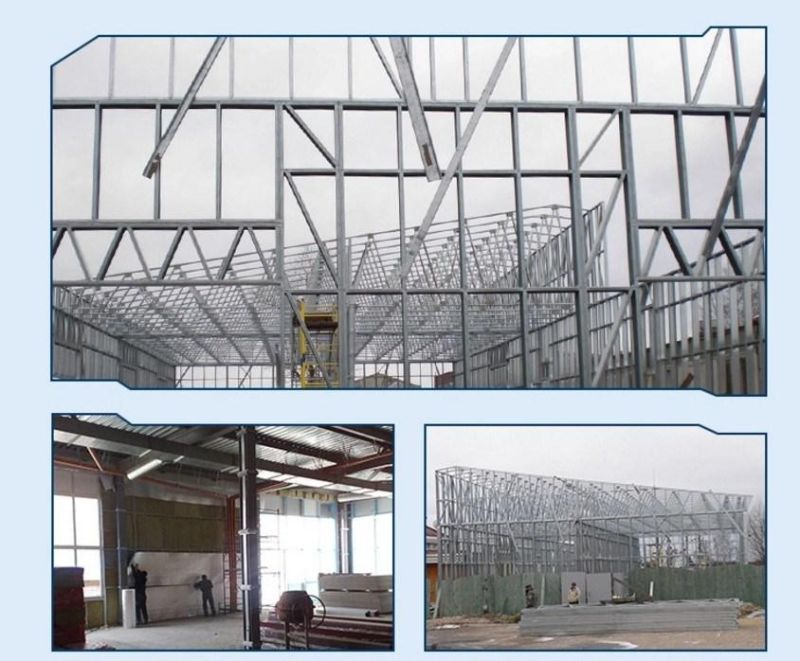

The Light steel keel roof produced by our Light steel keel roll forming machine with good bending compression performance, flatness is good, automatic fixed length cutting, automatic punching, high degree of automation, fast and convenient installation.



Technical parameters

Configurations	Manual Uncoiler ,Guiding Platform ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System	PLC Colored Touch Screen
Main Power	3 kw
Pump Power	3 kw
Power Supply	380V, 3-Phase,50Hz or any
Forming Speed	10m/min
Roll Station	10 stands
Shaft Diameter	40mm
Hydraulic Pressure	10-12MPa

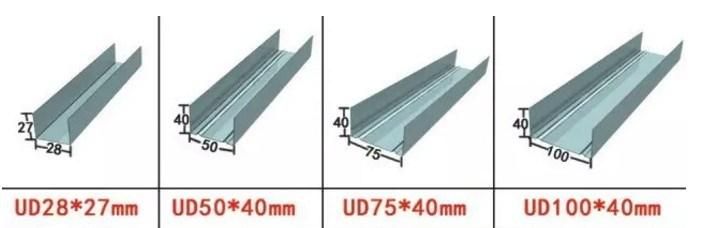

Forming Size	60*27*28mm
Feeding Thickness	0.3-0.8mm
Feeding Width	1200-1250mm
Cutter Standard	Cr12
Roller Standard	45#steel with chrome coating heat treatment
Cr-Plating Size	0.05mm
Overall Size	3500*1200*1450mm
Total Weight	2.5T

Packaging
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
----------------------------------------------------------------------------------------------------------------------
1.Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before
2.Warranty
12 months, and lifelong technical support service
3.Installation
If you need, we will send one technician to your factory to install & testing the
  and local accommodation, and pay 90 USD/day for salary.
ServiceWe can produce the specialmachine,send your drawing to us,we can desgin for you.If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.We provude a one year warranty and lifelong technical support,wa can send our technical to you to give you on-site training.The training period would be for no more than one week with the customer paying for the visa,return ticket,food ,accommodations and a daily wage of US100Engineer available to service machinery overseas.If you come to visit our factory ,we can book the room for you,car pick up to send.

FQA
 1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
machine in my factory?
2.How to visit our company:
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou West station  (1 hour),then we can pick up you.
B.Fly to Tianjin Airport: By high speed train From Tianjin West station to Cangzhou West station ,then we can pick up you.
