Building Material Making Machinery

Water Downspout Aluminium Rain Gutter Roll Forming Making Machine with Good Price

Cangzhou Zhongheng Machine Manufacture Co., Ltd.
  • Tile Type:Colored Steel
  • Certification:CE
  • Condition:New
  • Customized:Customized
  • Usage:Roof, Wall
  • Transmission Method:Hydraulic Pressure

Base Info

  • Model NO.:ZH40
  • Speed:10m,Min
  • Motor:7.5kw
  • Servo Motor:1.5kw
  • Rollers:Cr12
  • Cutting:Non Stop
  • Blade:Cr12 MOV
  • Voltage:380V
  • Control System:PLC Delta
  • Decoiler:2.5ton
  • Delivery Time:30 Days
  • Transport Package:Full Assmebled
  • Specification:4.5X0.85X1.4
  • Trademark:ZH
  • Origin:Hebei, China
  • HS Code:8455221000
  • Production Capacity:20 Sets Per Month

Description

Basic Info.

Model NO. ZH40 Speed 10m/Min Motor 7.5kw Servo Motor 1.5kw Rollers Cr12 Cutting Non Stop Blade Cr12 MOV Voltage 380V Control System PLC Delta Decoiler 2.5ton Delivery Time 30 Days Transport Package Full Assmebled Specification 4.5X0.85X1.4 Trademark ZH Origin Hebei, China HS Code 8455221000 Production Capacity 20 Sets Per Month

Product Description

Water Downspout Aluminium Rain Gutter Roll Forming Making Machine with Good Price

Aluminium Rain gutter roll forming making machine

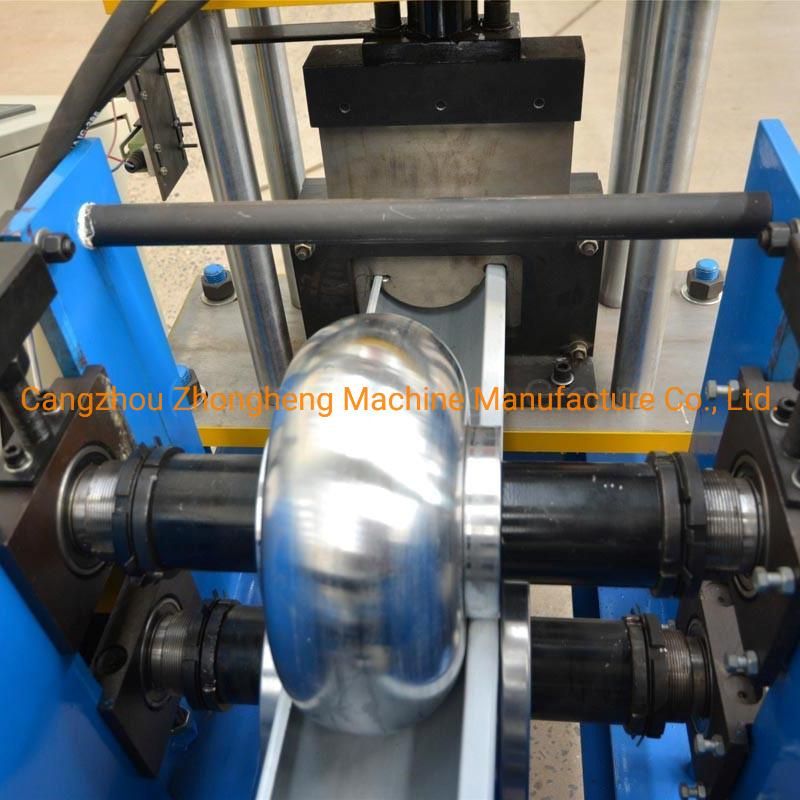

Aluminium Rain gutter roll forming making machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.
 Water Downspout Aluminium Rain Gutter Roll Forming Making Machine with Good Price
Water Downspout Aluminium Rain Gutter Roll Forming Making Machine with Good Price

Automatic Greenhouse Rain Gutter Roll Forming Machine

Material


Effective width:About 250 mm
Material Thickness:0.3-0.6mm
Applicable material:Galvanized Steel(GI),Hot Roll Steel(HRC),With yield strength G235-390Mpa



Work Follow

Decoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Cutting → Exit Rack

Machine Components

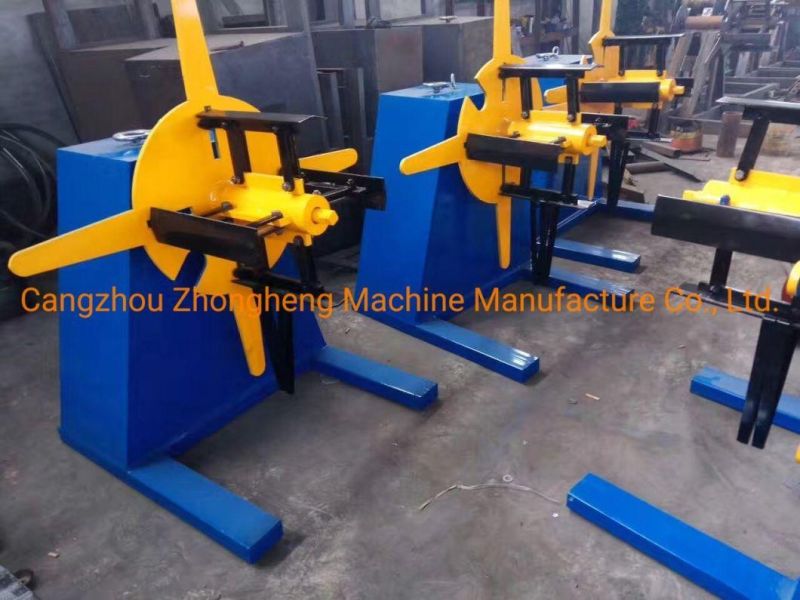

Manual Decoiler  1 Set

Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 500mm,coil ID range ф460-520mm
Capacity:Max 2 Tons*2
Water Downspout Aluminium Rain Gutter Roll Forming Making Machine with Good Price

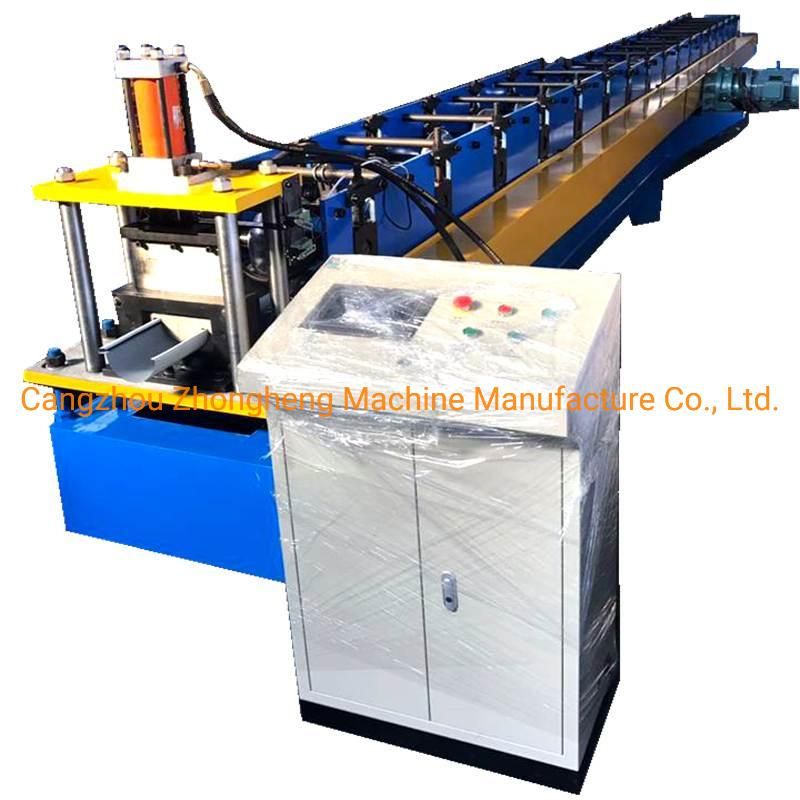

Main Roll forming machine

With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm ;
Rollers manufactured from 45# Steel,CNC lathes,Heat Treatment,hard Chrome Coated
with thickness 0.04mm
Shafts Diameter=ф75mm,precision machined
Gear/Sprocket driving,about 24-step to form
Main Motor=11KW , Frequency speed control
All the screw bolts with grade 8.8
Real forming speed 12-15 m/min(Not include cutting time)

 Water Downspout Aluminium Rain Gutter Roll Forming Making Machine with Good Price

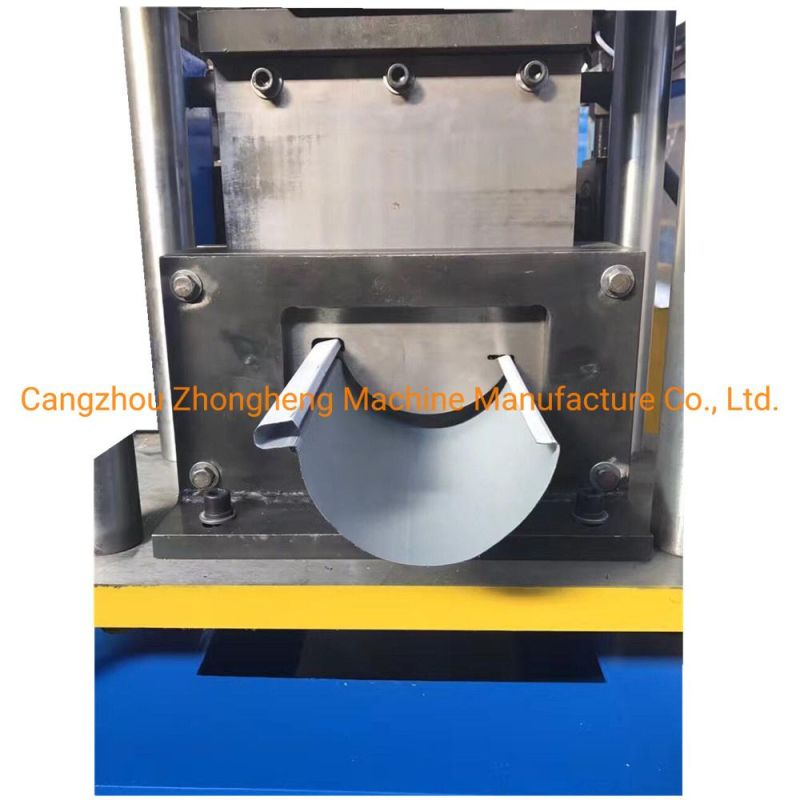

Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 4KW ;
Cutting tool material:Cr12MoV, Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station
Water Downspout Aluminium Rain Gutter Roll Forming Making Machine with Good Price

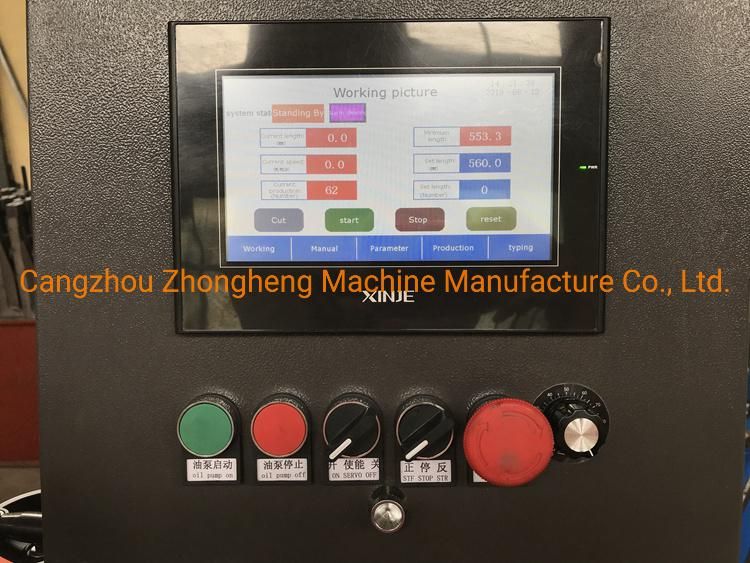

Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc

Water Downspout Aluminium Rain Gutter Roll Forming Making Machine with Good Price

After-sale service of Aluminium Rain gutter roll forming making machine

1. The warranty of roll forming machine is two years .after the client receives the machine. Within the Two years,
we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms of trade

1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 40 workdays
3. Port of loading: port of Tianjin
4. Type of payment: by T/T or by L/C


More Roll Forming Machine for reference , welcome to send us Inquiry .
