Athm High Pressure Grinding Roller Mill for Fine Sand Making Plant
ATAIRAC ENGINEERED PRODUCTS INC(CHINA)- Certification：CE, ISO
- Theory：High-Speed Grinder
- Crushing Level：Crushing
- Application：Railroad, Construction, Metallurgy
- Structure：Horizontal
- Motor Power：2*250kw
Base Info
- Model NO.：ATHM1000,625
- Feed Particle Size：-32mm
- Dealing Capacity：120-250t,H
- Installation：Engineer Guide
- Transport Package：Wooden Box Packing and Nude Packing
- Specification：2344x2318x1605mm
- Trademark：ATAIRAC
- Origin：China
- HS Code：847420900
- Production Capacity：30 Sets,Month
Description
Model
Grinding Roller
Motor
Reduction Gears
Maximum Pressure
Roller
Rotation Speed
Feed Particle Size
Dealing Capacity
Diameter
Width
Power
Pole
Type
Speed Ratio
Rock
Mineral
ATHM800/
500
800mm
500 mm
2*110kw
4p
Planetary Gear
49.505
4MPa
18MPa
30.1rpm
-32mm
70-120 t/h
ATHM1000/625
1000mm
625 mm
2*250kw
4p
Planetary Gear
57.742
4MPa
18MPa
25.8rpm
-32mm
120-250t/h
Package and Delivery
The roll crusher should be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting.
Application Cases
N/A DATA
Package and Delivery
Package:The products should be processed to be rustproof and moisture proof before delivery. The big parts are wrapped by plastic sheeting. The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting.
Delivery: Our company will deliver the 100% qualified goods in accordance with the related contract terms.
Quality Warranty
100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts)for a period of one year from the date of trial run finish under our technician's guidence, but not exceed 15 months from date on which machine leaves the factory.
Working Principle
There is a wedge-shaped device or gasket adjustment device between the two rolls and on the top of the wedge-shaped device placed an adjusting bolt. When the adjusting bolt pulls up the wedge, the wedge will move the movable roll from the fixed roll, so the gap between the two rolls become large, and the discharging granularity will get big. When the wedge goes down, under the effect of pressure spring, the gap between them become small and the discharging granularity will get small. The gasket device adjusts the granularity of discharging material by increasing or decreasing the number or thickness of the gasket. When the gasket number increases, the gap between the two rolls become large and the discharging granularity will get big. When the gasket number decreases, the gap between the two rolls become small and the discharging granularity will get small.
Company Overview
ATAIRAC History&Scale
Established Time:In 1958
Production Base:Around 300,000 square meters
Employees No.Around 1000

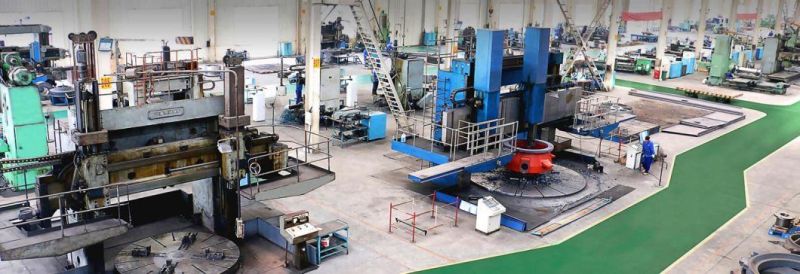

Machinery&Quality Control
(1) Over 500 sets machining equipment and inspection equipment
(2)Complete crushing machinery manufacturing industry chain
(3) Certificates:ISO, CE,BV,TUV,GOST
R&D Ability
(1)4 research and development base
(2)Around 60 design engineers
(3)Cooperating with international advanced crushing machinery companies
(4)Industrial standard maker of <Vertical Shaft Impact Crusher>
(5)Industrial standard maker of <Complex Vertical Impact Crusher>
(6)Industrial standard maker of <Autogenous Grinder>
(7)Industrial standard drafter of <Four Roller Crusher >
(8)62 Technical Patent in crushing and grinding machinery
ATAIRAC Crushing Solution
3000TPH downward stationary crushing&screen production line
800TPH downward mobile crushing&screen plant
300-2000 thousand tons per year steel slag recycling production line
Construction waste recycling production line
