• Model NO.：Csq-9
• Quantity of Motors：9PCS
• Feeding Speeds：0.5-7m,Min
• Minimum Grinding Size：60mmx60mm
• Thickness of The Processed Glass：3-25mm
• Power：19.5kw
• Chamfer Width of Glass：3-5mm
• Glass Parallel Error：±0.2mm,M
• Error in Chamfer Width of Glass：±0.2mm,M
• Diagonal Error of Glass：±0.3mm
• Width Error：±0.2mm
• Maximum Bottom Grinding：3mm
• Table Height：750mm
• External Dimension：6800mmx1000mmx2500mm
• Packing Size：3500mmx1200mmx1500mm
• Transport Package：Wooden Box
• Specification：3500mmx1200mmx1500mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：40 Glass Per Day

Basic Info.

Model NO. Csq-9 Quantity of Motors 9PCS Feeding Speeds 0.5-7m/Min Minimum Grinding Size 60mmx60mm Thickness of The Processed Glass 3-25mm Power 19.5kw Chamfer Width of Glass 3-5mm Glass Parallel Error ±0.2mm/M Error in Chamfer Width of Glass ±0.2mm/M Diagonal Error of Glass ±0.3mm Width Error ±0.2mm Maximum Bottom Grinding 3mm Table Height 750mm External Dimension 6800mmx1000mmx2500mm Packing Size 3500mmx1200mmx1500mm Transport Package Wooden Box Specification 3500mmx1200mmx1500mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Glass Per Day

Product Description

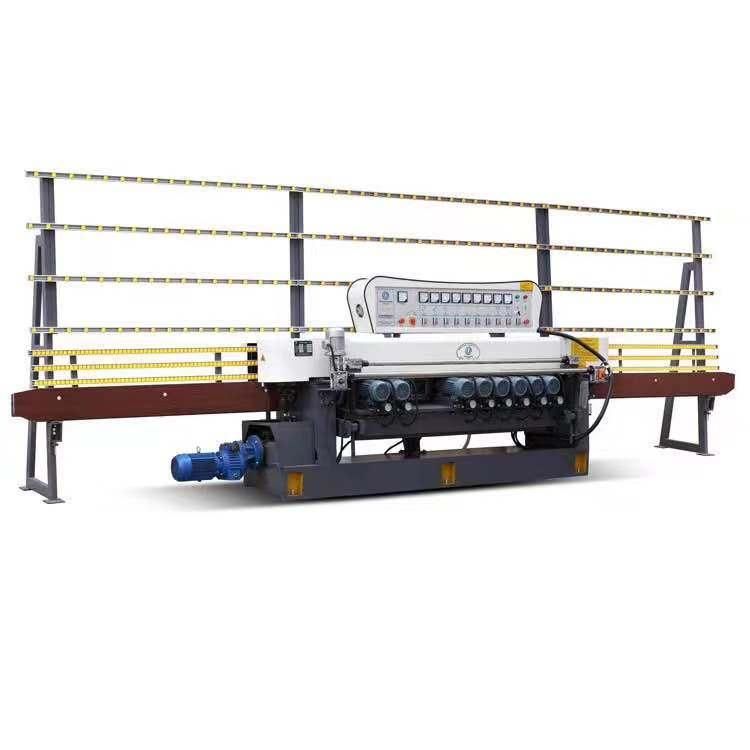

 Digital Display 9 Motors Glass Straight Line Edging Edger Machine


1.This machine adopts advanced technology, the bottom of main machine and front and back stand made by heacy metal parts, which was heated with fire, it can bear heavey weight, the performance is very steady.
2.9 terms of grinding head motor added main spindle(convey gear box and non-polar gearbox), it works with front and back clamping board, which guarantee the convey steady, and improve efficiency and brightness of glass edge.
3.all parts are touching water made by stainless steel or water proof aluminium and stainless steel screws, it won't happen rust for long time. And it is easy to replace and maintiance.
4.this machine can finish grinding, coarse grinding, precision grinding, ploishing of bottom edge of the glass at one time for different size and different thickness. It is easy to adjust the thickness.

Grinding roller details:

No.bottom roller	No.2 bottom roller	No.3 angle chamferroller	No.4 angle chamferroller	No.5 angle chamferroller	No.6 angle chamferroller	No.7 bottom roller	No.8 bottom roller	No.9 bottom roller
80#	150#	240#	S40	240#	S40	240#	S40	S40
Diamond wheel	Diamond wheel	Resin wheel	Water pine wheel	Resin wheel	Water pine wheel	Resin wheel	Water pine wheel	Water pine wheel

Parameters:

Quantity of motors	9pcs
Feeding speeds	0.5-7m/min
Minimum grinding size	60mmx60mm
Thickness of the processed glass	3-25mm
Power	19.5kw
Chamfer width of glass	3~5mm
Glass parallel error	±0.2mm/m
Error in chamfer width of glass	±0.2mm/m
Diagonal error of glass	±0.3mm/
Width error	±0.2mm/
Maximum bottom grinding	3mm
Table height	750mm
Voltage	380V/50 Hz
External dimension	6800mmx1000mmx2500mm
Packing size	3500mmx1200mmx1500mm
Weight	3000kg




FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
