• Model NO.：Ljd-550
• Input Voltage：380V 50Hz
• Input Power：4.0kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：100L,Min
• Cutting Length：100~3500mm
• Cutting Height：≤175mm
• Cutting Width：≤350mm
• Cutting Angle：+22.5°;~-22.5°;
• Saw Feeding Speed：0~3m,Min
• Saw Blade Standard：550*4.4-30*Z120
• Overall Dimension：1100×1500×1800mm
• Transport Package：Wooden Box
• Specification：1100*1500*1800mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：20 Window Per Day

Basic Info.

Model NO. Ljd-550 Input Voltage 380V 50Hz Input Power 4.0kw Air Pressure 0.5~0.8MPa Air Consumption 100L/Min Cutting Length 100~3500mm Cutting Height ≤175mm Cutting Width ≤350mm Cutting Angle +22.5°;~-22.5°; Saw Feeding Speed 0~3m/Min Saw Blade Standard 550*4.4-30*Z120 Overall Dimension 1100×1500×1800mm Transport Package Wooden Box Specification 1100*1500*1800mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 20 Window Per Day

Product Description

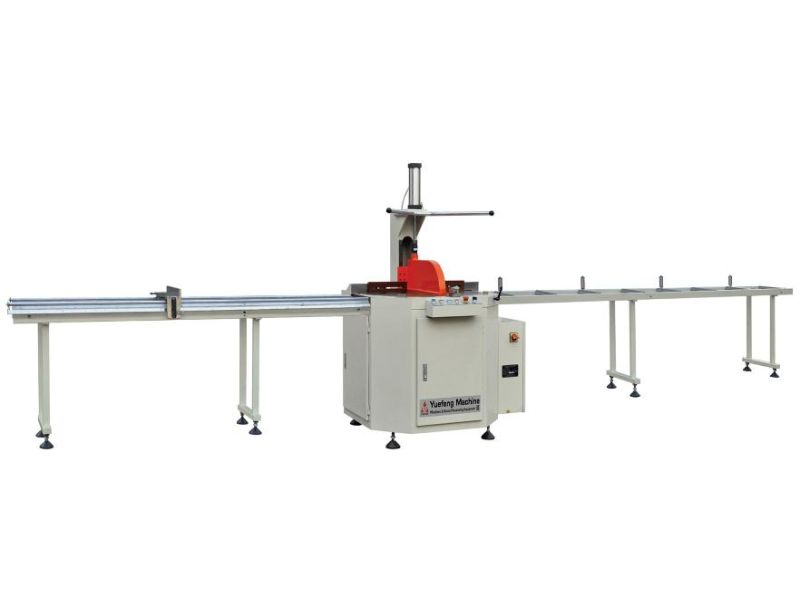

Arbitrary Angle Single Mitre Saw aluminum profile machine

                                                                               1.This machine is mainly used for cutting aluminum profiles between 22.5°~90°~-22.5°.
2.It can work on industrial aluminum alloy profiles, curtain wall profiles and aluminum window profiles.
3.Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
4.Saw blade feeding system adopts imported linear guide kinematic pair, results high accuracy.
5.Intergrated design for clamping and protecting guards results convenience and safety.Technical Parameter:

Model	LJD-550
Input voltage	380V 50Hz
Input power	4.0Kw
Air pressure	0.5~0.8MPa
Air consumption	100L/min
Spindle speed	3200r/min
Cutting length	100~3500mm
Cutting width	≤350mm
Cutting height	≤175mm
Cutting angle	+22.5°~-22.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ550×4.4×φ30×Z120
Overall dimension	1100×1500×1800mm




FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
