• Model NO.：QTJ4-40
• Customized：Customized
• Automatic Grade：Semiautomatic
• Type：Vibration Molding
• Colour：According to Your Demand
• Price：Cheapest
• Motor：Siemens
• Brick Raw Material：Clay, Soil Cement.Sand
• Transport Package：Nude Packing or as Your Demands
• Specification：CE SGS ISO
• Trademark：HENRY
• Origin：China(Mainland) Shandong Linyi
• HS Code：8474802000
• Production Capacity：360-400PCS,Per Hour
• Package size per unit product：154.00cm * 111.00cm * 216.00cm
• Gross weight per unit product：1290.000kg

Main specification and technical parameters
Overall size
1580(L)×1100(W)×2100(H)mm
Shaping cycle
40-45 seconds
Pallet size
850x550x25mm (bamboo)
850x550x20mm (bamboo)
Vibration frequency
2800 r.pm
Upper vibrator
2.2KW
Nether vibrator
4.4kw
Electricity
380V/220V/ (adjustable)
Total weight
1500 KGS

Advantages of QTJ4-40 hollow block making machine
                                                                                                                                                                                                          The machine is on the basis of original concrete block machine, with technologcal innovation and  development. It has rational design, excellent performance,  and is equipped with powerful  vibration
motor.
          The block is of good quality,  large density and high strength. The machine used on the push
mode, and automatic scraper, convenient and  flexible operation,  and its performance can be
comparable with the large-scale equipment.
         Controller box controlling ,with less mistake operation.

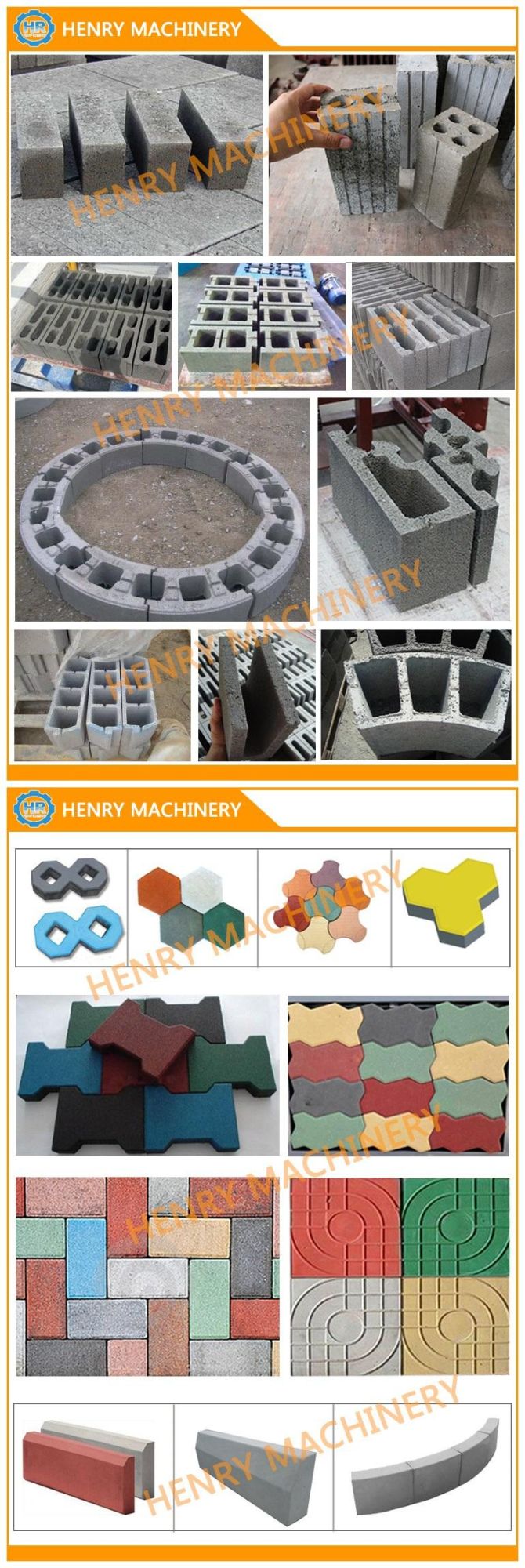

 About bricks

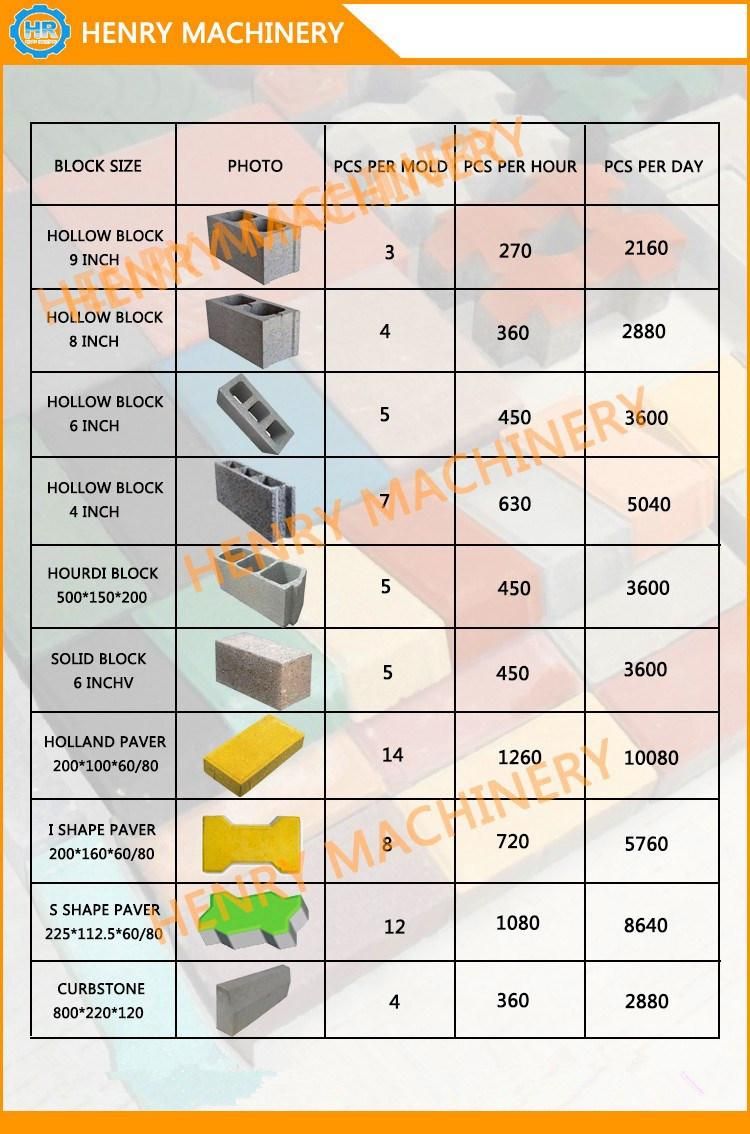

Capacity Table


Size	Pcs per Mould	Pcs per Hour
400*225*225mm	3 pcs per Mould	270pcs per Hour
400*200*200mm	4 pcs per Mould	360pcs per Hour
400*150*200mm	5 pcs per Mould	400pcs per Hour
400*100*200mm	7 pcs per Mould	560pcs per Hour
500*150*200mm	3 pcs per Mould	240pcs per Hour
240*115*53mm	26 pcs per Mould	2080pcs per Hour
225*112.5*60mm	12pcs per Mould	960pcs per Hour
200*100*60mm	16pcs per Mould	1048pcs per Hour

Material Ratio (take 400*200*200mm block as an example)


Block Strength(Mpa)	Cement (kg)	Sand and Stone (kg)	Quantity( 400*200*200)
7.5Mpa	100kg	1700kg	120pcs
10.5Mpa	100kg	1250kg	90pcs
15Mpa	100kg	1025kg	75pcs
22.5Mpa	100kg	800kg	60pcs
30Mpa	100kg	605kg	47pcs

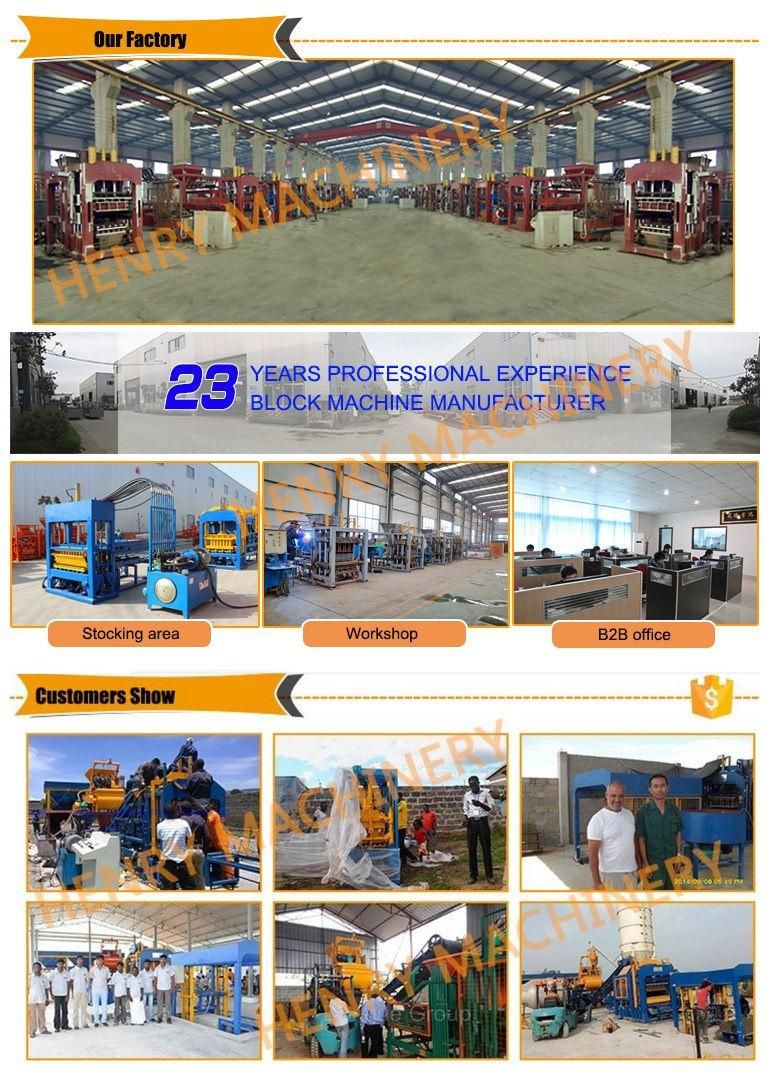

welcome to our company


       Henry Industrial Co., Ltd has been committed to designer, manufacturer, saler of
construction machinery ,has the domestic advanced equipments, super professional skills. With over 23 years of experience, we produce a wide range of products like hollow block
machine, soil brick machine, interlocking brick machine,paving machine, crusher, mixer,
block mould and paving mould.
     Among the same trade, the company took the lead in wining the ISO9001 and ISO14001environment management system certificate, CE certificate, the"China Well-Known
Trademark ", and "High and New Tech enterprise certificate" Our products have been well
sold to hundreds of countries and regions such as Europe, America, Africa, the Middle
east, Southeast Asia, etc, winning the high reputation of customers from domestic and
overseas.now has 3 offices in foreign countries.
     Currently, we have perfected design of the machines, enhanced  the performance of themachine, improve the production process of the machine.and in price we made a
substantial adjustment. Our R&D team develops new designs every two months. I believe
that your customers will be always satisfied with our products and designs.



Our Service

          we have go big after sale service  team , they are all the experience technician , over 20 workers
have the passport , they all have the oversea experience. So we not only have good service
in the pre service , we also think highly of the after sale service.


(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and
the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can Make invitation letter
for you.
(5) Introduce the company file, product categories and production process.

(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time

(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer  training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
