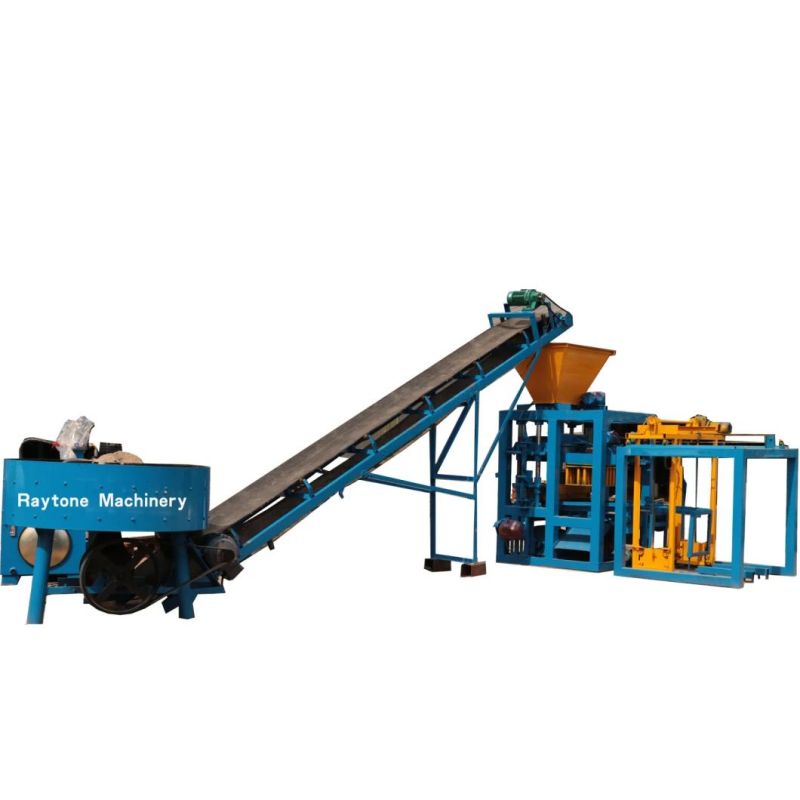

Qt4-24 Semi Automatic Hollow Solid Type Block Making Machine

Linyi Raytone Machinery Imp&Exp Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Certification：CE, ISO
  • Customized：Non-Customized
  • Automatic Grade：Semiautomatic
  • Type：Hydraulic Shock

Base Info

  • Model NO.：qt4-24
  • Moulding Period：20-30 S
  • Machine Weight：3t
  • Voltage：380V,415V
  • Machine Power：22.5kw
  • Standard Productivity：3000 Pieces Per Day
  • Bamboo Pallet：850*550*25mm
  • Transport Package：Suitable for Sea Transportation
  • Specification：2060*1730*2580mm
  • Trademark：raytone
  • Origin：Linyi, China
  • HS Code：84748090
  • Production Capacity：15 Set ,Month

Description

Qt4-24 Semi Automatic Hollow Solid Type Block Making MachinePower: 1.5 KW
Type: Chain type
Belt width: 400mm
Length: 6 M;
Client can also choose 7 meters or 8 Meters length belt conveying machine as per the land area.

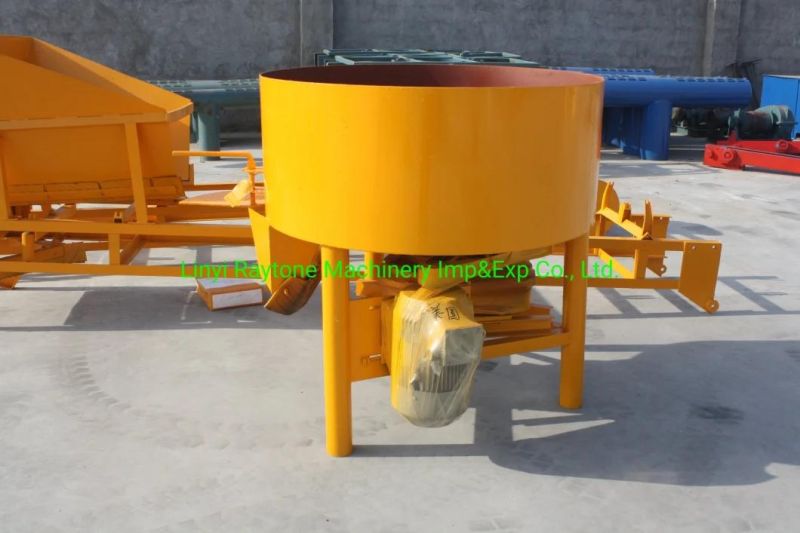

  Diameter 1.2 M
Power: 7.5-4KW or 5.5-6KW
Input : 500L
Output: 350L
Dimension: 1.2*1.2*1.4 M
Weight: 350KG
 Qt4-24 Semi Automatic Hollow Solid Type Block Making Machine Qt4-24 Semi Automatic Hollow Solid Type Block Making MachinePower: 13.45KW
Raw materials discharging motor: 0.75KW
Bottom Vibration Motor 3KW*2
Upper Vibration Motor 2.2KW
JQ350 Reducer
Mould lifting Motor: 3KW
Top Mould Push-Pull motor: 0.75KW
Block Conveying out motor:0.75 KW
Dimension: 2050*1900*2650mm
Weight:1800KG

7.Why Choose RAYTONE QT4-24 Block Machine?
RAYTONE block machine manufacture is selling this QT4-24 block machine at a competitive price;
RAYTONE block machine manufacture has many experience of making this model brick machine;

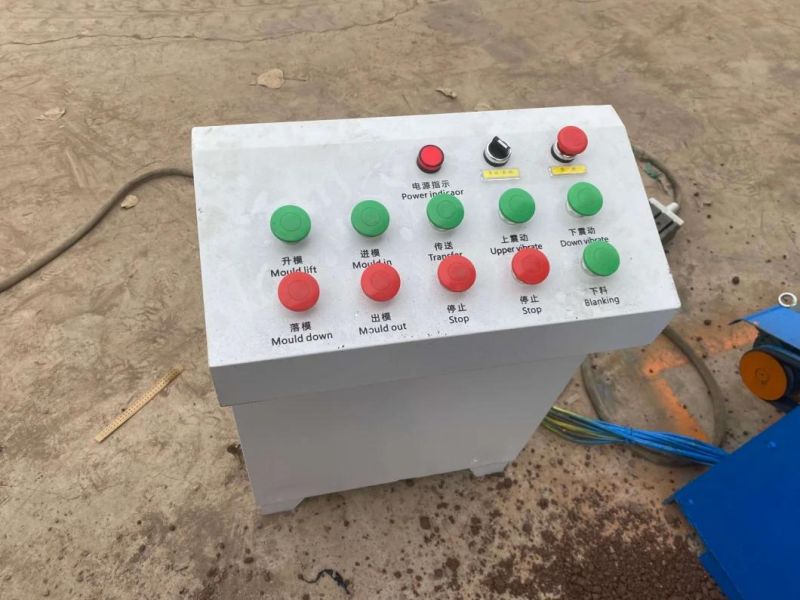

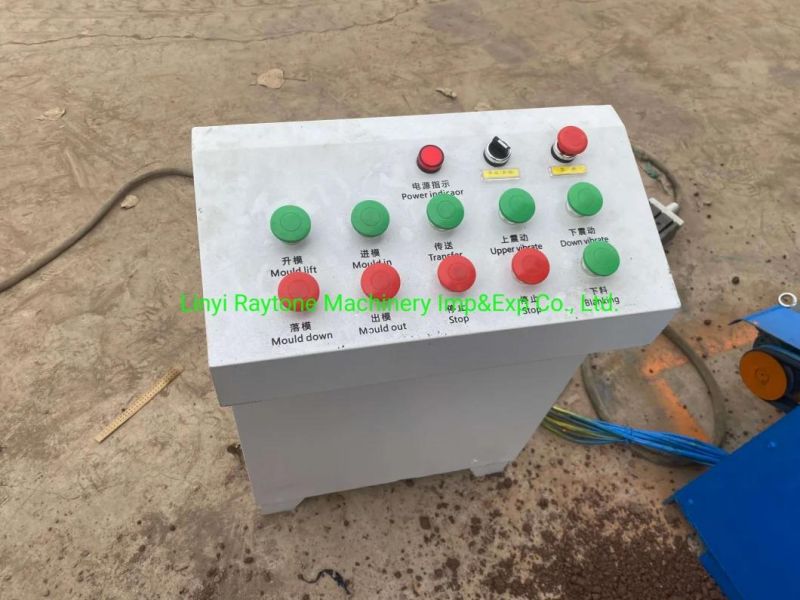

RAYTONE is using better control system on the electric panel, this makes production more smooth and fast.
RAYTONE has many experience on this QT4-24 block machine trouble shooting service to the clients.
Qt4-24 Semi Automatic Hollow Solid Type Block Making MachineQt4-24 Semi Automatic Hollow Solid Type Block Making MachineQt4-24 Semi Automatic Hollow Solid Type Block Making MachineQt4-24 Semi Automatic Hollow Solid Type Block Making Machine
8.FAQ
(1) How many workers are needed for this QT4-24 block machine line?
Simple QT4-24 block machine line: 2 workers to feed raw materials into the pan mixer by manual, and control the pan mixer; 1 worker operate the host brick machine, 2 workers to transport the produced blocks to curing area; 1 worker waters the blocks for curing; totally 6 workers needed.
QT4-24 Block Machine line with stacking Machine:
1 worker driver the small wheel loader to load raw materials into the pan mixer, and operate the pan mixer; 1 worker operate the host block machine, 1 worker drives electric forklift to carry the produced blocks to curing area, 1 worker waters the blocks for curing, totally 4 workers needed;
Qt4-24 Semi Automatic Hollow Solid Type Block Making Machine

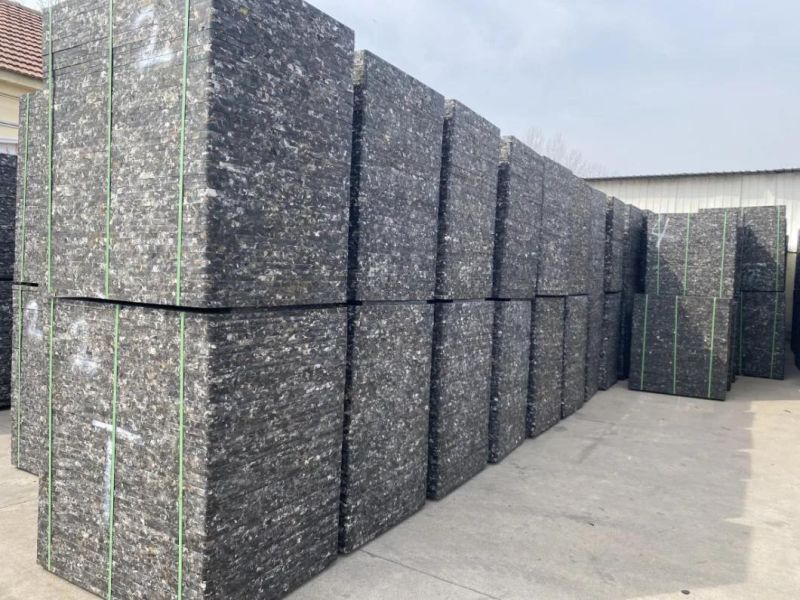

(2) What is the brick pallet size
The pallet size is mainly depending on the machine configuration, if using Stacking machine, the 880*550*22mm size brick pallet is recommended.
If not using stacking machine, the normal size 850*550*20mm size brick pallet is good to use too, this can also save some pallet cost;
Qt4-24 Semi Automatic Hollow Solid Type Block Making Machine
Welcome contact us if you are interested in this machine .
