Block Brick Machine Electric Small

Linyi ShengMing Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：CE, ISO

Base Info

  • Model NO.：QTJ4-24
  • Customized：Customized
  • Automatic Grade：Semiautomatic
  • Type：Vibration Molding
  • Work Method：Vibration Forming
  • Raw Material：Sand, Stone, Cement, Stonedust
  • Block Type：Hollow Concrete Brick Machine
  • Product Name：Manual Concrete Making Machine
  • Name：Semi Automatic Cement Block Machine
  • Products：4PCS,Mould
  • Keywords：Manual Vibration Cement Block Moulding Machine
  • Pallet Size：850*450mm
  • Brick Type：Hollow Brick Concrete Brick Hole Brick
  • Molding Cycle：25-30s
  • After Warranty Service：Video Technical Support
  • Warranty Service：Online Support
  • After-Sales Service Provided：Free Spare Parts
  • Advantage：Hollow Block Making Machine
  • Machine Type：Brick Block Making Machine
  • Transport Package：Shipping by Sea
  • Specification：2600*1900*2400mm
  • Trademark：SHENGMING
  • Origin：China
  • HS Code：8474802000
  • Production Capacity：50set,Month
  • Package size per unit product：180.00cm * 160.00cm * 240.00cm
  • Gross weight per unit product：1000.000kg

Description

Total rated power
 12.35KW
 Block yard area
 50M2
 Daily capacity
 2000-3000 pieces
 Power voltage
 380V/220V AC
 Pallet quantity
 600-700 pieces
 Labor quantity
 2-3 people
 Water consumption
 3-5T/day
 Forming period
 25-30S
 Main featrues:

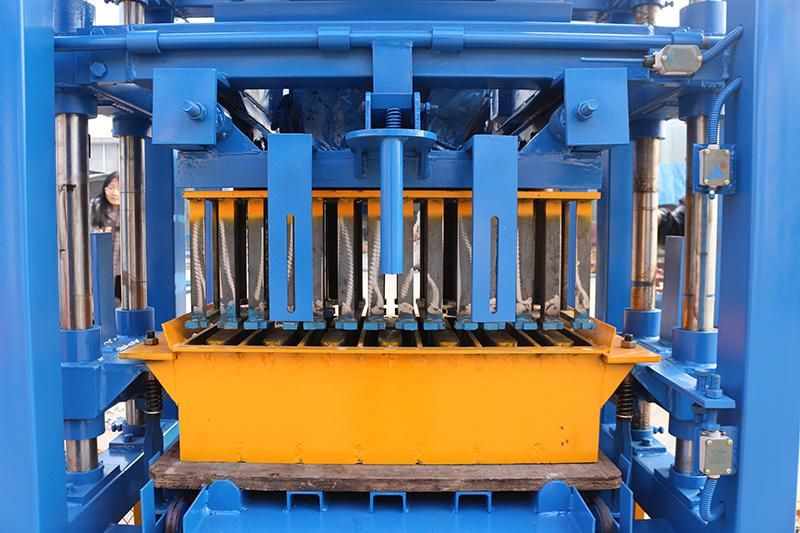

The machine adopts four column guiding design. It is a new semi-automatic brick making machine developed by absorbing the advantages of various small and medium-sized equipment in the past.

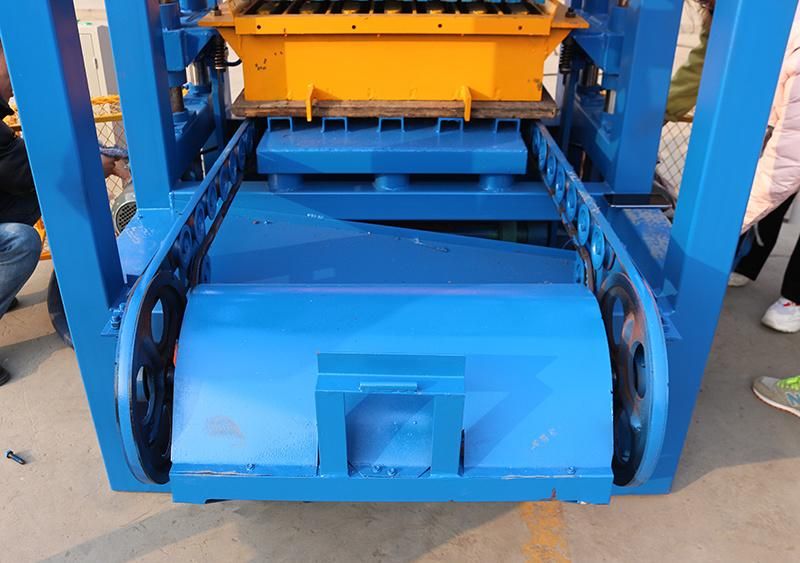

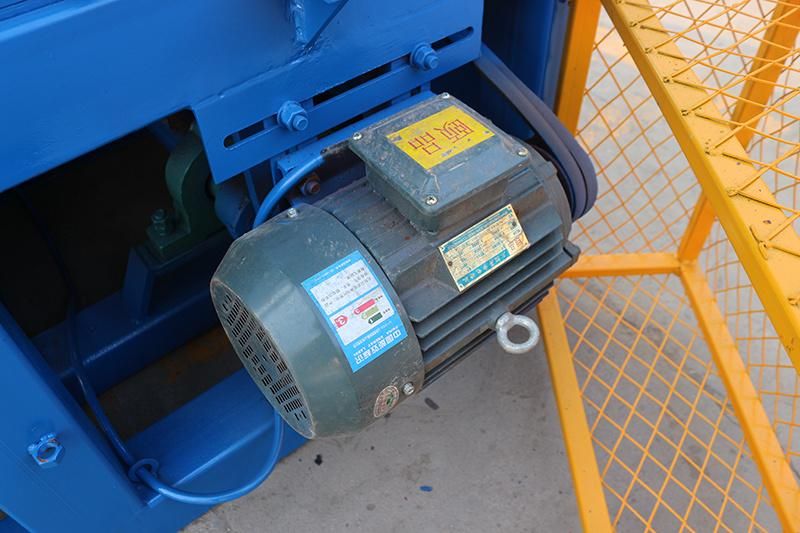

The vibration system is equipped with high-power motor and specially developed vibration box, which greatly improves the excitation force and compactness.
It has one controller cabinet, which makes the button control more convenient. Its automatic material dropping system, automatic push-pull die design and automatic brick discharging system greatly improve the production efficiency.

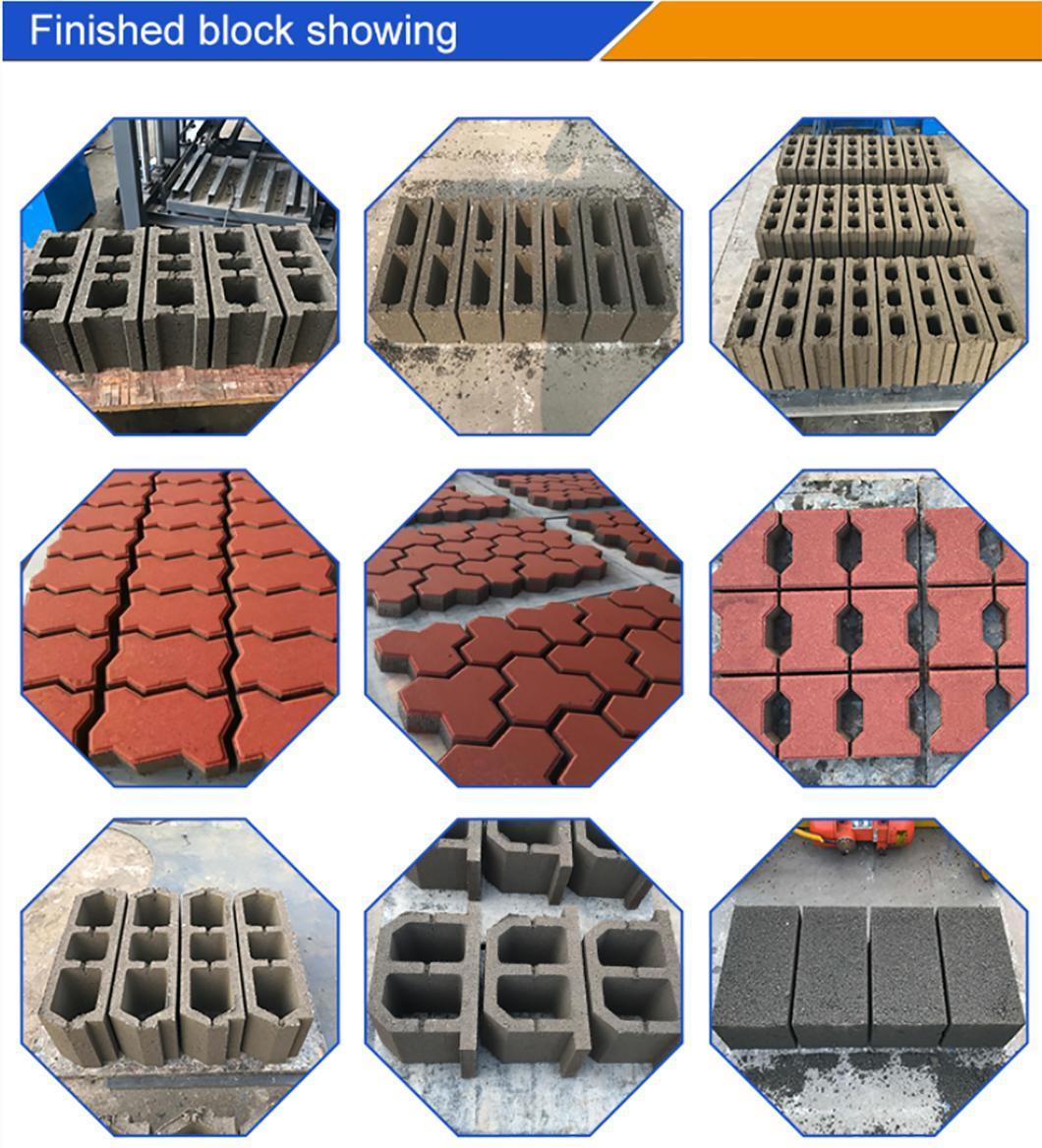

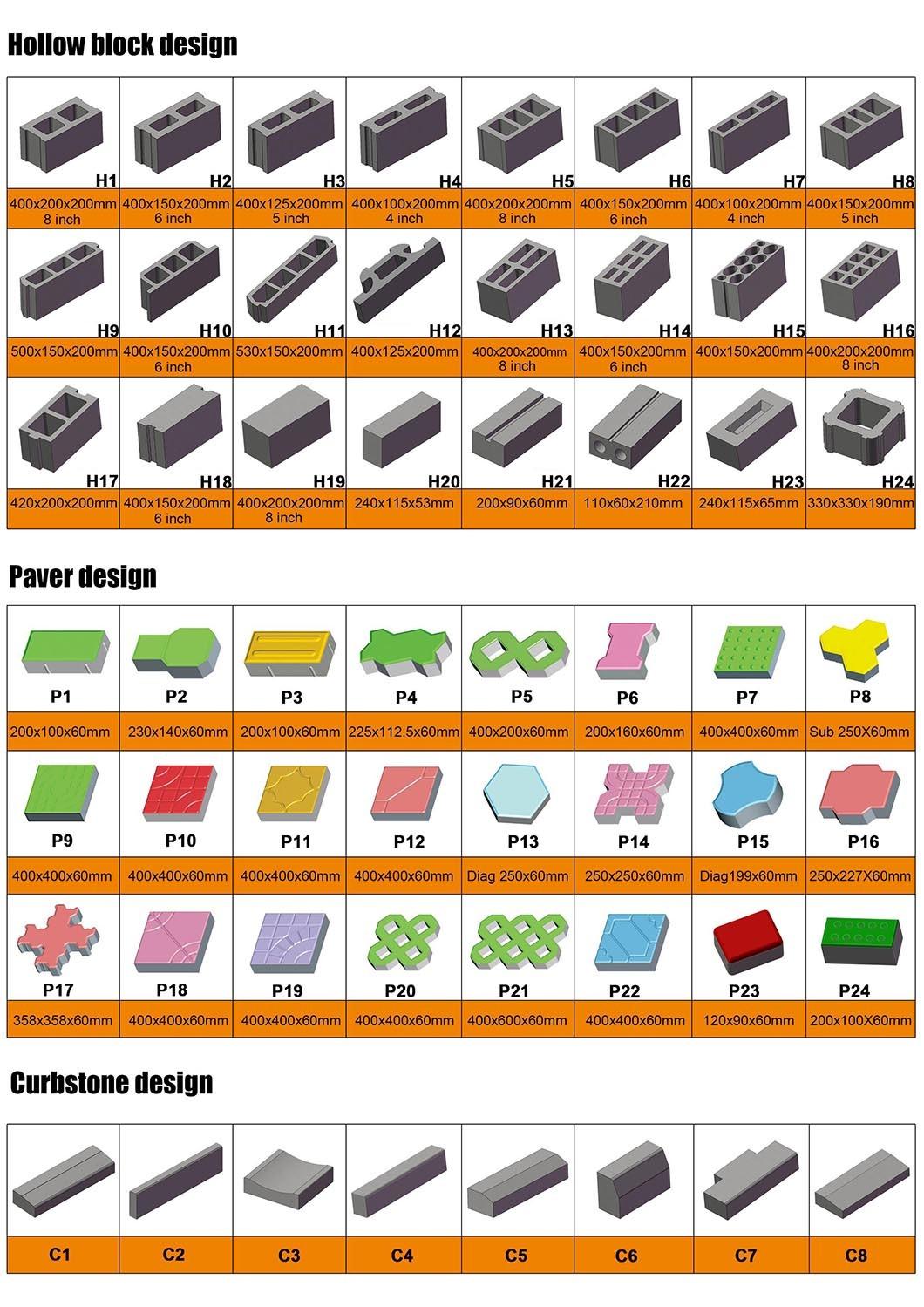

By changing the mold, the equipment can produce all kinds of hollow bricks, solid bricks and non colored tiles, and the practicability is greatly improved.Block Brick Machine Electric SmallBlock Brick Machine Electric SmallBlock Brick Machine Electric Small Size (LXWXH)mm
 Pieces/mold
 Pieces/Hour
 Pieces/Day
 Hollow block
400x200x200
 44803840Hollow block
400x150x200
 56004800Hollow block
400x100x200
 76505200Solid block
400x200x200
 44803840Paver
200x100x60
 107205760Features:
1. Double door design, 4-column guide.
2. Special vibration box design, large exciting force and fast forming speed
3. Push button control of control cabinet for convenient operation
4. Automatic unloading, automatic push-pull die and automatic brick discharging greatly improve the production efficiency Block Brick Machine Electric Small   Block Brick Machine Electric SmallQTJ4-24 block brick machine electric small Block Brick Machine Electric Small  Block Brick Machine Electric Small  Block Brick Machine Electric Small  Block Brick Machine Electric Small  Block Brick Machine Electric Small  Block Brick Machine Electric Small (1) Q: what is the material for this machine ?
A: you can use concrete material, plus a little cement.
(2) Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
(3) Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
(4) Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.
