Ykcx 100d&300d 20-300mm Hydroforming Hose/Bellow Making Machine with Pitch Closing & Compressing Device^

Comflex Industrial Co., Ltd.
  • After-sales Service：Online Video Guidence
  • Warranty：One Year
  • Pipe Material：Stainless Steel
  • Condition：New
  • Customized：Customized
  • Theory：Inverter

Base Info

  • Model NO.：COMFLEX
  • Application：Industry
  • Type：Pipe Production Line
  • Width of Stripe：100-471mm
  • Pitch Distance：2.5-8mm
  • Length：300mm-5000mm
  • Strip Thickness：0.15-0.3mm
  • Wall Thickness：0.3-0.6mm
  • Product Name：Bellow Making Machine with Pitch Closing Device
  • Lead Time：90 Days After Receiving Deposit
  • Size Range：20-300mm
  • Transport Package：Standard Seaworthy Package
  • Specification：ISO9001
  • Trademark：Comflex
  • Origin：Jiangsu, China
  • HS Code：84819010
  • Production Capacity：5000 PCS Per Year

Description

Hydraulic Hose Making MachineMachine Type No.HLT-H-100Technical DataApplication of the hose: water, oil, steam
Size range: DN25 up to DN100
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700Packing details Polywood box and standard palletMOQ1 setWarranty1 yearPayment termsT/T, L/C, D/P, Western union Hydraulic Hose Making MachineMachine Type No.HLT-H-150Technical DataApplication of the hose: water, oil, steam
Size range: DN32 up to DN150
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700Packing details Polywood box and standard palletMOQ1 setWarranty1 yearPayment termsT/T, L/C, D/P, Western union
DNActual IDWall thickness
(mm)		Width of s.s. strips(mm)Height of convolutionPitch distance
(mm)
DN3231.50.310075
DN4039.50.312586
DN5049.70.315787
DN6564.70.320498
DN8079.50.4251109
DN10099.50.53141110
DN125124.60.53931312
DN150149.40.64711515

Ykcx 100d&300d 20-300mm Hydroforming Hose/Bellow Making Machine with Pitch Closing & Compressing Device^

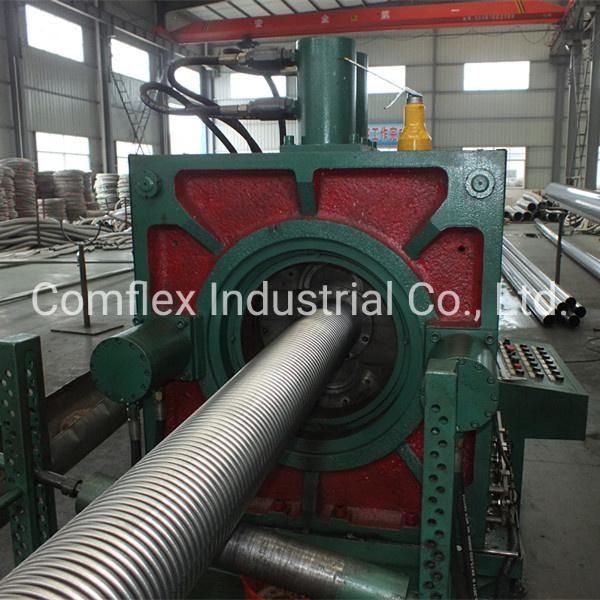

YKCX150A bellow forming machine prepared for Turkey Client.
Ykcx 100d&300d 20-300mm Hydroforming Hose/Bellow Making Machine with Pitch Closing & Compressing Device^

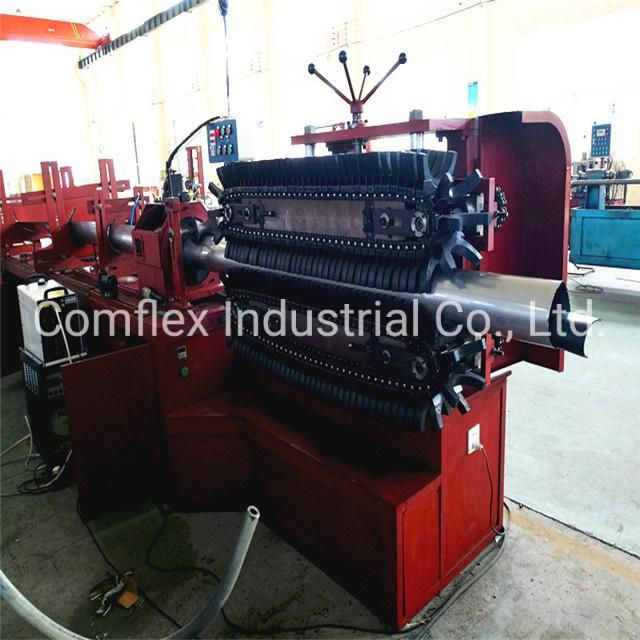

Tube Mill/Tube Welding Machine
Ykcx 100d&300d 20-300mm Hydroforming Hose/Bellow Making Machine with Pitch Closing & Compressing Device^

Tubing Welding Machine
Ykcx 100d&300d 20-300mm Hydroforming Hose/Bellow Making Machine with Pitch Closing & Compressing Device^

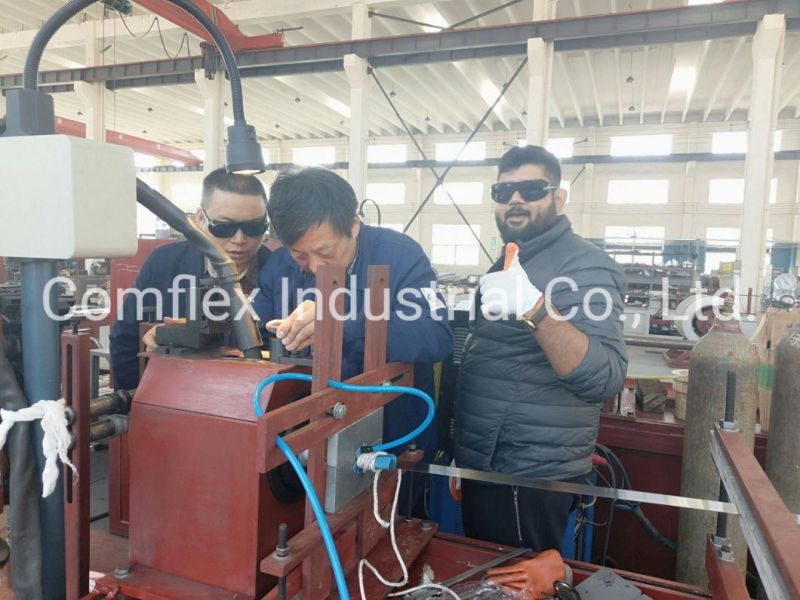

Provide Tube Mill Training for customers
Ykcx 100d&300d 20-300mm Hydroforming Hose/Bellow Making Machine with Pitch Closing & Compressing Device^

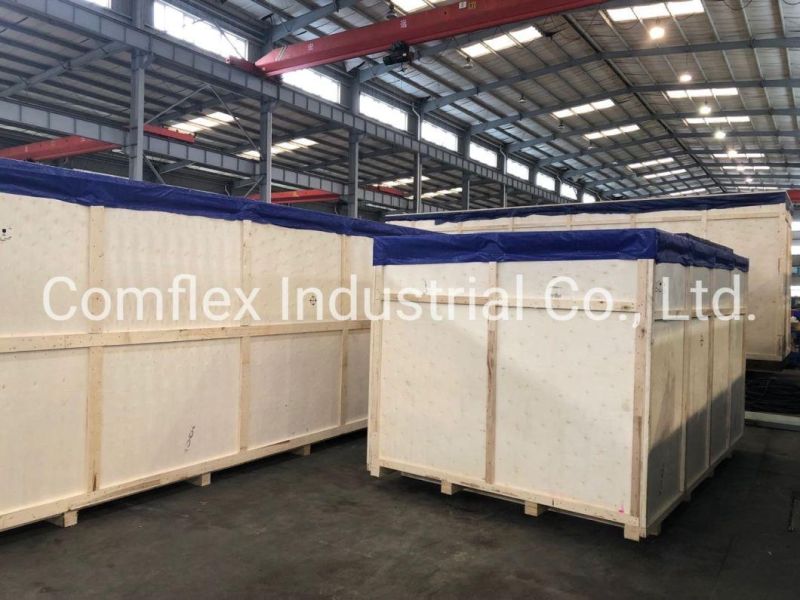

Machine Delivery&Package
Ykcx 100d&300d 20-300mm Hydroforming Hose/Bellow Making Machine with Pitch Closing & Compressing Device^


FAQ

Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience

Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines

Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65

Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well


We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
