Aluminum Window CNC Drilling and Milling Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：CNC
  • Voltage：380V
  • Model：Lzx-CNC-3500

Base Info

  • Model NO.：Lzx-CNC-3500
  • Input Voltage：380V 50Hz
  • Input Power：8.5kw
  • Spindle Power：5.5kw
  • Spindle Speed：18000r,Min
  • X-Axes Travel：3550mm
  • X-Speed：0~60m,Min
  • Max Loading Profile Length：3100mm
  • Y-Axes Travel：300mm
  • Horizontal Max Width：280mm
  • Y-Speed：0~30m,Min
  • Z-Axes Travel：240mm
  • Three Side Processing Height：120mm
  • Single Profile Processing Height：200mm
  • Z-Speed：0~30m,Min
  • Transport Package：Wooden Box
  • Specification：4000*1600*2100mm
  • Trademark：YueFeng
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：40 Window Per Day

Description

Controlling systemSYNTECHFrenquency TransformerDelta 5.5kwSolinoid ValveAIRTECHElectronicsSCHNEIDERAll PipeEsun(china-italy brand)All screwsJINYI (TAIWAN)SpindleRUNDEWORDSServodriverYASKAWAServomotor YASKAWA  Conveyerby grinded gear rack, TAIWAN TPI

Detail Parts of CNC Aluminum Window Machine for Drilling Milling Holes Slots

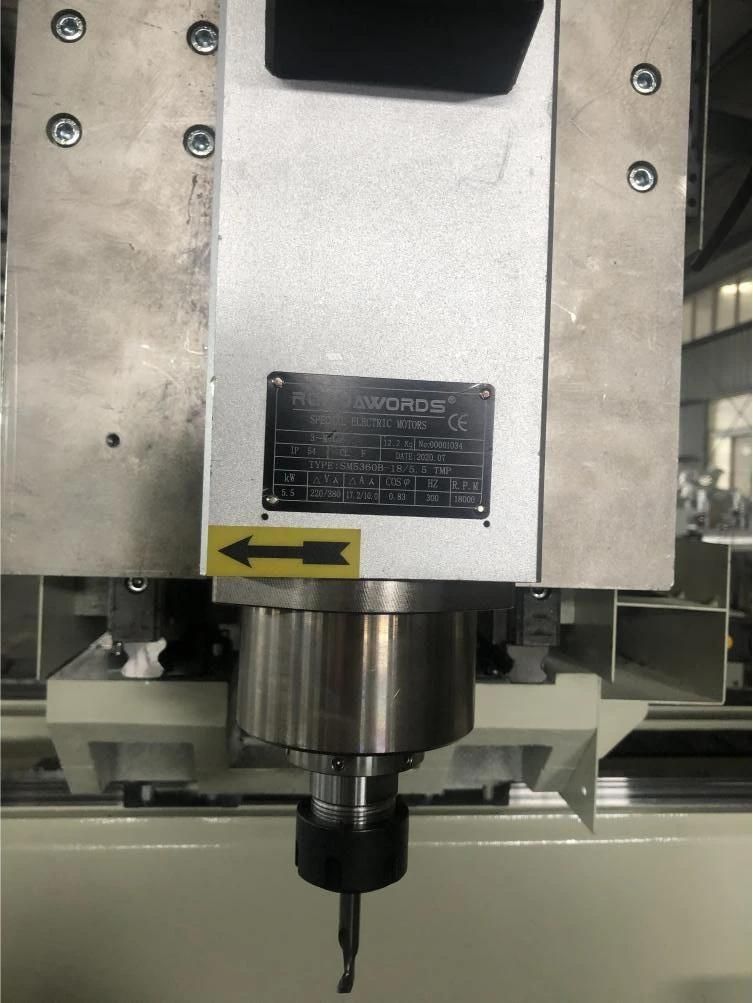

1.RUNDAWORDS SPINDLEAluminum Window CNC Drilling and Milling Machine

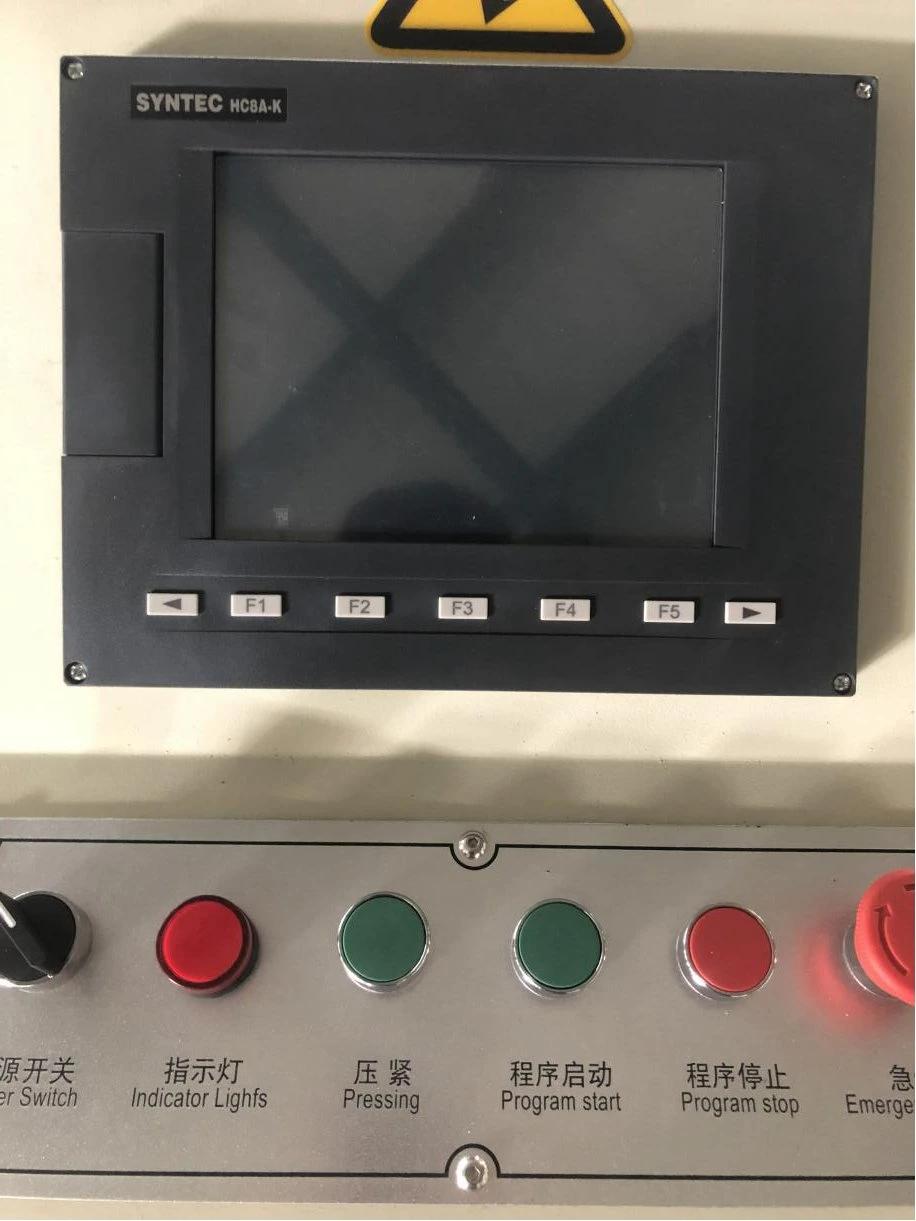

2.SYNTEC SYSTEM WITH INLELLIGENCE INTERFACE SCREEN AND SCHNEIDER SWITCH
Aluminum Window CNC Drilling and Milling Machine

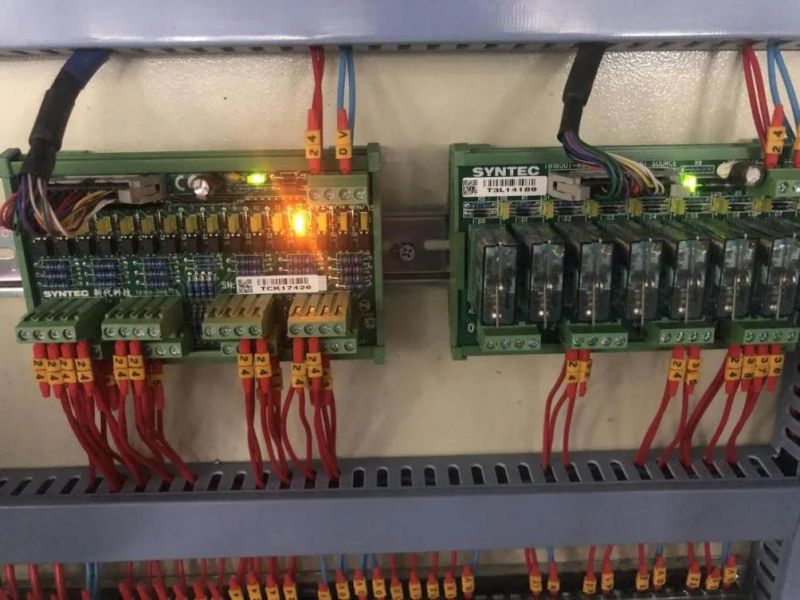

3.DELTA FRENQUENCY TRANSFORMER AND SYTECH PLC
Aluminum Window CNC Drilling and Milling Machine

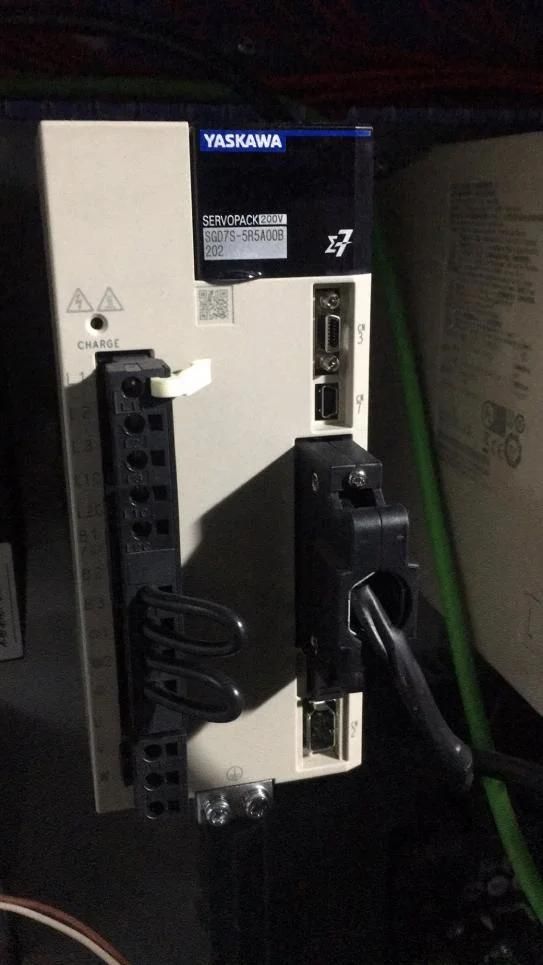

4.YASKAWA SERVODRIVER
Aluminum Window CNC Drilling and Milling Machine

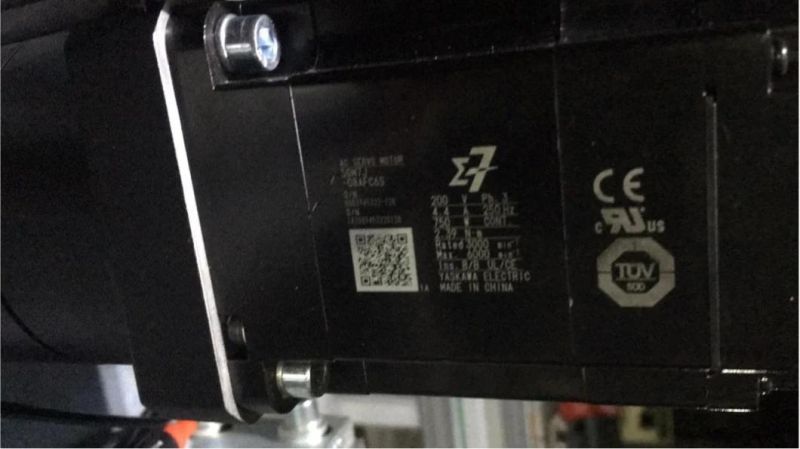

5.YASKAWA SERVOMOTOR
Aluminum Window CNC Drilling and Milling Machine

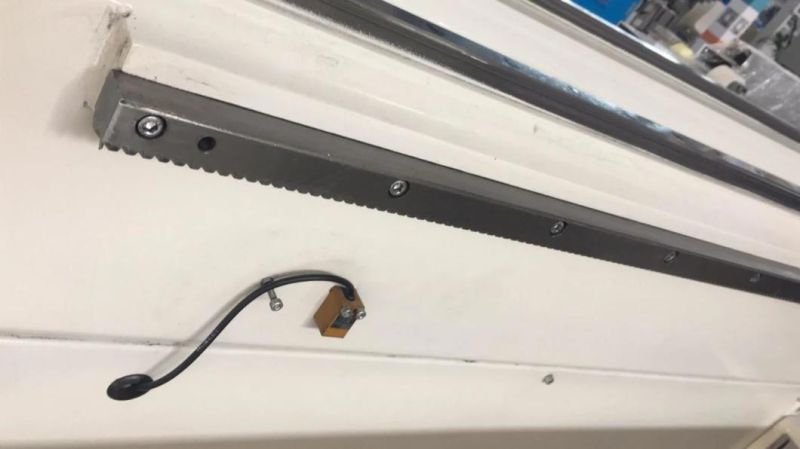

6.TAIWAN YYC GEAR RACK
Aluminum Window CNC Drilling and Milling Machine

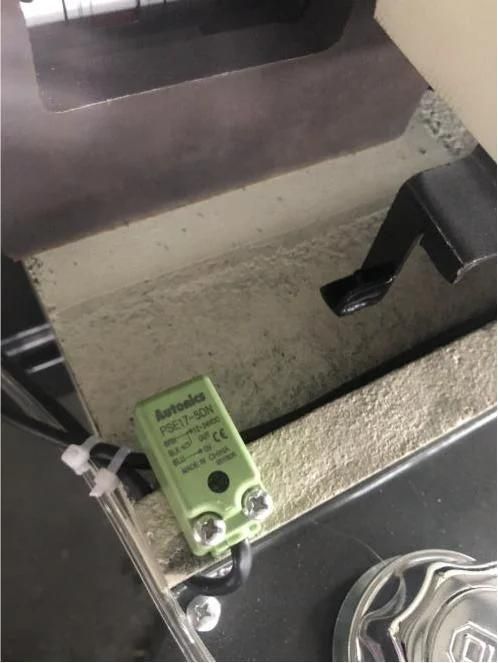

7.AUTONICS SENSOR
Aluminum Window CNC Drilling and Milling Machine

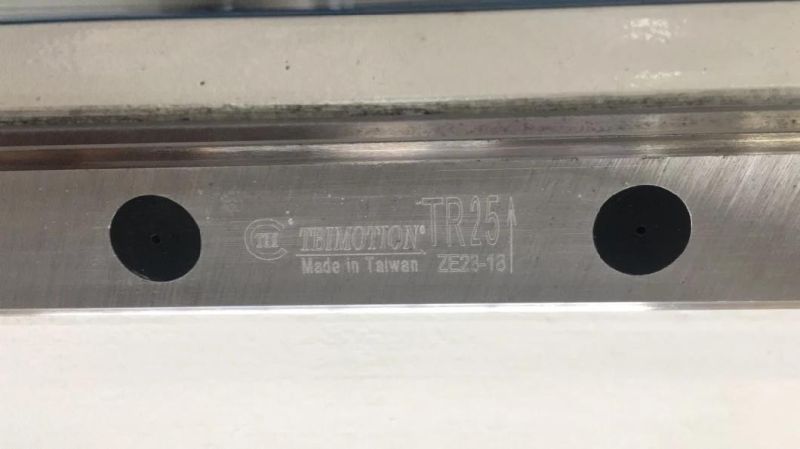

8.TAIWAN TBI LINEAR GUIDE
Aluminum Window CNC Drilling and Milling Machine

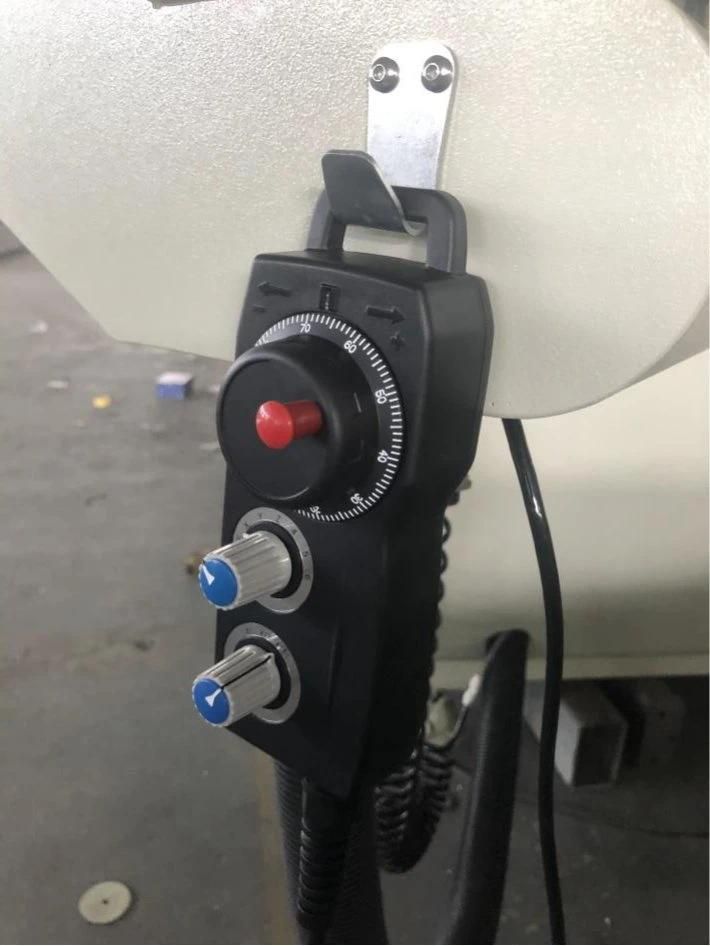

9.MICRO ADJUSTMENT HANDLE WHEEL
Aluminum Window CNC Drilling and Milling Machine

Please contact us for more machine details

Aluminum Window CNC Drilling and Milling MachineFAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
