Metal Channel Stud and Track Roll Forming Machine

Cangzhou Zhongheng Machine Manufacture Co., Ltd.
  • Warranty：1 Year
  • Product Type：Roll Forming Machine
  • Automatic Grade：Automatic
  • Power Source：Electric
  • Screw Design：Double-Screw
  • Certification：CE, ISO

Base Info

  • Model NO.：ZH 75*50
  • Condition：New
  • Customized：Customized
  • Application：Ceilings
  • Capacity：25-45m,Min
  • Voltage：380V 50Hz 3phases
  • Thickness of Material：0.3mm-0.9mm
  • Weight：3200kg
  • Key Selling Points：High-Accuracy
  • Dimension：4700*1600*2480mm
  • Servo Motor：2.3kw
  • Main Motor：5.5kw
  • Roller Material：Cr12
  • Forming Stations：12
  • PLC Brand：Xinjie
  • Transmission：Gear
  • Thickness of Structure：30mm
  • Shaft Diameter：50mm
  • Transport Package：with Water Proof Plastic Film Cover
  • Specification：60*28
  • Trademark：ZHONGHENG
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：50 Sets,Months

Description

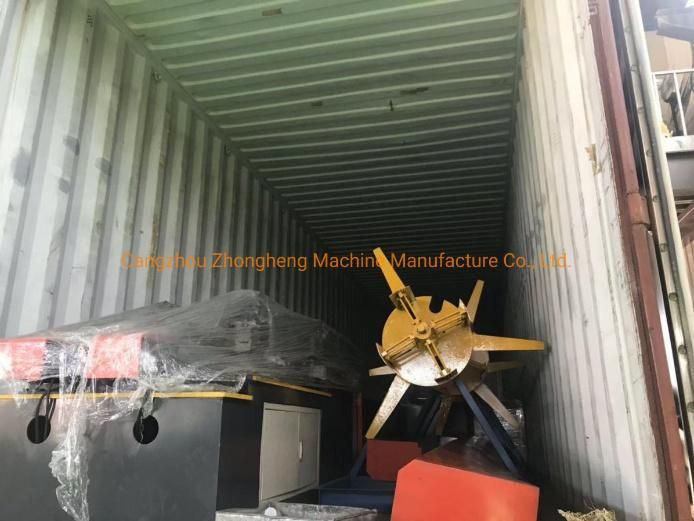

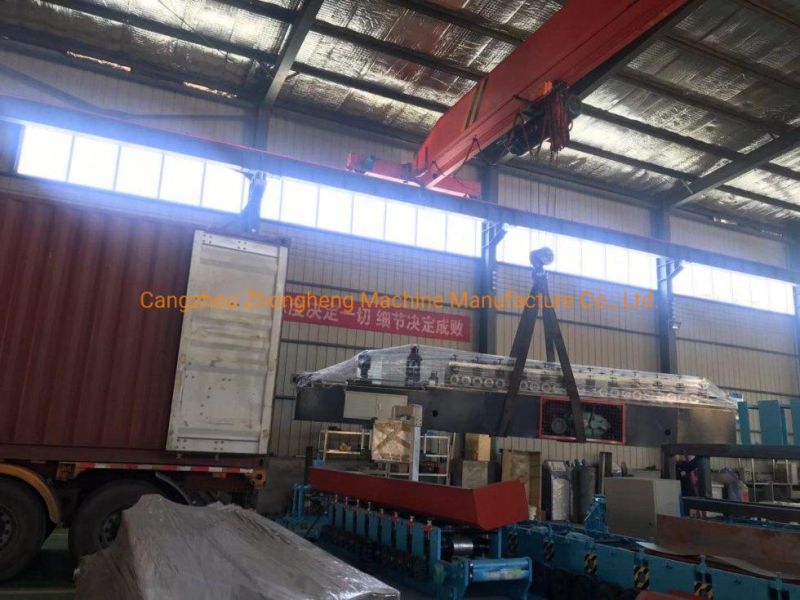

Suitable materialPPGI  GI  ALCoil Width as customThickness0.3-0.5mm as customPower380V 50Hz 3Phase  as customMain motor5.5KW SiemensHydraulic motor4KW SiemensSpeed45m/minForming stations12 rows Roller materialCr12 steel with vacuum heat treatment HRC57°-60°Shaft material45# steel quenched and temperedShaft diameter50mmDriveGearScreem HMI Delta , Touch ScreenPLC Delta , SiemensProcessing precisionWithin 1mmSize 4.6m×1.5m×1.2mWeight2.5TPackage and shipment
