• Model NO.：HLT
• Application of The Hose：Egr Tube
• Size Range：Dn15-65
• Wall Thickness：Customized Acceptable
• Tooling Changing Time：15 Minutes
• Loading Time：10-15 Seconds
• Unloading Time：3 Seconds
• One Convolution：10 Seconds
• Control Method：PLC
• Warranty：1 Year
• Main Hydraulic Components：Taiwan Kampass
• Transport Package：Standard Seaworthy & Strong Package
• Specification：ISO9001
• Trademark：Comflex
• Origin：China Mainland
• HS Code：830710000
• Production Capacity：as Requested

Basic Info.

Model NO. HLT Application of The Hose Egr Tube Size Range Dn15-65 Wall Thickness Customized Acceptable Tooling Changing Time 15 Minutes Loading Time 10-15 Seconds Unloading Time 3 Seconds One Convolution 10 Seconds Control Method PLC Warranty 1 Year Main Hydraulic Components Taiwan Kampass Transport Package Standard Seaworthy & Strong Package Specification ISO9001 Trademark Comflex Origin China Mainland HS Code 830710000 Production Capacity as Requested

Product Description

Technical parameter


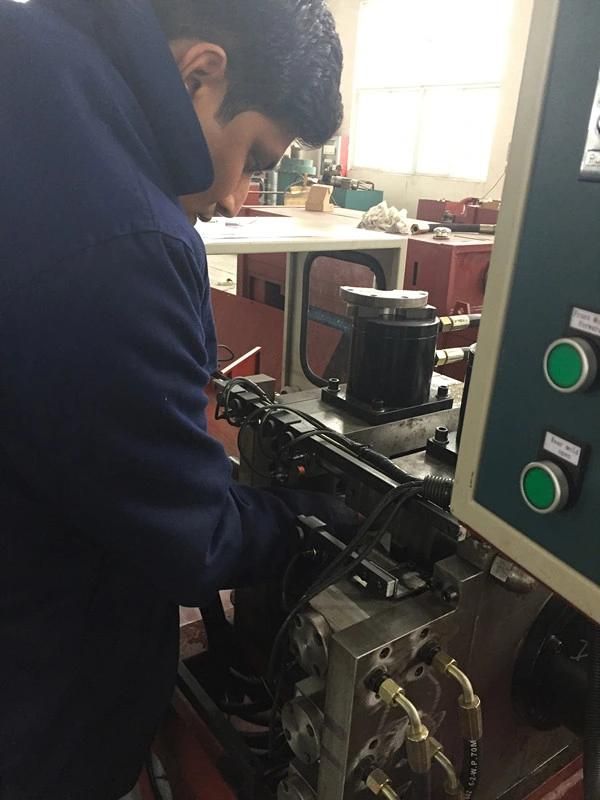

YKCX-65D Exhaust bellow forming machine


A. Operating principle:

This machine uses emulsion as the medium. Under the common action of the hydraulic control system and the mould, the single or double layer stainless steel tube will be shaped through the progress of position fixed , bulging and shaping.


B. Technical data:

1. Inner diameter of the bellow: 16-60mm

2. Thickness of the bellow: customized acceptable

3. Toolings/different size changing time is about 15 minutes, tube loading time is about 10-15 seconds, tube unloading time is 3 seconds, 10 seconds for one convolution.

4. Length of tube before forming: L≤1000mm.

  Use feeding cylinder. You can set a fixed length of the tube for pushing. When the machine is set to automatic cycle, step on the foot switch, the feeding cylinder started to push, after reaching the preset size, the machine starts processing and shaping.

5. The system adopts PLC programmable control mode in manual control and automatic control independently. The automatic button is foot switch.

6. The system can setup automatic programs of pipe end feeding and changing the height of convolution on both sides of the bellow.

7. The no. of convolution and no. of band of the forming bellow can be preset through setting up the display of counting the no. of convolutions.

8. Control the length of pipe end through the tail-stock cylinder and proximity switch.

  Length of pipe end≤350mm. The tolerance of the feeding length≤2mm.

9. The locating device ensure the pitch shape to be equal.

  The tolerance of pitch height and pitch distance within the range of level IT18.

10. The main hydraulic components are from Taiwan KAMPASS.

11. The PLC controller is from Thinget made in China. In a single setup, there can be space between two bellows.

12. Power rating: 18.5KW

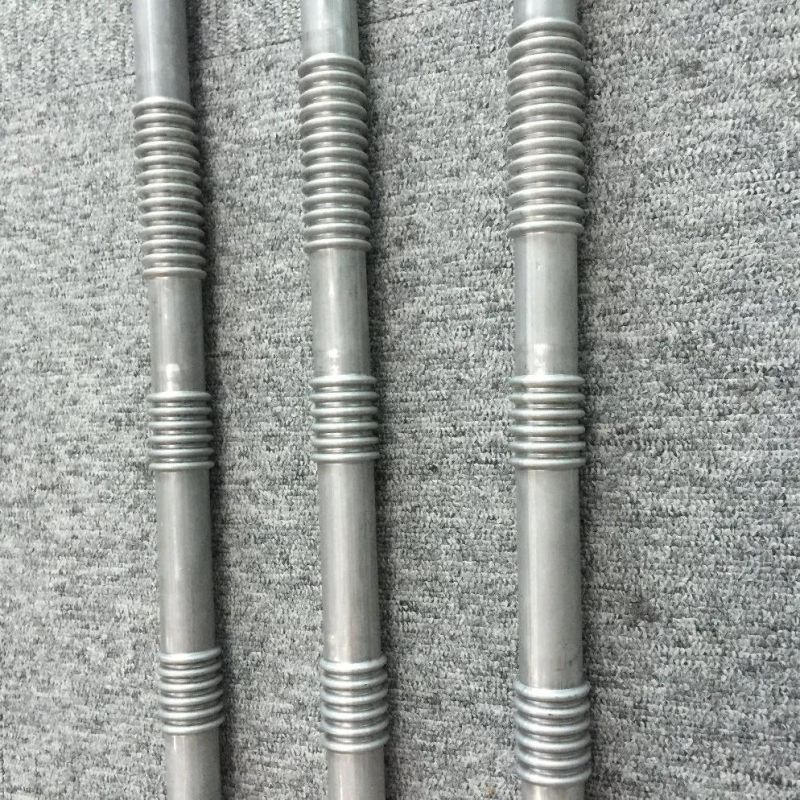

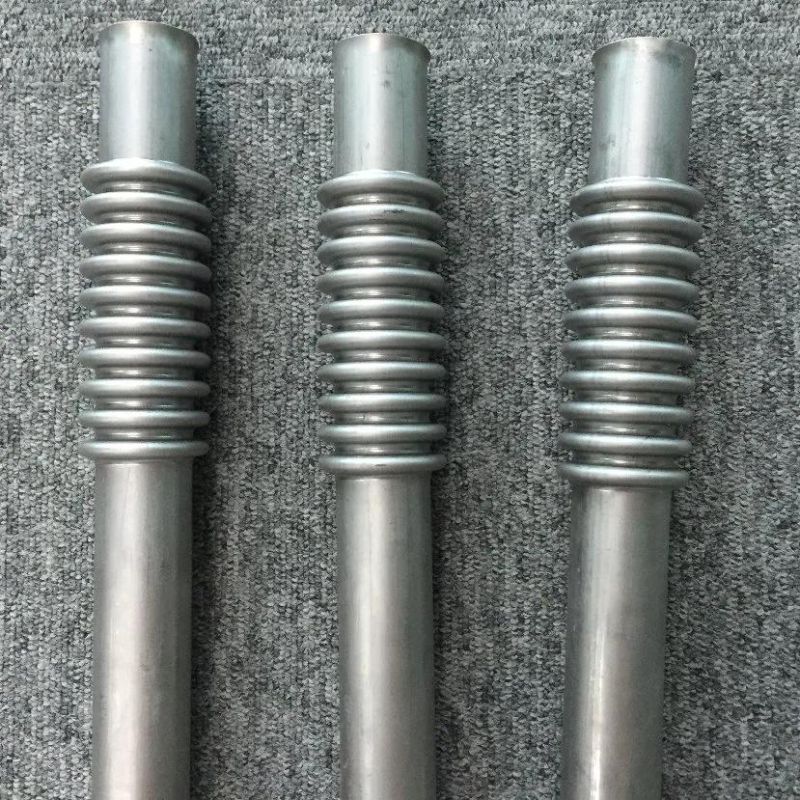

Samples
